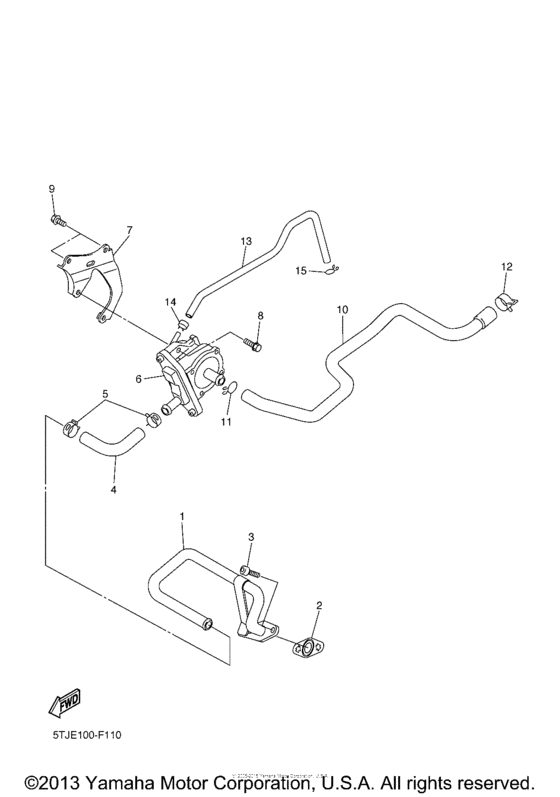

Air induction system Diagram Yamaha WR450F
- Year
- 2011
- Colour
- Deep Purplish Blue Solid E
- Sales region
- USA
- Базовая модель
- WR450FA
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TJ-14871-10-00 Pipe 1 |
5TJ-14871-10-00 |
US $159.08 |
||
|
2
|
2
5TJ-14815-00-00 Gasket |
5TJ-14815-00-00 |
from US $2.98 |
||
|
3
|
3
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
4
|
4
5TJ-14881-10-00 Hose, Bend 1 |
5TJ-14881-10-00 |
from US $79.99 |
||
|
5
|
5
90467-16063-00 Clip |
90467-16063-00 |
from US $1.35 |
||
| replacement | |||||
|
5
|
5
90467-16181-00 Clip |
90467-16181-00 |
from US $1.42 |
||
|
6
|
6
5UM-14803-00-00 Air Induction System Assy |
5UM-14803-00-00 |
US $203.89 |
||
|
7
|
7
5TJ-14834-E0-00 Stay |
5TJ-14834-E0-00 |
US $20.77 |
||
|
8
|
8
90105-06107-00 Bolt, Flange |
90105-06107-00 |
from US $1.81 |
||
|
9
|
9
90105-06105-00 Bolt, Flange |
90105-06105-00 |
from US $1.84 |
||
|
10
|
10
5TJ-14882-10-00 Hose, Bend 2 |
5TJ-14882-10-00 |
US $40.63 |
||
|
11
|
11
90467-140A4-00 Clip |
90467-140A4-00 |
from US $1.70 |
||
|
12
|
12
90467-17089-00 Clip |
90467-17089-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
90467-17128-00 Clip |
90467-17128-00 |
from US $1.28 |
||
|
13
|
13
90445-082K4-00 Hose (L320) |
90445-082K4-00 |
from US $4.68 |
||
| replacement | |||||
|
13
|
13
904-45086-J3-00 Hose (L320) |
904-45086-J3-00 |
from US $4.68 |
||
|
14
|
14
90467-07138-00 Clip |
90467-07138-00 |
from US $1.04 |
||
|
15
|
15
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
15
|
15
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
