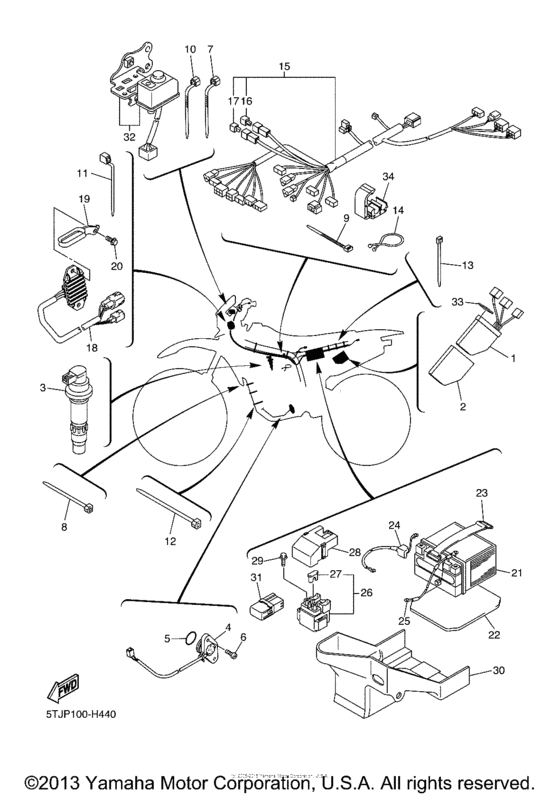

Electrical (1) Diagram Yamaha WR450F
- Year
- 2011
- Colour
- Deep Purplish Blue Solid E
- Sales region
- USA
- Базовая модель
- WR450FA
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TJ-85540-E0-00 C.d.i. Unit Assy |
5TJ-85540-E0-00 |
from US $488.31 |
||
|
2
|
2
5UM-85546-E0-00 Band |
5UM-85546-E0-00 |
from US $14.03 |
||
|
3
|
3
5TA-82310-10-00 Ignition Coil Assy |
5TA-82310-10-00 |
from US $114.80 |
||
|
4
|
4
5TJ-82540-01-00 Neutral Switch Assy |
5TJ-82540-01-00 |
from US $66.04 |
||
| replacement | |||||
|
4
|
4
5TJ-82540-02-00 Neutral Switch Assy |
5TJ-82540-02-00 |
US $85.59 |
||
|
5
|
5
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.94 |
||
|
6
|
6
90154-05022-00 Screw, Bind |
90154-05022-00 |
from US $1.26 |
||
| replacement | |||||
|
6
|
6
98902-05014-00 Screw, Bind |
98902-05014-00 |
from US $1.56 |
||
|
7
|
7
904-64130-77-00 Clamp |
904-64130-77-00 |
from US $1.94 |
||
| replacement | |||||
|
7
|
7
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
8
|
8
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
9
|
9
904-65132-75-00
Clamp
|
904-65132-75-00 |
— | ||
| replacement | |||||
|
9
|
9
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
10
|
10
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
10
|
10
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
11
|
11
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
12
|
12
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
13
|
13
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
14
|
14
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
15
|
15
5TJ-82590-E0-00 Wire Harness Assy |
5TJ-82590-E0-00 |
from US $223.82 |
||
|
16
|
16
5TJ-81980-00-00 Diode Assy |
5TJ-81980-00-00 |
from US $12.92 |
||
|
17
|
17
4WA-81980-00-00 Diode Assy |
4WA-81980-00-00 |
from US $16.92 |
||
|
18
|
18
5UM-81960-E0-00 Rectifier & Regulator Assy |
5UM-81960-E0-00 |
from US $143.69 |
||
|
19
|
19
5UM-21288-E0-00 Guide, Cable |
5UM-21288-E0-00 |
from US $7.08 |
||
|
20
|
20
90105-06110-00 Bolt, Flange |
90105-06110-00 |
from US $1.81 |
||
|
21
|
21
5TJ-82100-01-00
Ytz7S He Yuasa Battery
HE YUASA BATT |
5TJ-82100-01-00 |
— | ||
| replacements | |||||
|
21
|
21
YTZ-7SHE0-00-00
YB16CLB YUASA BATTERY
HE YUASA BATT |
YTZ-7SHE0-00-00 |
— | ||
|
21
|
21
BTY-GTZ7S-00-00
Battery gtz7s
HE YUASA BATT |
BTY-GTZ7S-00-00 |
— | ||
|
21
|
21
YTZ-7S000-00-00
Battery Ytz7S (Ptz7S) Yu
HE YUASA BATT |
YTZ-7S000-00-00 |
— | ||
|
22
|
22
5UM-82176-E0-00 Damper |
5UM-82176-E0-00 |
from US $2.69 |
||
|
23
|
23
8CY-82131-00-00 Band, Battery |
8CY-82131-00-00 |
from US $11.90 |
||
|
24
|
24
5TJ-82115-00-00 Wire, Plus Lead |
5TJ-82115-00-00 |
from US $15.30 |
||
|
25
|
25
5TJ-82116-E0-00 Wire, Minus Lead |
5TJ-82116-E0-00 |
from US $23.24 |
||
|
26
|
26
5TJ-81940-12-00 Starter Relay Assy (Rc19-042) |
5TJ-81940-12-00 |
from US $80.69 |
||
|
27
|
27
42X-82151-00-00 Fuse (10A-Bl)10A-BL |
42X-82151-00-00 |
from US $1.66 |
||
|
28
|
28
5SL-82119-10-00 Cover, Lead Wire |
5SL-82119-10-00 |
from US $4.39 |
||
|
29
|
29
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.36 |
||
|
30
|
30
5UM-81952-E0-00 Holder, Relay |
5UM-81952-E0-00 |
from US $26.64 |
||
|
31
|
31
5UM-81950-E0-00 Relay Assy (5Um-E0)5UM-E0 |
5UM-81950-E0-00 |
from US $12.75 |
||
|
32
|
32
5UM-82510-E1-00 Main Switch Assy |
5UM-82510-E1-00 |
from US $121.52 |
||
| replacement | |||||
|
32
|
32
5UM-82510-E2-00 Main Switch Assy |
5UM-82510-E2-00 |
from US $109.20 |
||
|
33
|
33
5UM-8235Y-E0-00 Damper |
5UM-8235Y-E0-00 |
US $1.94 |
||
|
34
|
34
90464-06004-00 Clamp |
90464-06004-00 |
US $2.86 |
||
