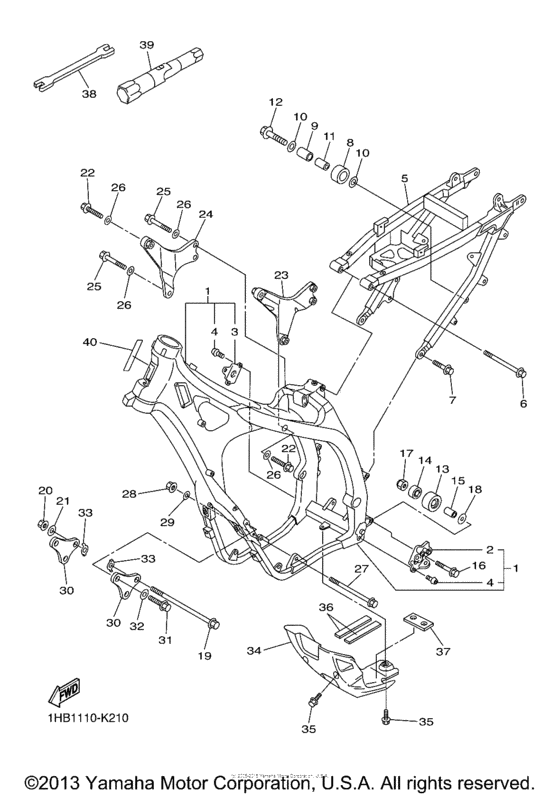

Frame Diagram Yamaha WR450F
- Year
- 2011
- Colour
- Deep Purplish Blue Solid E
- Sales region
- USA
- Базовая модель
- WR450FA
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TJ-21101-E0-00 Front Frame Comp |
5TJ-21101-E0-00 |
from US $3,273.60 |
||
|
2
|
2
5UM-21447-E0-00 Bracket, Footrest |
5UM-21447-E0-00 |
from US $247.31 |
||
|
3
|
3
1C3-21448-10-00 Bracket, Footrest |
1C3-21448-10-00 |
from US $30.74 |
||
|
4
|
4
90149-10031-00 Screw |
90149-10031-00 |
from US $1.98 |
||
| replacement | |||||
|
4
|
4
901-49100-33-00 Screw |
901-49100-33-00 |
from US $1.98 |
||
|
5
|
5
5UM-21190-E0-00 Rear Frame Comp |
5UM-21190-E0-00 |
from US $763.97 |
||
|
6
|
6
90105-08156-00 Bolt, Flange |
90105-08156-00 |
from US $7.08 |
||
|
7
|
7
90105-08307-00 Bolt, Flange |
90105-08307-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
95814-08020-00 Bolt, Flange(4Hm) |
95814-08020-00 |
from US $1.56 |
||
|
8
|
8
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
9
|
9
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.60 |
||
|
10
|
10
90201-08045-00 Washer, Plate |
90201-08045-00 |
from US $2.77 |
||
|
11
|
11
90387-08041-00 Collar |
90387-08041-00 |
from US $2.77 |
||
|
12
|
12
950-22080-40-00
Bolt, Flange (Small Head)
|
950-22080-40-00 |
— | ||
| replacement | |||||
|
12
|
12
95024-08040-00 Bolt, Flange |
95024-08040-00 |
from US $1.52 |
||
|
13
|
13
3JD-22178-20-00 Tensioner |
3JD-22178-20-00 |
from US $22.33 |
||
|
14
|
14
93300-60839-00 Bearing |
93300-60839-00 |
from US $17.99 |
||
|
15
|
15
90387-086N4-00 Collar |
90387-086N4-00 |
from US $1.66 |
||
|
16
|
16
90105-08133-00 Bolt, Flange |
90105-08133-00 |
from US $1.70 |
||
|
17
|
17
90185-08009-00 Nut, Self-Locking |
90185-08009-00 |
US $0.85 |
||
| replacement | |||||
|
17
|
17
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
18
|
18
90201-08043-00 Washer, Plate |
90201-08043-00 |
from US $1.70 |
||
|
19
|
19
90105-10193-00 Bolt, Flange |
90105-10193-00 |
from US $9.21 |
||
|
20
|
20
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
20
|
20
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
21
|
21
90201-10045-00 Washer, Plate |
90201-10045-00 |
from US $2.22 |
||
|
22
|
22
90105-10189-00 Bolt, Flange |
90105-10189-00 |
from US $2.69 |
||
|
23
|
23
2S2-21425-70-00 Bracket, Rear Upper 1 |
2S2-21425-70-00 |
from US $134.98 |
||
|
24
|
24
2S2-21426-70-00 Bracket, Rear Upper 2 |
2S2-21426-70-00 |
from US $134.98 |
||
|
25
|
25
90105-10191-00 Bolt, Flange |
90105-10191-00 |
from US $4.39 |
||
|
26
|
26
90201-10045-00 Washer, Plate |
90201-10045-00 |
from US $2.22 |
||
|
27
|
27
90105-10176-00 Bolt, Flange |
90105-10176-00 |
from US $6.80 |
||
|
28
|
28
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
28
|
28
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
29
|
29
90201-10045-00 Washer, Plate |
90201-10045-00 |
from US $2.22 |
||
|
30
|
30
2S2-21417-00-00 Bracket, Front Lower 1 |
2S2-21417-00-00 |
from US $26.78 |
||
|
31
|
31
90105-08143-00 Bolt, Flange |
90105-08143-00 |
from US $1.98 |
||
|
32
|
32
92902-08200-00 Washer |
92902-08200-00 |
from US $0.32 |
||
| replacement | |||||
|
32
|
32
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
33
|
33
5XC-21456-90-00 Plate, Patch |
5XC-21456-90-00 |
from US $2.55 |
||
|
34
|
34
5UM-2147A-E0-00 Guard, Engine 1 |
5UM-2147A-E0-00 |
from US $69.08 |
||
|
35
|
35
90119-06166-00 Bolt, With Washer |
90119-06166-00 |
from US $1.70 |
||
|
36
|
36
5UM-21486-E0-00 Damper 2 |
5UM-21486-E0-00 |
from US $2.55 |
||
|
37
|
37
5TJ-21485-E0-00 Damper, Rubber 1 |
5TJ-21485-E0-00 |
from US $14.25 |
||
| replacement | |||||
|
37
|
37
5TJ-21485-E1-00 Damper, Rubber 1 |
5TJ-21485-E1-00 |
US $14.89 |
||
|
38
|
38
5ET-28166-10-00 Wrench, Hexagon |
5ET-28166-10-00 |
from US $18.42 |
||
|
39
|
39
5TA-2814F-00-00 Box, Spark Plug |
5TA-2814F-00-00 |
from US $24.79 |
||
|
40
|
40
5UM-21268-E0-00 Seal |
5UM-21268-E0-00 |
from US $9.21 |
||
