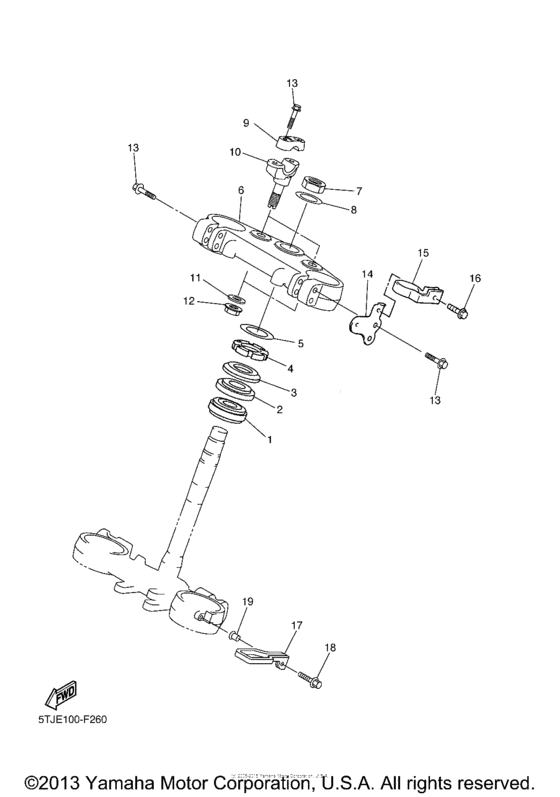

Steering Diagram Yamaha WR450F
- Year
- 2011
- Colour
- Deep Purplish Blue Solid E
- Sales region
- USA
- Базовая модель
- WR450FA
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93332-00081-00 Bearing |
93332-00081-00 |
from US $50.98 |
||
|
2
|
2
93332-00068-00 Bearing |
93332-00068-00 |
from US $50.98 |
||
| replacement | |||||
|
2
|
2
93332-00078-00 Bearing(4Ew) |
93332-00078-00 |
from US $50.98 |
||
|
3
|
3
4EW-23416-00-00 Cover, Ball Race 2 |
4EW-23416-00-00 |
from US $11.80 |
||
|
4
|
4
90179-28013-00 Nut |
90179-28013-00 |
from US $19.69 |
||
|
5
|
5
90201-286K9-00 Washer, Plate (T1.0) |
90201-286K9-00 |
from US $1.98 |
||
|
6
|
6
5UM-23435-E1-00 Crown, Handle |
5UM-23435-E1-00 |
from US $351.67 |
||
|
7
|
7
90170-24003-00 Nut |
90170-24003-00 |
from US $17.43 |
||
|
8
|
8
90201-24016-00 Washer, Plate |
90201-24016-00 |
from US $7.51 |
||
|
9
|
9
18P-23441-00-00 Holder, Handle Upper |
18P-23441-00-00 |
from US $22.24 |
||
|
10
|
10
17D-23442-00-00 Holder, Handle Lower |
17D-23442-00-00 |
from US $106.56 |
||
|
11
|
11
92902-10200-00 Washer, Plain |
92902-10200-00 |
US $1.18 |
||
| replacement | |||||
|
11
|
11
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
12
|
12
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.81 |
||
|
13
|
13
90105-08154-00 Bolt, Flange |
90105-08154-00 |
from US $1.81 |
||
|
14
|
14
5UM-2831V-E0-00 Stay, Head Light 1 |
5UM-2831V-E0-00 |
from US $7.79 |
||
|
15
|
15
5TJ-2331E-80-00 Guide, Cable |
5TJ-2331E-80-00 |
from US $4.68 |
||
|
16
|
16
90105-05016-00 Bolt, Flange |
90105-05016-00 |
from US $1.70 |
||
|
17
|
17
5TJ-23389-80-00 Guide, Cable |
5TJ-23389-80-00 |
from US $6.11 |
||
|
18
|
18
90105-06107-00 Bolt, Flange |
90105-06107-00 |
from US $1.81 |
||
|
19
|
19
90387-06104-00 Collar |
90387-06104-00 |
from US $1.48 |
||
