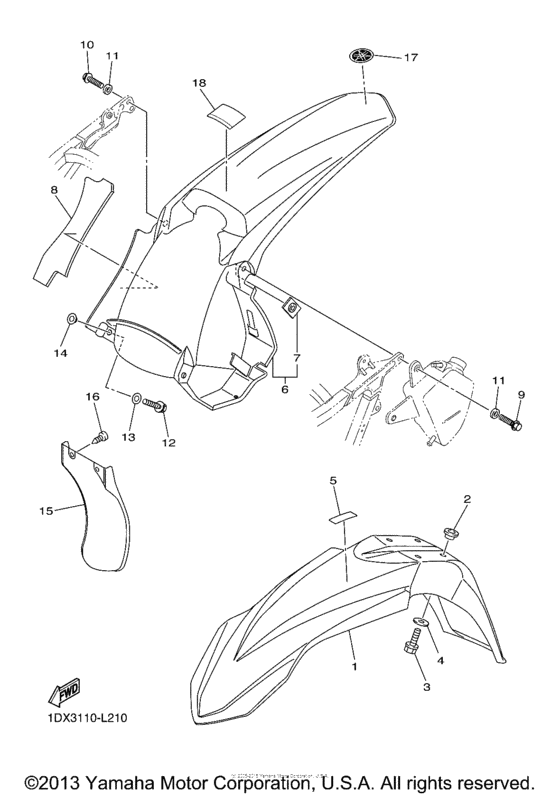

Fender Diagram Yamaha WR450F
- Year
- 2013
- Colour
- Deep Purplish Blue Solid E
- Sales region
- USA
- Базовая модель
- WR450FD
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17D-21511-50-00 Fender, Front |
17D-21511-50-00 |
from US $41.89 |
||
|
2
|
2
903-87062-59-00 Collar |
903-87062-59-00 |
from US $4.99 |
||
|
3
|
3
90105-06127-00 Bolt, Flange |
90105-06127-00 |
from US $1.70 |
||
|
4
|
4
902-01061-08-00 Washer, Plate |
902-01061-08-00 |
from US $1.98 |
||
|
5
|
5
3FB-2415E-02-00 Label, Caution |
3FB-2415E-02-00 |
from US $4.53 |
||
|
6
|
6
1HC-21610-90-00 Rear Fender Comp |
1HC-21610-90-00 |
from US $51.98 |
||
|
7
|
7
5XE-21635-10-00 Nut, Rear Fender |
5XE-21635-10-00 |
from US $6.52 |
||
|
8
|
8
5UM-2174T-E0-00 Insulator, Side Cover 2 |
5UM-2174T-E0-00 |
from US $12.91 |
||
|
9
|
9
90105-06127-00 Bolt, Flange |
90105-06127-00 |
from US $1.70 |
||
|
10
|
10
90105-06100-00 Bolt, Flange |
90105-06100-00 |
from US $1.81 |
||
|
11
|
11
90201-06032-00 Washer, Plate |
90201-06032-00 |
from US $1.70 |
||
|
12
|
12
90105-06106-00 Bolt, Flange |
90105-06106-00 |
from US $1.84 |
||
|
13
|
13
90201-06571-00 Washer, Plate |
90201-06571-00 |
from US $1.70 |
||
|
14
|
14
90387-06009-00 Collar |
90387-06009-00 |
from US $7.37 |
||
|
15
|
15
5TA-21642-00-00 Guard, Flap |
5TA-21642-00-00 |
from US $11.19 |
||
|
16
|
16
97702-60016-00 Screw, Tapping |
97702-60016-00 |
from US $1.56 |
||
|
17
|
17
3C5-2411B-20-00 Emblem |
3C5-2411B-20-00 |
from US $6.80 |
||
|
18
|
18
5PA-2118K-00-00 Label, Caution |
5PA-2118K-00-00 |
from US $9.41 |
