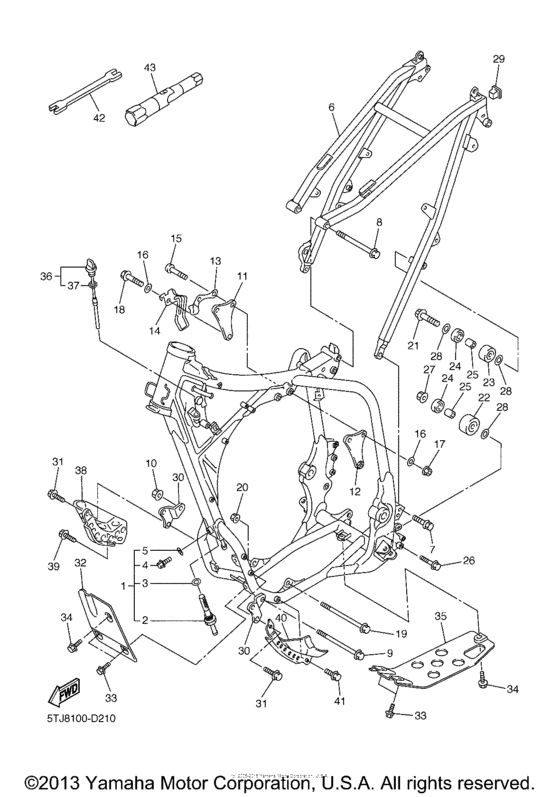

Frame Diagram Yamaha WR450F
- Year
- 2005
- Colour
- Deep Purplish Blue Solid E
- Sales region
- USA
- Базовая модель
- WR450FT
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TJ-21101-80-00 Front Frame Comp |
5TJ-21101-80-00 |
from US $1,924.82 |
||
|
2
|
2
5TA-21756-00-00 Net, Filter |
5TA-21756-00-00 |
from US $31.17 |
||
|
3
|
3
90201-145M4-00 Washer, Plate |
90201-145M4-00 |
from US $2.41 |
||
|
4
|
4
958-27080-12-00 Bolt, Flange |
958-27080-12-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
5
|
5
904-30081-19-00
Gasket
|
904-30081-19-00 |
— | ||
| replacement | |||||
|
5
|
5
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.52 |
||
|
6
|
6
5TJ-21190-80-00 Rear Frame Comp |
5TJ-21190-80-00 |
from US $703.24 |
||
|
7
|
7
90105-08057-00 Bolt, Flange |
90105-08057-00 |
from US $3.97 |
||
|
8
|
8
90105-08120-00 Bolt, Flange |
90105-08120-00 |
from US $7.51 |
||
| replacement | |||||
|
8
|
8
95817-08105-00 Bolt, Flange |
95817-08105-00 |
from US $7.79 |
||
|
9
|
9
90105-10099-00 Bolt, Flange |
90105-10099-00 |
from US $5.40 |
||
|
10
|
10
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
11
|
11
5XD-21425-00-00 Bracket, Rear Upper 1 |
5XD-21425-00-00 |
from US $37.86 |
||
|
12
|
12
5XD-21425-10-00 Bracket, Rear Upper 1 |
5XD-21425-10-00 |
from US $37.86 |
||
|
13
|
13
5TA-21161-00-00 Holder, Cable |
5TA-21161-00-00 |
from US $7.37 |
||
|
14
|
14
5TJ-21335-00-00
Clamp, Wire Harness 1
|
5TJ-21335-00-00 |
— | ||
|
15
|
15
92017-10060-00 Bolt, Button Head |
92017-10060-00 |
from US $2.83 |
||
|
16
|
16
90201-104R2-00 Washer, Plate |
90201-104R2-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
90201-08759-00 Washer, Plate |
90201-08759-00 |
from US $1.81 |
||
|
17
|
17
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
17
|
17
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
18
|
18
95817-10055-00 Bolt, Flange |
95817-10055-00 |
from US $2.91 |
||
|
19
|
19
90105-10733-00 Bolt, Flange |
90105-10733-00 |
from US $3.04 |
||
|
20
|
20
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
| replacement | |||||
|
20
|
20
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
21
|
21
95027-08040-00 Bolt, Flange |
95027-08040-00 |
from US $1.42 |
||
|
22
|
22
3JD-22178-20-00 Tensioner |
3JD-22178-20-00 |
from US $22.33 |
||
|
23
|
23
4EW-22178-01-00 Tensioner |
4EW-22178-01-00 |
from US $12.04 |
||
|
24
|
24
93300-60804-00 Bearing |
93300-60804-00 |
from US $14.72 |
||
|
25
|
25
90387-086N4-00 Collar |
90387-086N4-00 |
from US $1.66 |
||
|
26
|
26
95027-08065-00 Bolt, Flange |
95027-08065-00 |
from US $2.35 |
||
|
27
|
27
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
27
|
27
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
28
|
28
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.81 |
||
|
29
|
29
90338-18176-00 Plug |
90338-18176-00 |
from US $2.41 |
||
|
30
|
30
5XD-21417-50-00 Bracket, Front Lower 1 |
5XD-21417-50-00 |
from US $9.21 |
||
|
31
|
31
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
| replacement | |||||
|
31
|
31
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
32
|
32
5TA-21471-00-00 Protector, Engine |
5TA-21471-00-00 |
US $53.24 |
||
|
33
|
33
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
34
|
34
901-19060-01-00 Bolt, With Washer |
901-19060-01-00 |
from US $1.84 |
||
|
35
|
35
5TA-2147E-00-00
Guard, Engine 2
|
5TA-2147E-00-00 |
— | ||
|
36
|
36
5TA-15362-01-00 Plug, Oil Level |
5TA-15362-01-00 |
from US $27.53 |
||
|
37
|
37
93210-08001-00 O-Ring |
93210-08001-00 |
from US $1.63 |
||
|
38
|
38
5TA-2147A-00-00
Guard, Engine 1
|
5TA-2147A-00-00 |
— | ||
|
39
|
39
95027-08012-00 Bolt, Flange |
95027-08012-00 |
from US $1.66 |
||
|
40
|
40
5TJ-2147F-00-00 Guard, Engine 3 |
5TJ-2147F-00-00 |
from US $40.62 |
||
|
41
|
41
95027-08012-00 Bolt, Flange |
95027-08012-00 |
from US $1.66 |
||
|
42
|
42
5ET-28166-00-00 Wrench, Hexagon |
5ET-28166-00-00 |
from US $18.42 |
||
| replacement | |||||
|
42
|
42
5ET-28166-10-00 Wrench, Hexagon |
5ET-28166-10-00 |
from US $18.42 |
||
|
43
|
43
5TA-2814F-00-00 Box, Spark Plug |
5TA-2814F-00-00 |
from US $24.79 |
||
