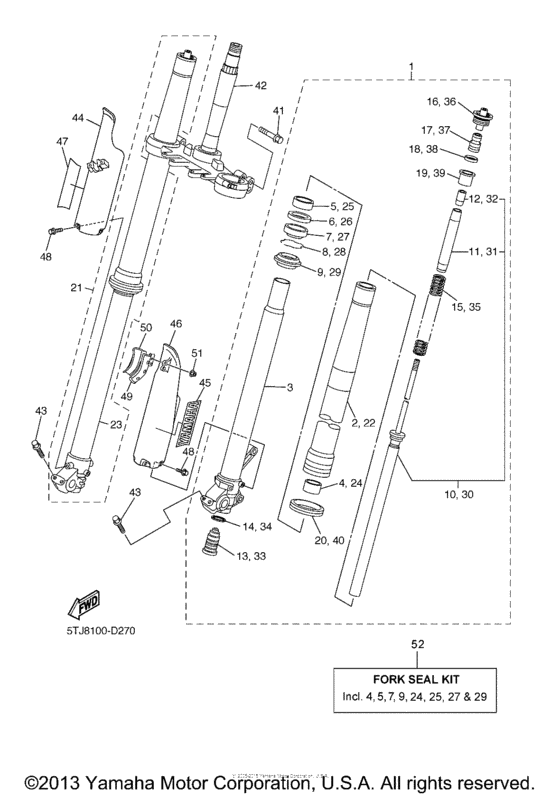

Front fork Diagram Yamaha WR450F
- Year
- 2005
- Colour
- Deep Purplish Blue Solid E
- Sales region
- USA
- Базовая модель
- WR450FT
- Engine Capacity
- 450
- Color Variant
- A
- Model
- WR450F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TJ-23102-L0-00 Front Fork Assy (L.h) |
5TJ-23102-L0-00 |
US $1,584.57 |
||
|
2
|
2
5TJ-23136-L0-00 Tube, Outer |
5TJ-23136-L0-00 |
US $826.11 |
||
| replacement | |||||
|
2
|
2
5TJ-23136-50-00 Tube, Outer (Right) |
5TJ-23136-50-00 |
US $843.52 |
||
|
3
|
3
5TJ-23120-L0-00 Inner Tube Comp.2 |
5TJ-23120-L0-00 |
US $492.23 |
||
|
4
|
4
5XE-23171-L0-00 Piston, Front Fork |
5XE-23171-L0-00 |
from US $18.86 |
||
|
5
|
5
5XE-23125-L0-00 Metal, Slide 1INCL. IN FORK SEAL KIT |
5XE-23125-L0-00 |
from US $13.87 |
||
|
6
|
6
5XE-23146-L0-00 Washer, Oil Seal |
5XE-23146-L0-00 |
from US $11.05 |
||
|
7
|
7
1C3-23145-L0-00 Oil Seal |
1C3-23145-L0-00 |
from US $17.86 |
||
|
8
|
8
5XE-23153-L0-00 Ring, Snap |
5XE-23153-L0-00 |
from US $2.41 |
||
|
9
|
9
5XE-23144-L0-00 Seal, Dust |
5XE-23144-L0-00 |
from US $15.84 |
||
|
10
|
10
5TJ-23170-80-00 Cylinder Comp., Front Fork |
5TJ-23170-80-00 |
US $663.28 |
||
| replacement | |||||
|
10
|
10
5TJ-23170-60-00 Cylinder Comp., Front Fork |
5TJ-23170-60-00 |
US $663.28 |
||
|
11
|
11
5TJ-23142-L0-00 Seat, Spring Upper |
5TJ-23142-L0-00 |
US $44.48 |
||
|
12
|
12
5HD-23393-L0-00 Nut, Special |
5HD-23393-L0-00 |
from US $18.40 |
||
|
13
|
13
5TJ-2316A-80-00 Valve Comp |
5TJ-2316A-80-00 |
US $231.05 |
||
|
14
|
14
3JD-23158-L0-00 Gasket |
3JD-23158-L0-00 |
from US $5.95 |
||
|
15
|
15
5TJ-23141-L0-00 Spring, Front Fork (K=4.5N/ |
5TJ-23141-L0-00 |
from US $97.70 |
||
| replacement | |||||
|
15
|
15
5TJ-23141-50-00 Spring (K=4.5N/mm) |
5TJ-23141-50-00 |
from US $86.09 |
||
|
16
|
16
5XE-23111-L0-00 Bolt, Cap |
5XE-23111-L0-00 |
from US $160.27 |
||
|
17
|
17
5MV-23195-L0-00 Rubber |
5MV-23195-L0-00 |
from US $16.86 |
||
|
18
|
18
5TJ-23149-L0-00 Washer, Spring Upper |
5TJ-23149-L0-00 |
from US $6.66 |
||
|
19
|
19
5TJ-23118-L0-00 Spacer |
5TJ-23118-L0-00 |
from US $13.95 |
||
|
20
|
20
1C3-2314F-L0-00 Protecter Guide Comp., 1 |
1C3-2314F-L0-00 |
from US $29.23 |
||
|
21
|
21
5TJ-23103-L0-00
Front Fork Assy (R.h)
|
5TJ-23103-L0-00 |
— | ||
|
22
|
22
5TJ-23136-L0-00 Tube, Outer |
5TJ-23136-L0-00 |
US $826.11 |
||
| replacement | |||||
|
22
|
22
5TJ-23136-50-00 Tube, Outer (Right) |
5TJ-23136-50-00 |
US $843.52 |
||
|
23
|
23
5TJ-23110-L0-00 Inner Tube Comp.1 |
5TJ-23110-L0-00 |
US $415.01 |
||
|
24
|
24
5XE-23171-L0-00 Piston, Front Fork |
5XE-23171-L0-00 |
from US $18.86 |
||
|
25
|
25
5XE-23125-L0-00 Metal, Slide 1INCL. IN FORK SEAL KIT |
5XE-23125-L0-00 |
from US $13.87 |
||
|
26
|
26
5XE-23146-L0-00 Washer, Oil Seal |
5XE-23146-L0-00 |
from US $11.05 |
||
|
27
|
27
1C3-23145-L0-00 Oil Seal |
1C3-23145-L0-00 |
from US $17.86 |
||
|
28
|
28
5XE-23153-L0-00 Ring, Snap |
5XE-23153-L0-00 |
from US $2.41 |
||
|
29
|
29
5XE-23144-L0-00 Seal, Dust |
5XE-23144-L0-00 |
from US $15.84 |
||
|
30
|
30
5TJ-23170-80-00 Cylinder Comp., Front Fork |
5TJ-23170-80-00 |
US $663.28 |
||
| replacement | |||||
|
30
|
30
5TJ-23170-60-00 Cylinder Comp., Front Fork |
5TJ-23170-60-00 |
US $663.28 |
||
|
31
|
31
5TJ-23142-L0-00 Seat, Spring Upper |
5TJ-23142-L0-00 |
US $44.48 |
||
|
32
|
32
5HD-23393-L0-00 Nut, Special |
5HD-23393-L0-00 |
from US $18.40 |
||
|
33
|
33
5TJ-2316A-80-00 Valve Comp |
5TJ-2316A-80-00 |
US $231.05 |
||
|
34
|
34
3JD-23158-L0-00 Gasket |
3JD-23158-L0-00 |
from US $5.95 |
||
|
35
|
35
5TJ-23141-L0-00 Spring, Front Fork (K=4.5N/ |
5TJ-23141-L0-00 |
from US $97.70 |
||
| replacement | |||||
|
35
|
35
5TJ-23141-50-00 Spring (K=4.5N/mm) |
5TJ-23141-50-00 |
from US $86.09 |
||
|
36
|
36
5XE-23111-L0-00 Bolt, Cap |
5XE-23111-L0-00 |
from US $160.27 |
||
|
37
|
37
5MV-23195-L0-00 Rubber |
5MV-23195-L0-00 |
from US $16.86 |
||
|
38
|
38
5TJ-23149-L0-00 Washer, Spring Upper |
5TJ-23149-L0-00 |
from US $6.66 |
||
|
39
|
39
5TJ-23118-L0-00 Spacer |
5TJ-23118-L0-00 |
from US $13.95 |
||
|
40
|
40
1C3-2314F-L0-00 Protecter Guide Comp., 1 |
1C3-2314F-L0-00 |
from US $29.23 |
||
|
41
|
41
5NY-23346-L0-00 Bolt 1 |
5NY-23346-L0-00 |
from US $2.69 |
||
|
42
|
42
5TJ-23340-L0-00 Under Bracket Comp |
5TJ-23340-L0-00 |
US $581.51 |
||
|
43
|
43
95027-08040-00 Bolt, Flange |
95027-08040-00 |
from US $1.42 |
||
|
44
|
44
1C3-2315H-00-00 Protector 1 |
1C3-2315H-00-00 |
from US $18.63 |
||
| replacement | |||||
|
44
|
44
1C3-2315H-10-00 Protector 1 |
1C3-2315H-10-00 |
from US $21.22 |
||
|
45
|
45
4XL-2153A-10-00
Emblem, Yamaha
|
4XL-2153A-10-00 |
— | ||
| replacement | |||||
|
45
|
45
4XL-2153A-11-00 Emblem, Yamaha |
4XL-2153A-11-00 |
from US $11.16 |
||
|
46
|
46
5TJ-2315J-80-00 Protector 2 |
5TJ-2315J-80-00 |
from US $31.81 |
||
|
47
|
47
4XL-2153A-10-00
Emblem, Yamaha
|
4XL-2153A-10-00 |
— | ||
| replacement | |||||
|
47
|
47
4XL-2153A-11-00 Emblem, Yamaha |
4XL-2153A-11-00 |
from US $11.16 |
||
|
48
|
48
3SP-23356-L0-00 Bolt 2 |
3SP-23356-L0-00 |
from US $2.91 |
||
|
49
|
49
1C3-23466-00-00 Clamp |
1C3-23466-00-00 |
from US $1.80 |
||
| replacement | |||||
|
49
|
49
1C3-23466-50-00 Clamp |
1C3-23466-50-00 |
from US $5.95 |
||
|
50
|
50
1C3-23467-00-00 Clamp |
1C3-23467-00-00 |
from US $5.95 |
||
| replacement | |||||
|
50
|
50
1C3-23467-50-00 Clamp |
1C3-23467-50-00 |
from US $5.95 |
||
|
51
|
51
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
52
|
52
1C3-W003B-00-00 Fork Seal Kit |
1C3-W003B-00-00 |
from US $86.69 |
||
