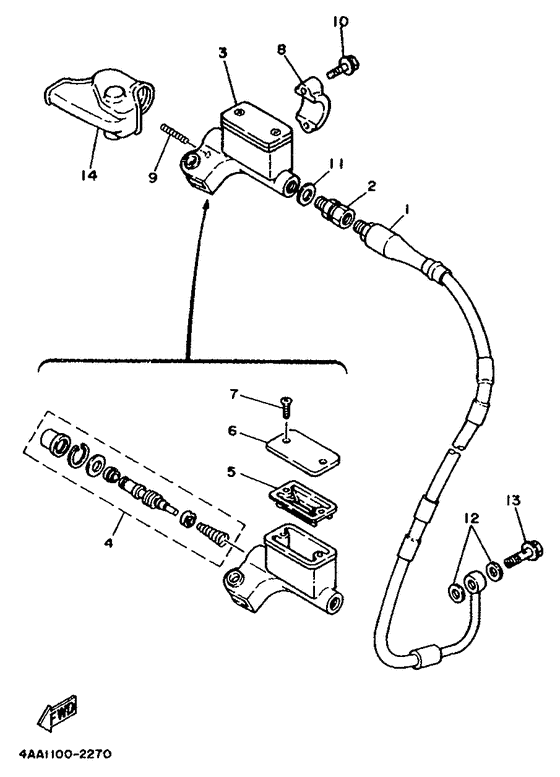

Front master cylinder Diagram Yamaha WR500Z
- Year
- 1992
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4AA1
- Sales region
- North America (999)
- Engine Capacity
- 500
- Model
- WR500Z
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04
|
04
3SP-W0041-00-00 Cylinder Kit, Master |
3SP-W0041-00-00 |
from US $50.25 |
||
|
05
|
05
56A-25854-00-00 Gasket, Diaphragm |
56A-25854-00-00 |
from US $17.14 |
||
|
06
|
06
2VN-25852-00-00 Cap, Reservoir |
2VN-25852-00-00 |
from US $13.84 |
||
| replacement | |||||
|
06
|
06
2VN-25852-02-00 Cap, Reservoir |
2VN-25852-02-00 |
from US $17.77 |
||
|
07
|
07
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
07
|
07
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
