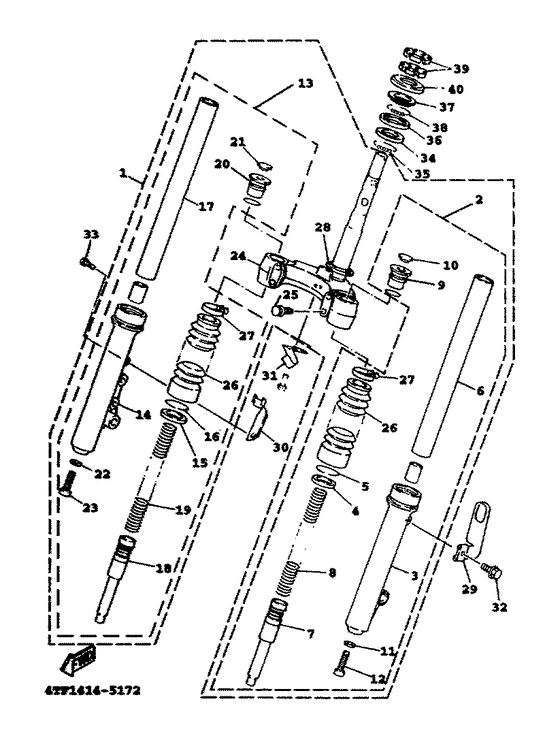

Front fork Diagram Yamaha XC125 Cygnus
- Year
- 1999
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4THF
- Sales region
- General (999)
- Engine Capacity
- 125
- Model
- XC125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4HP-F3100-00-MA
Front Fork Assy
|
4HP-F3100-00-MA |
— | ||
| replacement | |||||
|
01
|
01
4HP-F3100-01-MA
Front Fork Assy
|
4HP-F3100-01-MA |
— | ||
|
02
|
02
4HP-F3102-00-MA
Front Fork Assy (L.h)
|
4HP-F3102-00-MA |
— | ||
|
03
|
03
4HP-F3126-00-MA
Tube, Outer (L.h)
|
4HP-F3126-00-MA |
— | ||
|
04
|
04
3UH-F3145-00-00 Oil Seal |
3UH-F3145-00-00 |
from US $6.32 |
||
|
05
|
05
3UH-F3156-00-00 Ring, Snap |
3UH-F3156-00-00 |
US $4.11 |
||
| replacement | |||||
|
05
|
05
3UH-F3153-00-00 Ring, Snap |
3UH-F3153-00-00 |
from US $1.03 |
||
|
06
|
06
4HP-F3110-00-00
Inner Tube Comp.1
|
4HP-F3110-00-00 |
— | ||
|
07
|
07
4CB-F3170-00-00
Cylinder Comp., Front Fork
|
4CB-F3170-00-00 |
— | ||
|
08
|
08
4HP-F3141-00-00
Spring, Front Fork
|
4HP-F3141-00-00 |
— | ||
|
09
|
09
4HP-F3111-00-00 Bolt, Cap |
4HP-F3111-00-00 |
from US $10.46 |
||
|
10
|
10
4HP-F3168-00-00
Cap, Front Fork
|
4HP-F3168-00-00 |
— | ||
|
11
|
11
3UH-F3158-00-00 Gasket |
3UH-F3158-00-00 |
US $3.26 |
||
|
12
|
12
3UH-F3181-00-00 Bolt, Hexagon Socket Head |
3UH-F3181-00-00 |
from US $0.67 |
||
|
13
|
13
4HP-F3103-00-MA
Front Fork Assy (R.h)
|
4HP-F3103-00-MA |
— | ||
|
14
|
14
4HP-F3136-00-MA
Tube, Outer 2
|
4HP-F3136-00-MA |
— | ||
|
15
|
15
3UH-F3145-00-00 Oil Seal |
3UH-F3145-00-00 |
from US $6.32 |
||
|
16
|
16
3UH-F3156-00-00 Ring, Snap |
3UH-F3156-00-00 |
US $4.11 |
||
| replacement | |||||
|
16
|
16
3UH-F3153-00-00 Ring, Snap |
3UH-F3153-00-00 |
from US $1.03 |
||
|
17
|
17
4HP-F3110-00-00
Inner Tube Comp.1
|
4HP-F3110-00-00 |
— | ||
|
18
|
18
4CB-F3170-00-00
Cylinder Comp., Front Fork
|
4CB-F3170-00-00 |
— | ||
|
19
|
19
4HP-F3141-00-00
Spring, Front Fork
|
4HP-F3141-00-00 |
— | ||
|
20
|
20
4HP-F3111-00-00 Bolt, Cap |
4HP-F3111-00-00 |
from US $10.46 |
||
|
21
|
21
4HP-F3168-00-00
Cap, Front Fork
|
4HP-F3168-00-00 |
— | ||
|
22
|
22
3UH-F3158-00-00 Gasket |
3UH-F3158-00-00 |
US $3.26 |
||
|
23
|
23
3UH-F3181-00-00 Bolt, Hexagon Socket Head |
3UH-F3181-00-00 |
from US $0.67 |
||
|
24
|
24
4HP-F3340-00-00
Under Bracket Comp
|
4HP-F3340-00-00 |
— | ||
|
25
|
25
3UH-F3346-00-00
Bolt 1
|
3UH-F3346-00-00 |
— | ||
|
26
|
26
3UH-F3191-00-00 Boot |
3UH-F3191-00-00 |
from US $12.65 |
||
|
27
|
27
3UH-F3192-00-00 Band |
3UH-F3192-00-00 |
US $11.76 |
||
|
28
|
28
1MH-F3411-00-00 Race, Ball 1 |
1MH-F3411-00-00 |
from US $8.75 |
||
| replacements | |||||
|
28
|
28
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
|
28
|
28
4C6-F3411-10-00 Race, Ball 1 |
4C6-F3411-10-00 |
from US $8.84 |
||
|
28
|
28
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
29
|
29
3UH-F3317-00-00
Holder, Cable
|
3UH-F3317-00-00 |
— | ||
|
30
|
30
3UH-F5875-10-00
Holder, Brake Hose 1
|
3UH-F5875-10-00 |
— | ||
|
31
|
31
4HP-F5876-00-00
Holder, Brake Hose 2
|
4HP-F5876-00-00 |
— | ||
|
32
|
32
9580L-06010-00 Bolt, Flange |
9580L-06010-00 |
from US $0.27 |
||
| replacement | |||||
|
32
|
32
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
33
|
33
9580L-06020-00 Bolt, Flange |
9580L-06020-00 |
US $1.42 |
||
|
34
|
34
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
34
|
34
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
35
|
35
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
36
|
36
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
36
|
36
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
37
|
37
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
37
|
37
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
38
|
38
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
39
|
39
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
39
|
39
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
39
|
39
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
40
|
40
3XG-F3416-00-00 Cover, Ball Race 2 |
3XG-F3416-00-00 |
US $2.83 |
||
| replacement | |||||
|
40
|
40
3VP-23416-00-00 Cover, Ball Race 2 |
3VP-23416-00-00 |
US $2.83 |
||
