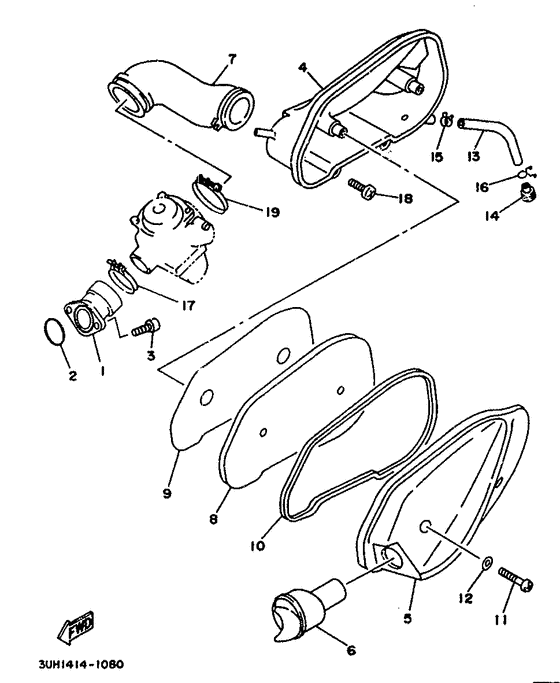

Intake Diagram Yamaha XC150 Cygnus
- Year
- 1992
- Colour
- Black 2 (BL2; 004B)
- Model code
- 3UH4
- Sales region
- Spain (999)
- Engine Capacity
- 150
- Model
- XC150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3UH-E3585-00-00
Manifold
|
3UH-E3585-00-00 |
— | ||
|
02
|
02
93210-35883-00 O-Ring |
93210-35883-00 |
US $2.69 |
||
|
03
|
03
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
03
|
03
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
04
|
04
3UH-E4411-00-00
Case, Air Cleaner 1
|
3UH-E4411-00-00 |
— | ||
| replacement | |||||
|
04
|
04
3UH-W1441-00-00
Air Cleaner Case Comp
|
3UH-W1441-00-00 |
— | ||
|
05
|
05
3UH-E4412-00-00
Cap, Cleaner Case 1
|
3UH-E4412-00-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
3UH-E4437-00-00
Duct
|
3UH-E4437-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
3UH-E4453-01-00
Joint, Air Cleaner 1
|
3UH-E4453-01-00 |
— | ||
| replacement | |||||
|
07
|
07
3UH-W1441-00-00
Air Cleaner Case Comp
|
3UH-W1441-00-00 |
— | ||
|
08
|
08
3UH-E4451-01-00 Element, Air Cleaner |
3UH-E4451-01-00 |
US $19.98 |
||
|
09
|
09
3UH-E4472-00-00
Plate, Element
|
3UH-E4472-00-00 |
— | ||
| replacement | |||||
|
09
|
09
3UH-E4472-01-00
Plate, Element
|
3UH-E4472-01-00 |
— | ||
|
10
|
10
3UH-E4452-00-00
Seal
|
3UH-E4452-00-00 |
— | ||
|
11
|
11
98506-06035-00 Screw Pan Head J |
98506-06035-00 |
from US $1.21 |
||
| replacement | |||||
|
11
|
11
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.39 |
||
|
12
|
12
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
13
|
13
90446-13802-00
Hose
|
90446-13802-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
90338-11820-00 Plug |
90338-11820-00 |
from US $1.15 |
||
|
15
|
15
90467-13813-00 Clip |
90467-13813-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
90467-13133-00 Clip(3Yx) |
90467-13133-00 |
from US $1.52 |
||
|
16
|
16
90467-11825-00 Clip |
90467-11825-00 |
from US $1.13 |
||
| replacement | |||||
|
16
|
16
90467-11M08-00 Clip |
90467-11M08-00 |
from US $1.70 |
||
|
17
|
17
90460-45222-00 Hose Clamp Assy |
90460-45222-00 |
from US $5.67 |
||
| replacement | |||||
|
17
|
17
90450-46001-00 Hose Clamp Assy |
90450-46001-00 |
from US $5.24 |
||
|
18
|
18
98516-06020-00 Screw Pan Head |
98516-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
18
|
18
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
19
|
19
90460-56105-00 Hose Clamp Assy |
90460-56105-00 |
from US $10.33 |
||
| replacement | |||||
|
19
|
19
90450-56001-00 Hose Clamp Assy |
90450-56001-00 |
from US $14.73 |
||
