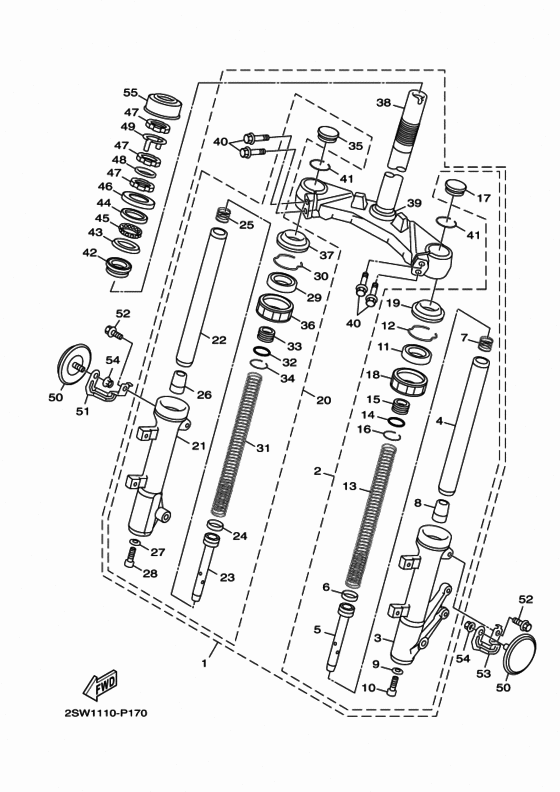

Front fork Diagram Yamaha XC155 SMAX
- Year
- 2015
- Colour
- Mat Titan 1
- Model code
- 2SW2
- Sales region
- Canada (010)
- Engine Capacity
- 155
- Color Variant
- B
- Model
- SMAX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2PE-F3100-00-00 Front Fork Assy |
2PE-F3100-00-00 |
US $417.58 |
||
|
2
|
2
2PE-F3102-00-00 Front Fork Assy (L.h) |
2PE-F3102-00-00 |
from US $191.65 |
||
|
3
|
3
1DK-F3126-00-00 Tube, Outer (L.h) |
1DK-F3126-00-00 |
from US $80.05 |
||
|
4
|
4
2PE-F3110-00-00 Inner Tube Comp. 1 |
2PE-F3110-00-00 |
from US $53.48 |
||
|
5
|
5
2PE-F3142-00-00 Seat, Spring Upper |
2PE-F3142-00-00 |
from US $14.85 |
||
|
6
|
6
4P9-F318X-00-00 Piston Ring(KAIFA) |
4P9-F318X-00-00 |
from US $2.43 |
||
|
7
|
7
4P9-F3151-00-00 Spring, Rebound |
4P9-F3151-00-00 |
US $3.54 |
||
|
8
|
8
4P9-F3171-00-00 Piston, Front Fork(KAIFA) |
4P9-F3171-00-00 |
US $6.80 |
||
|
9
|
9
4P9-F3158-00-00 Gasket(KAIFA) |
4P9-F3158-00-00 |
from US $1.22 |
||
|
10
|
10
4P9-F3181-00-00 Bolt, Hexagon Socket Head(KAIFA) |
4P9-F3181-00-00 |
from US $2.61 |
||
|
11
|
11
4C6-F3145-00-00 Oil Seal(KAIFA) |
4C6-F3145-00-00 |
from US $12.17 |
||
|
12
|
12
4P9-F3157-00-00 Ring, Piston(KAIFA) |
4P9-F3157-00-00 |
from US $1.31 |
||
|
13
|
13
1DK-F3141-00-00 Spring, Front Fork |
1DK-F3141-00-00 |
from US $11.12 |
||
|
14
|
14
4C6-F3147-00-00 O-Ring(KAIFA) |
4C6-F3147-00-00 |
from US $0.94 |
||
|
15
|
15
4P9-F3113-00-00 Collar(KAIFA) |
4P9-F3113-00-00 |
from US $4.39 |
||
|
16
|
16
4P9-F3155-00-00 Ring, Felt(KAIFA) |
4P9-F3155-00-00 |
from US $0.43 |
||
|
17
|
17
4P9-F3154-00-00 Cap |
4P9-F3154-00-00 |
from US $1.44 |
||
|
18
|
18
4P9-F331G-00-00 Cover |
4P9-F331G-00-00 |
from US $2.52 |
||
|
19
|
19
4P9-F3191-00-00 Seal, Dust(KAIFA) |
4P9-F3191-00-00 |
from US $2.93 |
||
|
20
|
20
2PE-F3103-00-00 Front Fork Assy (R.h) |
2PE-F3103-00-00 |
from US $208.93 |
||
|
21
|
21
1DK-F3136-00-00 Tube, Outer 2 |
1DK-F3136-00-00 |
from US $77.92 |
||
|
22
|
22
2PE-F3110-00-00 Inner Tube Comp. 1 |
2PE-F3110-00-00 |
from US $53.48 |
||
|
23
|
23
2PE-F3142-00-00 Seat, Spring Upper |
2PE-F3142-00-00 |
from US $14.85 |
||
|
24
|
24
4P9-F318X-00-00 Piston Ring(KAIFA) |
4P9-F318X-00-00 |
from US $2.43 |
||
|
25
|
25
4P9-F3151-00-00 Spring, Rebound |
4P9-F3151-00-00 |
US $3.54 |
||
|
26
|
26
4P9-F3171-00-00 Piston, Front Fork(KAIFA) |
4P9-F3171-00-00 |
US $6.80 |
||
|
27
|
27
4P9-F3158-00-00 Gasket(KAIFA) |
4P9-F3158-00-00 |
from US $1.22 |
||
|
28
|
28
4P9-F3181-00-00 Bolt, Hexagon Socket Head(KAIFA) |
4P9-F3181-00-00 |
from US $2.61 |
||
|
29
|
29
4C6-F3145-00-00 Oil Seal(KAIFA) |
4C6-F3145-00-00 |
from US $12.17 |
||
|
30
|
30
4P9-F3157-00-00 Ring, Piston(KAIFA) |
4P9-F3157-00-00 |
from US $1.31 |
||
|
31
|
31
1DK-F3141-00-00 Spring, Front Fork |
1DK-F3141-00-00 |
from US $11.12 |
||
|
32
|
32
4C6-F3147-00-00 O-Ring(KAIFA) |
4C6-F3147-00-00 |
from US $0.94 |
||
|
33
|
33
4P9-F3113-00-00 Collar(KAIFA) |
4P9-F3113-00-00 |
from US $4.39 |
||
|
34
|
34
4P9-F3155-00-00 Ring, Felt(KAIFA) |
4P9-F3155-00-00 |
from US $0.43 |
||
|
35
|
35
4P9-F3154-00-00 Cap |
4P9-F3154-00-00 |
from US $1.44 |
||
|
36
|
36
4P9-F331G-00-00 Cover |
4P9-F331G-00-00 |
from US $2.52 |
||
|
37
|
37
4P9-F3191-00-00 Seal, Dust(KAIFA) |
4P9-F3191-00-00 |
from US $2.93 |
||
|
38
|
38
2PE-F3340-00-00 Under Bracket Comp |
2PE-F3340-00-00 |
from US $202.32 |
||
|
39
|
39
3KW-F3462-00-00 Seal, Steering |
3KW-F3462-00-00 |
from US $2.70 |
||
|
40
|
40
1CE-F3346-00-00 Bolt 1 |
1CE-F3346-00-00 |
from US $2.18 |
||
|
41
|
41
4P9-F3153-00-00 Ring, Snap(KAIFA) |
4P9-F3153-00-00 |
from US $0.43 |
||
|
42
|
42
93399-99942-00 Bearing |
93399-99942-00 |
from US $36.49 |
||
|
43
|
43
4C6-F3414-00-00 Race, Ball 4 |
4C6-F3414-00-00 |
from US $7.18 |
||
|
44
|
44
4C6-F3413-00-00 Race, Ball 3 |
4C6-F3413-00-00 |
from US $7.18 |
||
|
45
|
45
4C6-F341D-00-00 Retainer, Ball Bearing 2 |
4C6-F341D-00-00 |
from US $5.90 |
||
|
46
|
46
4C6-F3416-00-00 Cover, Ball Race 2 |
4C6-F3416-00-00 |
from US $2.57 |
||
|
47
|
47
901-79258-11-00 Nut |
901-79258-11-00 |
from US $5.44 |
||
|
48
|
48
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $2.08 |
||
|
49
|
49
4VP-F3418-00-00 Washer, Special |
4VP-F3418-00-00 |
from US $2.59 |
||
|
50
|
50
1CH-H5131-00-00 Reflector, Rear 1 |
1CH-H5131-00-00 |
US $6.92 |
||
| replacement | |||||
|
50
|
50
1CH-H5131-01-00 REFLECTOR, REAR 1 |
1CH-H5131-01-00 |
US $7.40 |
||
|
51
|
51
2SW-H5122-00-00 Bracket, Reflector 2 |
2SW-H5122-00-00 |
US $7.18 |
||
|
52
|
52
958-07060-14-00
Bolt, Flange
|
958-07060-14-00 |
— | ||
| replacement | |||||
|
52
|
52
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
53
|
53
2SW-H5112-00-00 Bracket, Reflector 1 |
2SW-H5112-00-00 |
US $7.18 |
||
|
54
|
54
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.52 |
||
| replacement | |||||
|
54
|
54
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
55
|
55
17C-F3415-00-00 Cover, Ball Race 1 |
17C-F3415-00-00 |
from US $4.10 |
||
