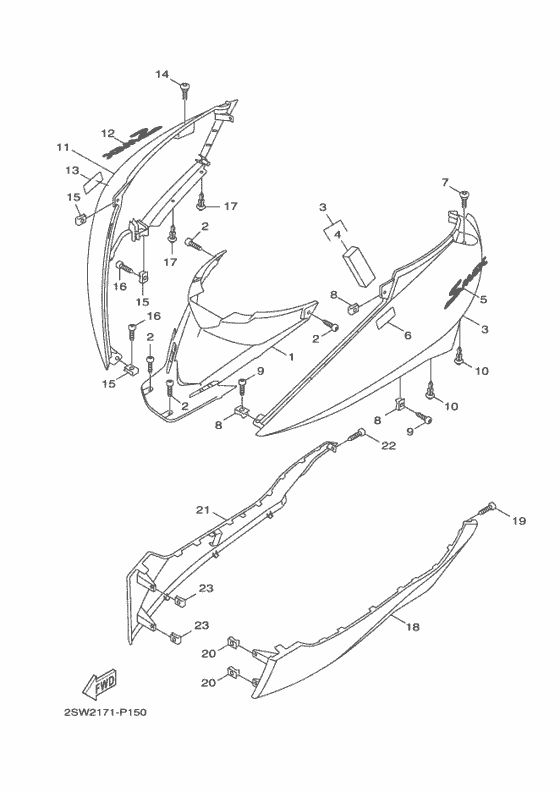

Side cover Diagram Yamaha XC155 SMAX
- Year
- 2015
- Colour
- Mat Titan 1
- Model code
- 2SW2
- Sales region
- Canada (010)
- Engine Capacity
- 155
- Color Variant
- B
- Model
- SMAX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DK-F1711-00-00
Cover, Side 1
|
1DK-F1711-00-00 |
— | ||
| replacement | |||||
|
1
|
1
1DK-F1711-01-00 Cover, Side 1 |
1DK-F1711-01-00 |
from US $10.24 |
||
|
2
|
2
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
3
|
3
1DK-XF172-00-P4 Cover, Side 2UR MT1 |
1DK-XF172-00-P4 |
from US $56.23 |
||
|
4
|
4
1B6-F1717-00-00 Damper |
1B6-F1717-00-00 |
from US $1.35 |
||
|
5
|
5
1DK-F173B-00-00 Emblem 3D |
1DK-F173B-00-00 |
US $21.02 |
||
|
6
|
6
5PJ-F118K-00-00 Label, Caution |
5PJ-F118K-00-00 |
from US $2.52 |
||
|
7
|
7
901-49058-04-00 Screw |
901-49058-04-00 |
from US $1.28 |
||
|
8
|
8
901-83058-16-00 Nut, Spring |
901-83058-16-00 |
from US $0.18 |
||
| replacement | |||||
|
8
|
8
90183-05827-00 Nut, Spring |
90183-05827-00 |
from US $1.42 |
||
|
9
|
9
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
9
|
9
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
10
|
10
90269-06803-00 Rivet |
90269-06803-00 |
from US $1.66 |
||
|
11
|
11
1DK-F1731-00-P4 Cover, Side 3UR MT1 |
1DK-F1731-00-P4 |
from US $53.88 |
||
|
12
|
12
1DK-F174B-00-00 Emblem 3D |
1DK-F174B-00-00 |
US $21.02 |
||
|
13
|
13
5PJ-F118K-10-00 Label, Caution |
5PJ-F118K-10-00 |
from US $2.61 |
||
|
14
|
14
901-49058-04-00 Screw |
901-49058-04-00 |
from US $1.28 |
||
|
15
|
15
901-83058-16-00 Nut, Spring |
901-83058-16-00 |
from US $0.18 |
||
| replacement | |||||
|
15
|
15
90183-05827-00 Nut, Spring |
90183-05827-00 |
from US $1.42 |
||
|
16
|
16
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
16
|
16
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
17
|
17
90269-06803-00 Rivet |
90269-06803-00 |
from US $1.66 |
||
|
18
|
18
1DK-F7482-00-P2 Mole, FootrestUR MT1 |
1DK-F7482-00-P2 |
from US $44.41 |
||
|
19
|
19
90169-05001-00 Tapping Screw |
90169-05001-00 |
from US $1.12 |
||
|
20
|
20
901-83058-16-00 Nut, Spring |
901-83058-16-00 |
from US $0.18 |
||
| replacement | |||||
|
20
|
20
90183-05827-00 Nut, Spring |
90183-05827-00 |
from US $1.42 |
||
|
21
|
21
1DK-F7492-00-P2 Mole, Footrest 2UR MT1 |
1DK-F7492-00-P2 |
from US $44.41 |
||
|
22
|
22
90169-05001-00 Tapping Screw |
90169-05001-00 |
from US $1.12 |
||
|
23
|
23
901-83058-16-00 Nut, Spring |
901-83058-16-00 |
from US $0.18 |
||
| replacement | |||||
|
23
|
23
90183-05827-00 Nut, Spring |
90183-05827-00 |
from US $1.42 |
||
