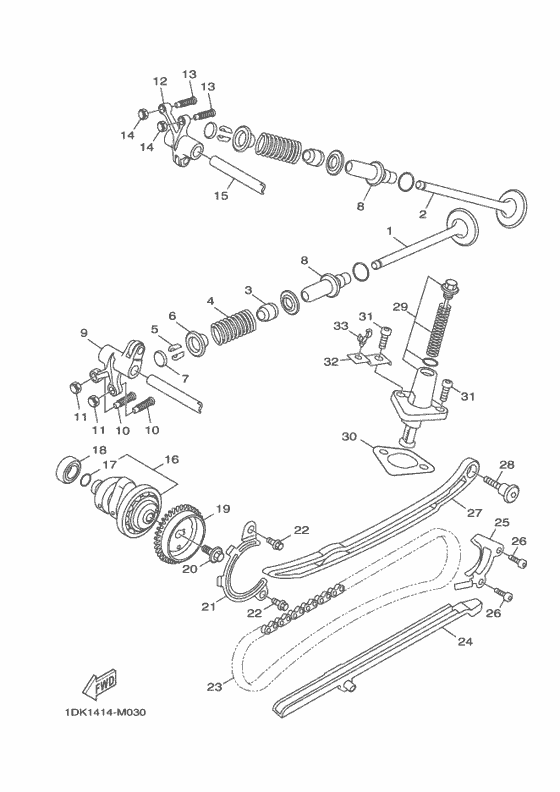

Valve Diagram Yamaha XC155 SMAX
- Year
- 2015
- Colour
- Mat Titan 1
- Model code
- 2SW2
- Sales region
- Canada (010)
- Engine Capacity
- 155
- Color Variant
- B
- Model
- SMAX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52S-E2111-00-00 Valve, Intake |
52S-E2111-00-00 |
from US $9.58 |
||
|
2
|
2
52S-E2121-00-00 Valve, Exhaust |
52S-E2121-00-00 |
from US $15.17 |
||
|
3
|
3
52S-E2119-00-00 Seal, Valve Stem |
52S-E2119-00-00 |
from US $4 |
||
|
4
|
4
3C1-E2113-00-00 Spring, Valve Inner |
3C1-E2113-00-00 |
from US $7.63 |
||
|
5
|
5
1WG-12118-00-00 Valve Spring Retainer Lock |
1WG-12118-00-00 |
from US $2.08 |
||
|
6
|
6
52S-E2117-00-00 Retainer, Valve Spring |
52S-E2117-00-00 |
from US $3.74 |
||
|
7
|
7
52S-E2169-10-00 Pad, Adjusting |
52S-E2169-10-00 |
from US $6.93 |
||
|
8
|
8
52S-E2126-00-00 Seat, Valve Spring 2 |
52S-E2126-00-00 |
from US $1.03 |
||
|
9
|
9
52S-E2151-00-00 Arm, Valve Rocker |
52S-E2151-00-00 |
from US $94.09 |
||
|
10
|
10
33S-E2159-01-00 Screw, Valve Adjusting |
33S-E2159-01-00 |
from US $2.41 |
||
|
11
|
11
901-70058-03-00 Nut |
901-70058-03-00 |
from US $1.42 |
||
|
12
|
12
52S-E2161-00-00 Arm, Valve Rocker 2 |
52S-E2161-00-00 |
from US $94.09 |
||
|
13
|
13
33S-E2159-01-00 Screw, Valve Adjusting |
33S-E2159-01-00 |
from US $2.41 |
||
|
14
|
14
901-70058-03-00 Nut |
901-70058-03-00 |
from US $1.42 |
||
|
15
|
15
52S-E2156-00-00 Shaft, Rocker 2 |
52S-E2156-00-00 |
from US $7.56 |
||
|
16
|
16
1DK-E2170-00-00 Camshaft Assy 1 |
1DK-E2170-00-00 |
from US $63.16 |
||
|
17
|
17
93210-09859-00 O-Ring |
93210-09859-00 |
from US $1.35 |
||
| replacements | |||||
|
17
|
17
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.39 |
||
|
17
|
17
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.39 |
||
|
18
|
18
933-06001-Y9-00 Bearing |
933-06001-Y9-00 |
from US $6.61 |
||
|
19
|
19
52S-E1540-00-00 Cam Chain Sprocket Assy 1 |
52S-E1540-00-00 |
from US $16.51 |
||
|
20
|
20
52S-E2157-00-00 Bolt |
52S-E2157-00-00 |
from US $1.70 |
||
|
21
|
21
1B9-E111F-00-00 Plate |
1B9-E111F-00-00 |
from US $7.94 |
||
|
22
|
22
95022-06010-00 Bolt, Flange |
95022-06010-00 |
from US $1.66 |
||
|
23
|
23
945-68750-96-00 Chain |
945-68750-96-00 |
from US $24.77 |
||
|
24
|
24
52S-E2231-00-00 Guide, Stopper 1 |
52S-E2231-00-00 |
from US $5.22 |
||
|
25
|
25
52S-E2233-00-00 Plate, Guide Stopper 1 |
52S-E2233-00-00 |
from US $1.64 |
||
|
26
|
26
90110-06182-00 Bolt |
90110-06182-00 |
from US $1.07 |
||
| replacement | |||||
|
26
|
26
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
27
|
27
1DK-E2241-00-00 Guide, Stopper 2 |
1DK-E2241-00-00 |
from US $16.33 |
||
|
28
|
28
52S-E2228-00-00 Bolt |
52S-E2228-00-00 |
from US $1.98 |
||
|
29
|
29
5LW-E2210-00-00 Tensioner Assy, Cam Chain |
5LW-E2210-00-00 |
from US $16.43 |
||
|
30
|
30
4DH-E2213-01-00 Gasket, Tensioner Case |
4DH-E2213-01-00 |
from US $1.46 |
||
|
31
|
31
91312-06016-00 Bolt |
91312-06016-00 |
from US $1.18 |
||
| replacement | |||||
|
31
|
31
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
32
|
32
1DK-E2492-00-00 Clamp 2 |
1DK-E2492-00-00 |
from US $1.53 |
||
|
33
|
33
90464-25803-00 Clamp |
90464-25803-00 |
from US $1.39 |
||
