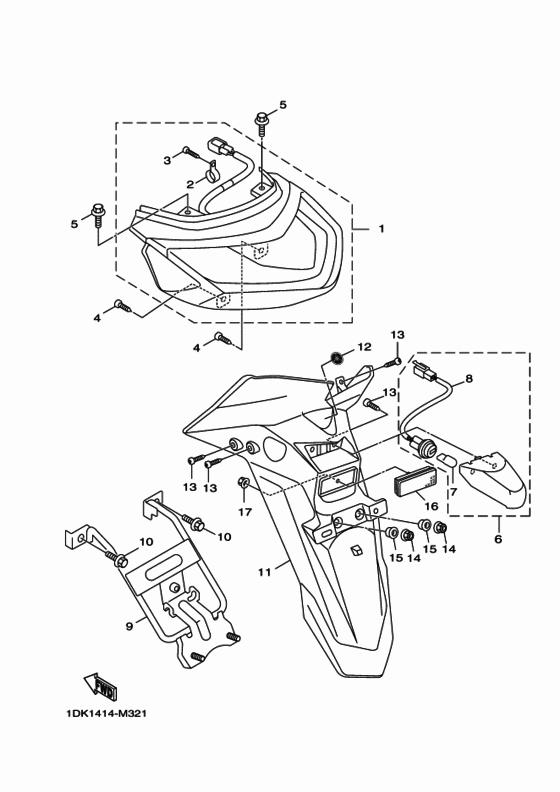

Taillight Diagram Yamaha XC155 Majesty S
- Year
- 2014
- Colour
- Silky White
- Model code
- 2LD1
- Sales region
- Japan (010)
- Engine Capacity
- 155
- Color Variant
- A
- Model
- Majesty S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DK-H4700-10-00 Taillight Assy |
1DK-H4700-10-00 |
US $339.87 |
||
|
2
|
2
1CD-H4746-00-00 Plate, Seat Base |
1CD-H4746-00-00 |
from US $2.66 |
||
|
3
|
3
1CD-H4724-00-00 Screw, Lens Fitting |
1CD-H4724-00-00 |
from US $1.70 |
||
|
4
|
4
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
4
|
4
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
5
|
5
901-19068-21-00
Bolt, With Washer
|
901-19068-21-00 |
— | ||
| replacement | |||||
|
5
|
5
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.52 |
||
|
6
|
6
1DK-H4745-00-00 Licence Light Unit Assy |
1DK-H4745-00-00 |
US $111.36 |
||
|
7
|
7
5FM-H4347-00-00 Bulb (12V-5W) |
5FM-H4347-00-00 |
from US $7.65 |
||
| replacement | |||||
|
7
|
7
5FM-H4347-10-00 Bulb |
5FM-H4347-10-00 |
from US $4.03 |
||
|
8
|
8
1DK-H4735-00-00 Socket Cord Assy |
1DK-H4735-00-00 |
US $28.05 |
||
|
9
|
9
1DK-F1640-00-00 Rear Stay Comp |
1DK-F1640-00-00 |
from US $13.88 |
||
|
10
|
10
958-02060-12-00
Bolt, Flange
|
958-02060-12-00 |
— | ||
| replacements | |||||
|
10
|
10
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
10
|
10
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
11
|
11
1DK-F1685-01-00 Bracket, License |
1DK-F1685-01-00 |
US $56.09 |
||
|
12
|
12
1DK-F1609-00-00 Emblem |
1DK-F1609-00-00 |
from US $9.74 |
||
|
13
|
13
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
13
|
13
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
14
|
14
90179-06833-00 Nut |
90179-06833-00 |
from US $1.98 |
||
|
15
|
15
90387-06868-00 Collar |
90387-06868-00 |
from US $1.37 |
||
|
16
|
16
46P-H5130-00-00 Rear Reflector Assy |
46P-H5130-00-00 |
from US $4.39 |
||
|
17
|
17
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
