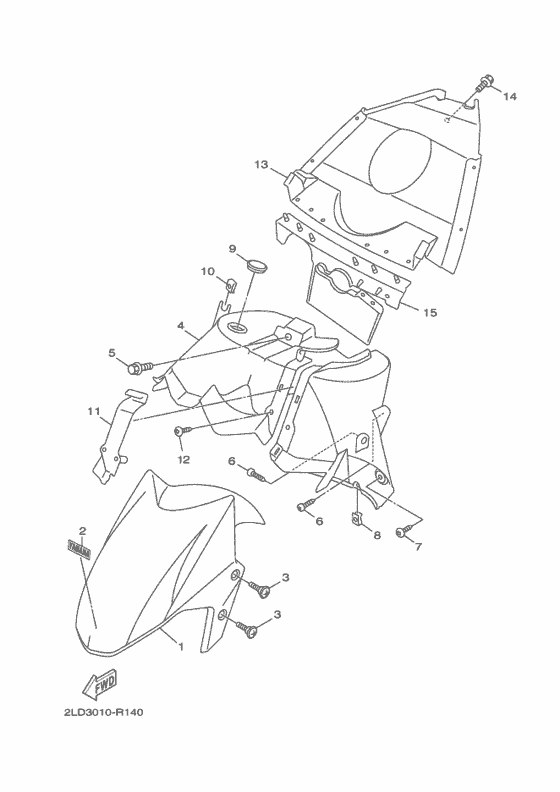

Fender Diagram Yamaha XC155 Majesty S
- Year
- 2016
- Colour
- Vivid Yellow Solid 2
- Model code
- 2LD3
- Sales region
- Japan (010)
- Engine Capacity
- 155
- Color Variant
- A
- Model
- Majesty S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DK-F1511-00-P0 Fender, FrontUR VYS2 |
1DK-F1511-00-P0 |
from US $47.74 |
||
|
2
|
2
1VC-F747A-20-00 Graphic 1 |
1VC-F747A-20-00 |
US $3.12 |
||
|
3
|
3
90154-06807-00 Screw, Binding |
90154-06807-00 |
from US $2.72 |
||
|
4
|
4
1DK-F1552-00-00 Fender, Inner |
1DK-F1552-00-00 |
US $48.77 |
||
|
5
|
5
901-19068-21-00
Bolt, With Washer
|
901-19068-21-00 |
— | ||
| replacement | |||||
|
5
|
5
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.52 |
||
|
6
|
6
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
6
|
6
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
7
|
7
90169-05001-00 Tapping Screw |
90169-05001-00 |
from US $1.12 |
||
|
8
|
8
901-83058-16-00 Nut, Spring |
901-83058-16-00 |
from US $0.18 |
||
| replacement | |||||
|
8
|
8
90183-05827-00 Nut, Spring |
90183-05827-00 |
from US $1.42 |
||
|
9
|
9
5ML-F2417-00-00 Plug |
5ML-F2417-00-00 |
from US $1.30 |
||
|
10
|
10
90183-06801-00 Nut, Spring |
90183-06801-00 |
from US $1.56 |
||
|
11
|
11
1DK-F1523-00-00 Plate 1 |
1DK-F1523-00-00 |
from US $1.39 |
||
|
12
|
12
97707-40010-00 Screw, Tapping |
97707-40010-00 |
from US $0.40 |
||
|
13
|
13
1DK-F1629-00-00 Guard, Mud |
1DK-F1629-00-00 |
from US $14.44 |
||
|
14
|
14
901-19068-21-00
Bolt, With Washer
|
901-19068-21-00 |
— | ||
| replacement | |||||
|
14
|
14
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.52 |
||
|
15
|
15
2LD-F1691-00-00 Flap |
2LD-F1691-00-00 |
from US $11.48 |
||
