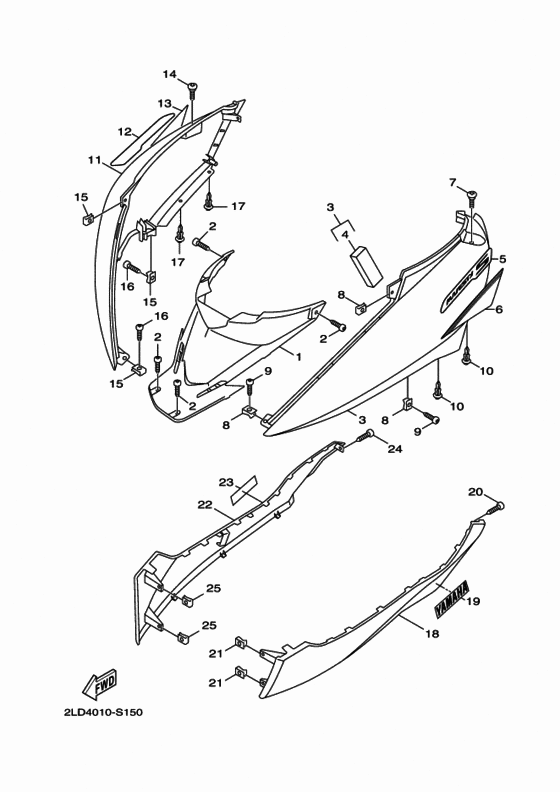

Side cover Diagram Yamaha XC155 Majesty S
- Year
- 2017
- Colour
- Deep Purplish Blue Metallic C
- Model code
- 2LD4
- Sales region
- Japan (010)
- Engine Capacity
- 155
- Color Variant
- A
- Model
- Majesty S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DK-F1711-00-00
Cover, Side 1
|
1DK-F1711-00-00 |
— | ||
| replacement | |||||
|
1
|
1
1DK-F1711-01-00 Cover, Side 1 |
1DK-F1711-01-00 |
from US $10.24 |
||
|
2
|
2
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
3
|
3
1DK-XF172-10-PC Cover, Side 2UR DPBMC |
1DK-XF172-10-PC |
US $56.23 |
||
|
4
|
4
1B6-F1717-00-00 Damper |
1B6-F1717-00-00 |
from US $1.35 |
||
|
5
|
5
2LD-F173B-10-00 Emblem 3D |
2LD-F173B-10-00 |
US $45.73 |
||
|
6
|
6
1DK-F1783-00-00 Emblem 3 |
1DK-F1783-00-00 |
US $20.83 |
||
|
7
|
7
901-49058-04-00 Screw |
901-49058-04-00 |
from US $1.28 |
||
|
8
|
8
901-83058-16-00 Nut, Spring |
901-83058-16-00 |
from US $0.18 |
||
| replacement | |||||
|
8
|
8
90183-05827-00 Nut, Spring |
90183-05827-00 |
from US $1.42 |
||
|
9
|
9
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
9
|
9
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
10
|
10
90269-06803-00 Rivet |
90269-06803-00 |
from US $1.66 |
||
|
11
|
11
1DK-F1731-00-PC Cover, Side 3UR DPBMC |
1DK-F1731-00-PC |
US $53.88 |
||
|
12
|
12
2LD-F174B-10-00 Emblem 3D |
2LD-F174B-10-00 |
US $45.73 |
||
|
13
|
13
1DK-F1784-00-00 Emblem 4 |
1DK-F1784-00-00 |
US $20.83 |
||
|
14
|
14
901-49058-04-00 Screw |
901-49058-04-00 |
from US $1.28 |
||
|
15
|
15
901-83058-16-00 Nut, Spring |
901-83058-16-00 |
from US $0.18 |
||
| replacement | |||||
|
15
|
15
90183-05827-00 Nut, Spring |
90183-05827-00 |
from US $1.42 |
||
|
16
|
16
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
16
|
16
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
17
|
17
90269-06803-00 Rivet |
90269-06803-00 |
from US $1.66 |
||
|
18
|
18
1DK-F7482-00-P7 Mole, FootrestUR DPBMC |
1DK-F7482-00-P7 |
US $96.57 |
||
|
19
|
19
4C6-F747A-50-00 Graphic 1 |
4C6-F747A-50-00 |
US $8.78 |
||
|
20
|
20
90169-05001-00 Tapping Screw |
90169-05001-00 |
from US $1.12 |
||
|
21
|
21
901-83058-16-00 Nut, Spring |
901-83058-16-00 |
from US $0.18 |
||
| replacement | |||||
|
21
|
21
90183-05827-00 Nut, Spring |
90183-05827-00 |
from US $1.42 |
||
|
22
|
22
1DK-F7492-00-P7 Mole, Footrest 2UR DPBMC |
1DK-F7492-00-P7 |
US $96.57 |
||
|
23
|
23
4C6-F747A-50-00 Graphic 1 |
4C6-F747A-50-00 |
US $8.78 |
||
|
24
|
24
90169-05001-00 Tapping Screw |
90169-05001-00 |
from US $1.12 |
||
|
25
|
25
901-83058-16-00 Nut, Spring |
901-83058-16-00 |
from US $0.18 |
||
| replacement | |||||
|
25
|
25
90183-05827-00 Nut, Spring |
90183-05827-00 |
from US $1.42 |
||
