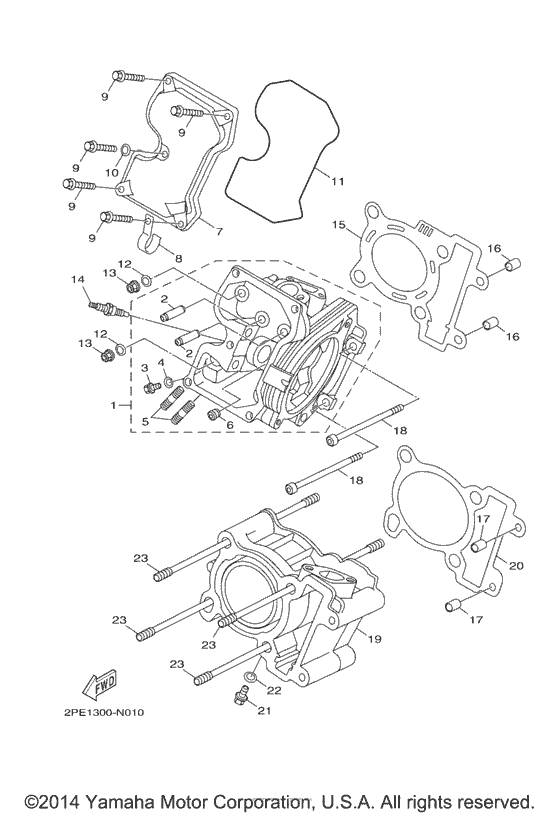

Cylinder Diagram Yamaha XC155 SMAX
- Year
- 2015
- Model code
- 2SW1
- Sales region
- USA
- Базовая модель
- XC155FGY
- Engine Capacity
- 155
- Model
- SMAX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DK-E1102-00-00 Cylinder Head Assy |
1DK-E1102-00-00 |
from US $186.62 |
||
|
2
|
2
5YP-E1133-10-00 Guide, Valve 1 |
5YP-E1133-10-00 |
US $40.03 |
||
|
3
|
3
95022-06010-00 Bolt, Flange |
95022-06010-00 |
from US $1.50 |
||
|
4
|
4
904-30060-14-00 Gasket |
904-30060-14-00 |
from US $1.13 |
||
|
5
|
5
90116-08806-00 Bolt, Stud |
90116-08806-00 |
from US $0.70 |
||
|
6
|
6
903-40128-13-00 Plug, Straight Screw |
903-40128-13-00 |
from US $1.67 |
||
|
7
|
7
52S-E1191-00-00 Cover, Cylinder Head 1 |
52S-E1191-00-00 |
from US $9.58 |
||
|
8
|
8
904-62128-01-00 Clamp |
904-62128-01-00 |
from US $1.58 |
||
|
9
|
9
95022-06020-00 Bolt, Flange |
95022-06020-00 |
from US $1.38 |
||
|
10
|
10
904-30060-14-00 Gasket |
904-30060-14-00 |
from US $1.13 |
||
|
11
|
11
52S-E1193-01-00 Gasket, Head Cover 1 |
52S-E1193-01-00 |
from US $2.43 |
||
|
12
|
12
902-01088-59-00 Washer, Plate |
902-01088-59-00 |
from US $1.65 |
||
|
13
|
13
901-79085-18-00 Nut |
901-79085-18-00 |
from US $0.31 |
||
|
14
|
14
947-00004-15-00 Plug, Spark |
947-00004-15-00 |
US $16.94 |
||
| replacements | |||||
|
14
|
14
CPR-8EA90-00-00 element |
CPR-8EA90-00-00 |
US $8.46 |
||
|
14
|
14
947-01004-15-00 Cpr8Ea-9 Ngk Splug |
947-01004-15-00 |
from US $14.74 |
||
|
15
|
15
52S-E1181-00-00 Gasket, Cylinder Head 1 |
52S-E1181-00-00 |
from US $10.19 |
||
|
16
|
16
91810-14807-00 Pin, Dowel |
91810-14807-00 |
from US $0.29 |
||
|
17
|
17
91810-14807-00 Pin, Dowel |
91810-14807-00 |
from US $0.29 |
||
|
18
|
18
91312-06100-00 Bolt, Socket Head |
91312-06100-00 |
US $2.24 |
||
| replacement | |||||
|
18
|
18
91311-06100-00
Bolt, Socket Head
|
91311-06100-00 |
— | ||
|
19
|
19
52S-E1311-00-00 Cylinder 1 |
52S-E1311-00-00 |
from US $127.22 |
||
|
20
|
20
52S-E1351-01-00 Gasket, Cylinder |
52S-E1351-01-00 |
from US $3.98 |
||
|
21
|
21
95022-06010-00 Bolt, Flange |
95022-06010-00 |
from US $1.50 |
||
|
22
|
22
904-30060-14-00 Gasket |
904-30060-14-00 |
from US $1.13 |
||
|
23
|
23
52S-E1391-00-00 Bolt, Stud 1 |
52S-E1391-00-00 |
from US $1.87 |
||
