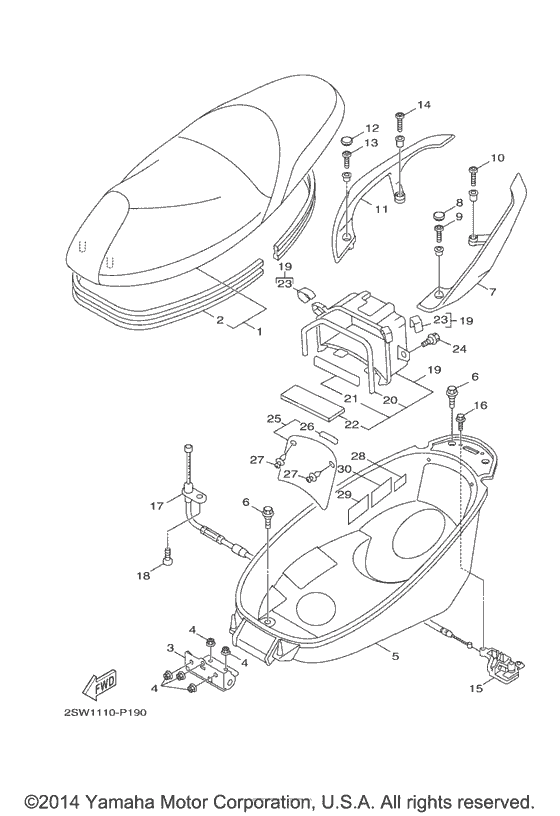

Seat Diagram Yamaha XC155 SMAX
- Year
- 2015
- Model code
- 2SW1
- Sales region
- USA
- Базовая модель
- XC155FGY
- Engine Capacity
- 155
- Model
- SMAX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DK-F4730-01-00 Double Seat Assy |
1DK-F4730-01-00 |
from US $174.65 |
||
| replacement | |||||
|
1
|
1
1DK-F4730-02-00 Double Seat Assy |
1DK-F4730-02-00 |
US $177.99 |
||
|
2
|
2
1DK-F475M-00-00 Seal |
1DK-F475M-00-00 |
from US $12.37 |
||
|
3
|
3
1DK-F4772-11-00 Hinge Assy |
1DK-F4772-11-00 |
from US $68.24 |
||
|
4
|
4
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
5
|
5
1DK-F473R-00-00 Box 1 |
1DK-F473R-00-00 |
from US $57.92 |
||
|
6
|
6
901-09068-85-00 Bolt |
901-09068-85-00 |
from US $1.70 |
||
|
7
|
7
1DK-F474A-00-P4 Assist, GripUse for Color MAT TITAN 1 ( MT1 / 0620 ) |
1DK-F474A-00-P4 |
from US $44.24 |
||
|
7
|
7
1DK-F474A-00-P2 Assist, GripUR DPBM14 |
1DK-F474A-00-P2 |
US $41.99 |
||
|
8
|
8
1DK-F476M-00-00 Cap, Casing |
1DK-F476M-00-00 |
from US $1.22 |
||
|
9
|
9
90111-08029-00 Bolt, Hex. Socket Button |
90111-08029-00 |
from US $1.84 |
||
|
10
|
10
90111-08030-00 Bolt, Hex. Socket Button |
90111-08030-00 |
from US $1.98 |
||
|
11
|
11
1DK-F474W-00-P2 Assist, Grip 2UR DPBM14 |
1DK-F474W-00-P2 |
US $47.88 |
||
|
11
|
11
1DK-F474W-00-P4 Assist, Grip 2Use for Color MAT TITAN 1 ( MT1 / 0620 ) |
1DK-F474W-00-P4 |
from US $44.24 |
||
|
12
|
12
1DK-F476M-00-00 Cap, Casing |
1DK-F476M-00-00 |
from US $1.22 |
||
|
13
|
13
90111-08029-00 Bolt, Hex. Socket Button |
90111-08029-00 |
from US $1.84 |
||
|
14
|
14
90111-08030-00 Bolt, Hex. Socket Button |
90111-08030-00 |
from US $1.98 |
||
|
15
|
15
5ML-F4780-00-00 Seat Lock Assy |
5ML-F4780-00-00 |
from US $18.20 |
||
|
16
|
16
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
16
|
16
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
17
|
17
1DK-F478E-01-00 Cable, Seat Lock |
1DK-F478E-01-00 |
from US $18.34 |
||
|
18
|
18
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
19
|
19
1DK-XH21B-01-00 Box, Battery |
1DK-XH21B-01-00 |
from US $13.39 |
||
|
20
|
20
4C6-F4737-00-00 Damper, Seat |
4C6-F4737-00-00 |
from US $9.35 |
||
|
21
|
21
4C6-H2121-00-00 Pad, Battery |
4C6-H2121-00-00 |
from US $1.15 |
||
|
22
|
22
1P3-F4747-01-00 Damper, Seat |
1P3-F4747-01-00 |
from US $1.30 |
||
|
23
|
23
1DK-F4721-00-00 Support, Cushion |
1DK-F4721-00-00 |
from US $2.54 |
||
|
24
|
24
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.66 |
||
|
25
|
25
1DK-XH219-00-00 Cover, Battery |
1DK-XH219-00-00 |
from US $5.72 |
||
|
26
|
26
4C6-F4723-00-00 Damper, Seat |
4C6-F4723-00-00 |
from US $1.84 |
||
|
27
|
27
90269-06806-00 Rivet |
90269-06806-00 |
from US $2.52 |
||
|
28
|
28
4JK-F8446-01-00 Label, Caution |
4JK-F8446-01-00 |
from US $1.31 |
||
|
29
|
29
5PJ-F4877-01-00 Label, Caution |
5PJ-F4877-01-00 |
from US $0.58 |
||
|
30
|
30
2SW-F1668-00-00 Label, Tire |
2SW-F1668-00-00 |
US $1.19 |
||
