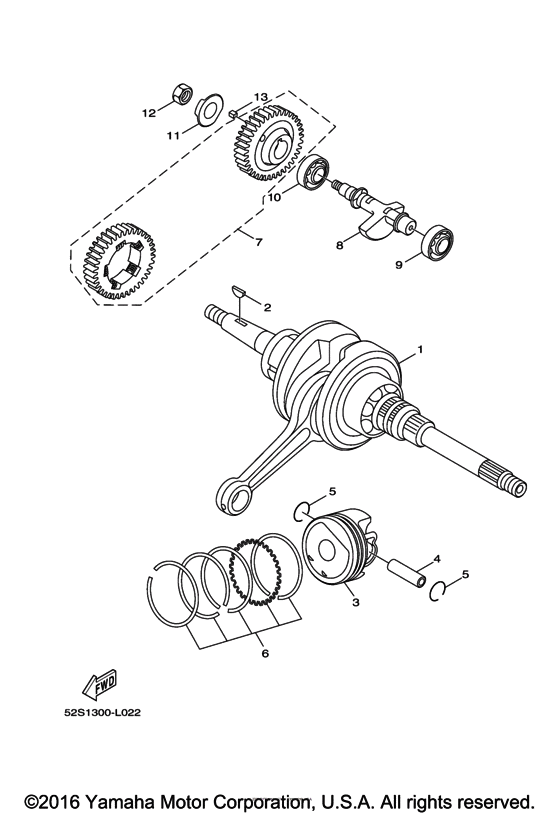

Crankshaft & Piston Diagram Yamaha XC155 SMAX
- Year
- 2016
- Model code
- 2SW3
- Sales region
- USA
- Базовая модель
- XC155GR
- Engine Capacity
- 155
- Model
- SMAX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52S-XE140-00-00 Crankshaft Assy |
52S-XE140-00-00 |
from US $314.10 |
||
|
2
|
2
902-80030-45-00
Key, Woodruff
|
902-80030-45-00 |
— | ||
| replacement | |||||
|
2
|
2
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
3
|
3
52S-E1631-00-00 Piston (Std) |
52S-E1631-00-00 |
from US $105.23 |
||
|
4
|
4
52S-E1633-00-00 Pin, Piston |
52S-E1633-00-00 |
from US $5.72 |
||
|
5
|
5
93450-16068-00 Circlip |
93450-16068-00 |
from US $1.66 |
||
|
6
|
6
52S-E1603-00-00 Piston Ring Set (Std) |
52S-E1603-00-00 |
from US $13.81 |
||
|
7
|
7
52S-WE153-00-00 Driven Gear Comp |
52S-WE153-00-00 |
from US $87.32 |
||
|
8
|
8
52S-E1454-00-00 Weight 1 |
52S-E1454-00-00 |
from US $29.86 |
||
|
9
|
9
933-06203-XK-00 Bearing |
933-06203-XK-00 |
from US $17.57 |
||
|
10
|
10
933-06203-XY-00 Bearing |
933-06203-XY-00 |
from US $9.68 |
||
|
11
|
11
902-15108-03-00 Washer, Lock |
902-15108-03-00 |
from US $1.56 |
||
|
12
|
12
90170-10804-00 Nut |
90170-10804-00 |
from US $2.34 |
||
|
13
|
13
90282-05031-00 Key, Straight |
90282-05031-00 |
from US $1.15 |
||
