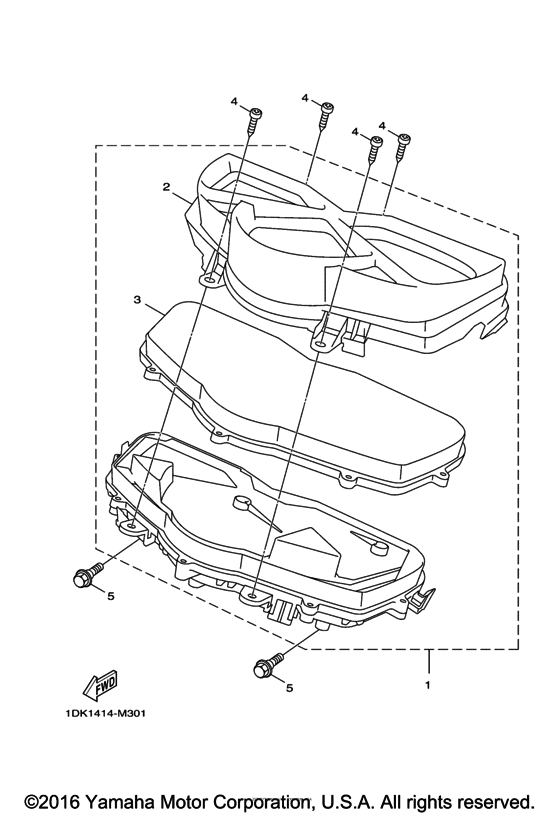

Meter Diagram Yamaha XC155 SMAX
- Year
- 2016
- Model code
- 2SW3
- Sales region
- USA
- Базовая модель
- XC155GR
- Engine Capacity
- 155
- Model
- SMAX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2LD-H3510-30-00 Speedometer Assy |
2LD-H3510-30-00 |
US $321.03 |
||
| replacement | |||||
|
1
|
1
2LD-H3510-31-00 SPEEDOMETER ASSY |
2LD-H3510-31-00 |
US $342.14 |
||
|
2
|
2
2LD-H353E-00-00 Case, Meter Upper |
2LD-H353E-00-00 |
from US $32.06 |
||
|
3
|
3
1DK-H353K-00-00 Glass Plate |
1DK-H353K-00-00 |
from US $47.14 |
||
|
4
|
4
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
4
|
4
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
5
|
5
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.66 |
||
