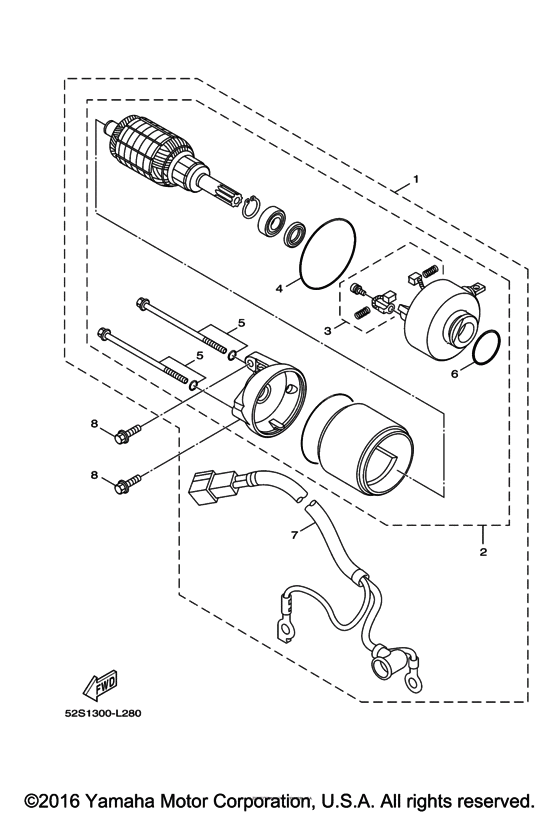

Starting motor Diagram Yamaha XC155 SMAX
- Year
- 2016
- Model code
- 2SW3
- Sales region
- USA
- Базовая модель
- XC155GR
- Engine Capacity
- 155
- Model
- SMAX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52S-H1800-00-00 Starting Motor Assy |
52S-H1800-00-00 |
from US $145.51 |
||
| replacements | |||||
|
1
|
1
52S-H1800-20-00 Starting Motor Ass |
52S-H1800-20-00 |
from US $145.51 |
||
|
1
|
1
52S-H1800-21-00 |
52S-H1800-21-00 |
US $130.86 |
||
|
2
|
2
52S-H1890-00-00 Motor Assy |
52S-H1890-00-00 |
from US $138.71 |
||
| replacement | |||||
|
2
|
2
52S-H1890-21-00 |
52S-H1890-21-00 |
US $112.37 |
||
|
3
|
3
3KW-H1801-00-00 Brush Set |
3KW-H1801-00-00 |
from US $15.97 |
||
|
4
|
4
93210-55669-00 O-Ring |
93210-55669-00 |
from US $2.77 |
||
|
5
|
5
5S9-H1828-00-00 Screw 2 |
5S9-H1828-00-00 |
from US $2.48 |
||
|
6
|
6
4FP-H1821-00-00 Cover, Switch |
4FP-H1821-00-00 |
from US $2.86 |
||
|
7
|
7
52S-H183G-00-00 Cord Comp |
52S-H183G-00-00 |
from US $13.12 |
||
|
8
|
8
975-02065-25-00 Bolt, With Washer |
975-02065-25-00 |
US $1.48 |
||
