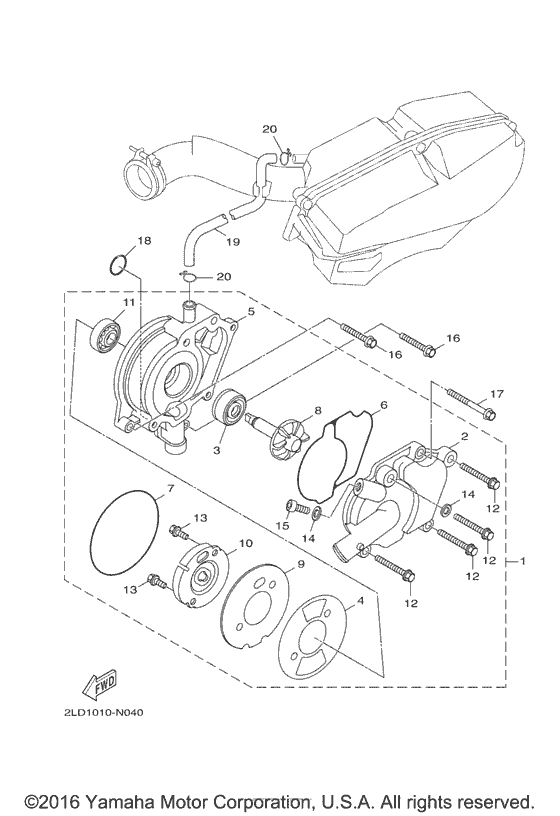

Water pump Diagram Yamaha XC155 SMAX
- Year
- 2016
- Model code
- 2SW3
- Sales region
- USA
- Базовая модель
- XC155GR
- Engine Capacity
- 155
- Model
- SMAX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DK-E2420-00-00 Water Pump Assy |
1DK-E2420-00-00 |
from US $122.67 |
||
|
2
|
2
1DK-E2422-00-00 Cover, Housing |
1DK-E2422-00-00 |
from US $20.66 |
||
|
3
|
3
93103-10011-00 Oil Seal |
93103-10011-00 |
from US $29.13 |
||
|
4
|
4
52S-E2428-00-00 Gasket, Housing Cover 2 |
52S-E2428-00-00 |
from US $4.41 |
||
|
5
|
5
52S-E1185-00-00 Cover, Cylinder Head Side 3 |
52S-E1185-00-00 |
from US $30.40 |
||
|
6
|
6
52S-E2449-00-00 Gasket, Water Pump |
52S-E2449-00-00 |
from US $4.25 |
||
|
7
|
7
52S-E2439-00-00 O-Ring |
52S-E2439-00-00 |
from US $2.75 |
||
|
8
|
8
52S-E2450-00-00 Impeller Shaft Assy |
52S-E2450-00-00 |
from US $11.63 |
||
|
9
|
9
52S-E1951-00-00 Plate |
52S-E1951-00-00 |
from US $2.50 |
||
|
10
|
10
52S-E1952-00-00 Plate |
52S-E1952-00-00 |
from US $7.16 |
||
|
11
|
11
93306-000Y1-00 Bearing |
93306-000Y1-00 |
from US $10.01 |
||
|
12
|
12
95022-06025-00 Bolt, Flange |
95022-06025-00 |
from US $1.52 |
||
|
13
|
13
95022-06012-00 Bolt, Flange |
95022-06012-00 |
from US $1.18 |
||
|
14
|
14
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
15
|
15
91312-06012-00 Bolt, Hext. Socket Head |
91312-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
16
|
16
95022-06025-00 Bolt, Flange |
95022-06025-00 |
from US $1.52 |
||
|
17
|
17
95022-06050-00 Bolt, Flange |
95022-06050-00 |
from US $1.42 |
||
|
18
|
18
93210-19809-00 O-Ring |
93210-19809-00 |
from US $1.81 |
||
| replacement | |||||
|
18
|
18
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
19
|
19
2SW-E1166-00-00 Pipe, Breather 1 |
2SW-E1166-00-00 |
from US $10.91 |
||
|
20
|
20
90467-13042-00 Clip |
90467-13042-00 |
from US $1.98 |
||
| replacements | |||||
|
20
|
20
90467-13M13-00 Clip |
90467-13M13-00 |
from US $1.98 |
||
|
20
|
20
90467-13844-00
Clip
|
90467-13844-00 |
— | ||
