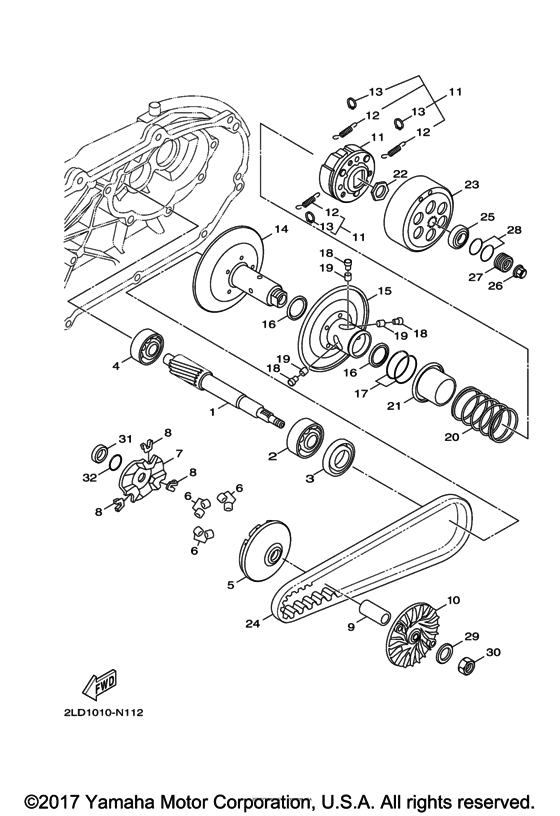

Clutch Diagram Yamaha XC155 SMAX
- Year
- 2017
- Model code
- 2SW5
- Sales region
- USA
- Базовая модель
- XC155HB
- Engine Capacity
- 155
- Model
- SMAX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DK-E6111-00-00 Gear, Primary Drive |
1DK-E6111-00-00 |
from US $69.37 |
||
|
2
|
2
933-06272-X6-00 Bearing |
933-06272-X6-00 |
from US $17.23 |
||
|
3
|
3
931-02228-20-00 Oil Seal |
931-02228-20-00 |
from US $5.22 |
||
|
4
|
4
93306-302Y1-00 Bearing |
93306-302Y1-00 |
from US $15.44 |
||
| replacements | |||||
|
4
|
4
93306-30212-00 Bearing |
93306-30212-00 |
from US $16.84 |
||
|
4
|
4
93306-30201-00 Bearing |
93306-30201-00 |
from US $15.44 |
||
|
5
|
5
1DK-E7620-00-00 Primary Sliding Sheave Comp |
1DK-E7620-00-00 |
from US $34.29 |
||
|
6
|
6
1DK-E7632-00-00 Weight |
1DK-E7632-00-00 |
US $6.51 |
||
| replacement | |||||
|
6
|
6
1DK-E7632-01-00 Weight |
1DK-E7632-01-00 |
US $5.65 |
||
|
7
|
7
1DK-E7623-00-00 Cam |
1DK-E7623-00-00 |
from US $10.04 |
||
|
8
|
8
1DK-E7653-00-00 Slider |
1DK-E7653-00-00 |
US $6.38 |
||
| replacement | |||||
|
8
|
8
1DK-E7653-01-00 Slider |
1DK-E7653-01-00 |
from US $4.18 |
||
|
9
|
9
1DK-E7674-10-00 Collar, Guide |
1DK-E7674-10-00 |
from US $18.29 |
||
|
10
|
10
1DK-E7611-00-00 Sheave, Primary Fixed |
1DK-E7611-00-00 |
from US $23.60 |
||
|
11
|
11
1DK-E6620-00-00 Clutch Carrier Assy |
1DK-E6620-00-00 |
from US $101.36 |
||
|
12
|
12
1DK-E6626-00-00 Spring, Clutch Weight 1 |
1DK-E6626-00-00 |
from US $2.59 |
||
|
13
|
13
1DK-E6819-00-00 Circlip, Clutch |
1DK-E6819-00-00 |
from US $0.22 |
||
|
14
|
14
1DK-WE766-00-00 Secondary Fixed Sheave Comp |
1DK-WE766-00-00 |
from US $93.02 |
||
|
15
|
15
1DK-E7670-00-00 Secondary Sliding Sheave |
1DK-E7670-00-00 |
from US $51.93 |
||
|
16
|
16
1DK-E7465-00-00 Seal |
1DK-E7465-00-00 |
from US $10.35 |
||
|
17
|
17
1DK-E7465-10-00 Seal |
1DK-E7465-10-00 |
from US $2.93 |
||
|
18
|
18
1DK-E7664-00-00 Pin, Guide |
1DK-E7664-00-00 |
from US $2.74 |
||
|
19
|
19
1DK-E7674-00-00 Collar, Guide |
1DK-E7674-00-00 |
from US $2.65 |
||
|
20
|
20
1DK-E7683-00-00 Spring, Secondary |
1DK-E7683-00-00 |
from US $11.39 |
||
|
21
|
21
1DK-E7684-00-00 Seat, Secondary Spring |
1DK-E7684-00-00 |
from US $9.72 |
||
|
22
|
22
1DK-E7668-00-00 Nut |
1DK-E7668-00-00 |
from US $2.65 |
||
|
23
|
23
1DK-E6611-00-00 Clutch Housing Comp |
1DK-E6611-00-00 |
from US $42.79 |
||
|
24
|
24
1DK-E7641-00-00 V-Belt |
1DK-E7641-00-00 |
from US $60.82 |
||
|
25
|
25
933-06082-Y4-00 Bearing |
933-06082-Y4-00 |
from US $22.07 |
||
|
26
|
26
901-79108-03-00 Nut |
901-79108-03-00 |
from US $1.42 |
||
|
27
|
27
52S-E7649-00-00 Spacer |
52S-E7649-00-00 |
from US $14.44 |
||
|
28
|
28
932-10288-02-00 O-Ring |
932-10288-02-00 |
from US $2.43 |
||
|
29
|
29
90201-120A5-00 Washer, Plate |
90201-120A5-00 |
from US $4.39 |
||
|
30
|
30
95307-12700-00 Nut |
95307-12700-00 |
from US $2.35 |
||
| replacement | |||||
|
30
|
30
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.36 |
||
|
31
|
31
1DK-E6375-00-00 COLLAR |
1DK-E6375-00-00 |
from US $3.68 |
||
|
32
|
32
932-10168-04-00 O-Ring |
932-10168-04-00 |
from US $0.72 |
||
