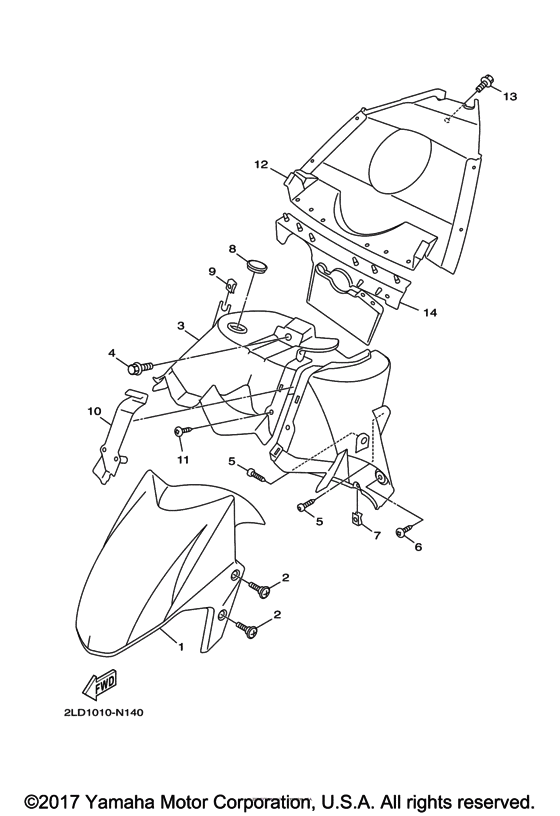

Fender Diagram Yamaha XC155 SMAX
- Year
- 2017
- Model code
- 2SW5
- Sales region
- USA
- Базовая модель
- XC155HB
- Engine Capacity
- 155
- Model
- SMAX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DK-F1511-00-P0 Fender, FrontUse for Color Black Metallic X ( SMX / 0903 ) |
1DK-F1511-00-P0 |
from US $47.74 |
||
|
2
|
2
90154-06807-00 Screw, Binding |
90154-06807-00 |
from US $2.72 |
||
|
3
|
3
2PE-F1552-00-00 Fender, Inner |
2PE-F1552-00-00 |
US $21.76 |
||
|
4
|
4
901-19068-21-00
Bolt, With Washer
|
901-19068-21-00 |
— | ||
| replacement | |||||
|
4
|
4
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.52 |
||
|
5
|
5
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
5
|
5
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
6
|
6
90169-05001-00 Tapping Screw |
90169-05001-00 |
from US $1.12 |
||
|
7
|
7
901-83058-16-00 Nut, Spring |
901-83058-16-00 |
from US $0.18 |
||
| replacement | |||||
|
7
|
7
90183-05827-00 Nut, Spring |
90183-05827-00 |
from US $1.42 |
||
|
8
|
8
5ML-F2417-00-00 Plug |
5ML-F2417-00-00 |
from US $1.30 |
||
|
9
|
9
90183-06801-00 Nut, Spring |
90183-06801-00 |
from US $1.56 |
||
|
10
|
10
1DK-F1523-00-00 Plate 1 |
1DK-F1523-00-00 |
from US $1.39 |
||
|
11
|
11
97707-40010-00 Screw, Tapping |
97707-40010-00 |
from US $0.40 |
||
|
12
|
12
1DK-F1629-00-00 Guard, Mud |
1DK-F1629-00-00 |
from US $14.44 |
||
|
13
|
13
901-19068-21-00
Bolt, With Washer
|
901-19068-21-00 |
— | ||
| replacement | |||||
|
13
|
13
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.52 |
||
|
14
|
14
2LD-F1691-00-00 Flap |
2LD-F1691-00-00 |
from US $11.48 |
||
