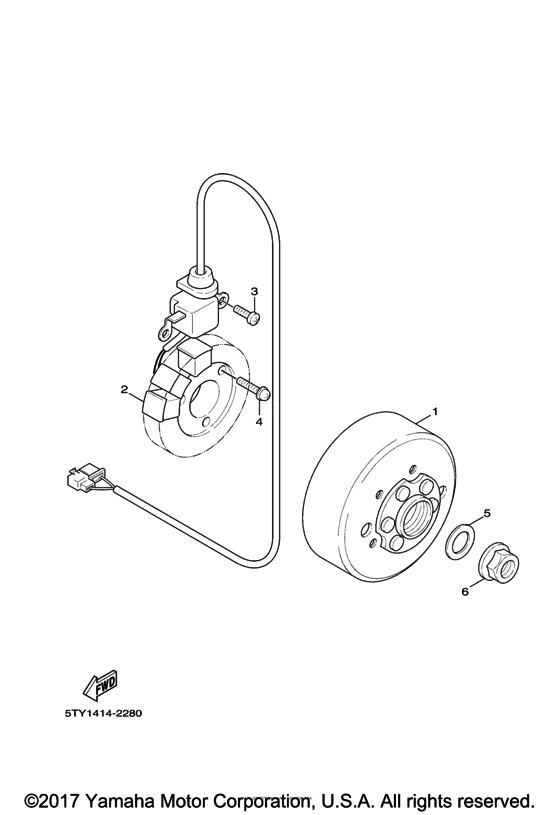

Generator Diagram Yamaha XC155 SMAX
- Year
- 2017
- Model code
- 2SW5
- Sales region
- USA
- Базовая модель
- XC155HB
- Engine Capacity
- 155
- Model
- SMAX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52S-H1450-00-00 Rotor Assy |
52S-H1450-00-00 |
US $68.06 |
||
|
2
|
2
1DK-H1410-00-00 Stator Assy |
1DK-H1410-00-00 |
from US $94.75 |
||
|
3
|
3
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.66 |
||
|
4
|
4
913-12060-30-00
Bolt
|
913-12060-30-00 |
— | ||
| replacement | |||||
|
4
|
4
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.25 |
||
|
5
|
5
90201-12688-00 Washer, Plate |
90201-12688-00 |
from US $2.64 |
||
| replacement | |||||
|
5
|
5
90201-124E4-00 Washer, Plate |
90201-124E4-00 |
from US $2.64 |
||
|
6
|
6
90179-12004-00 Nut |
90179-12004-00 |
from US $2.70 |
||
