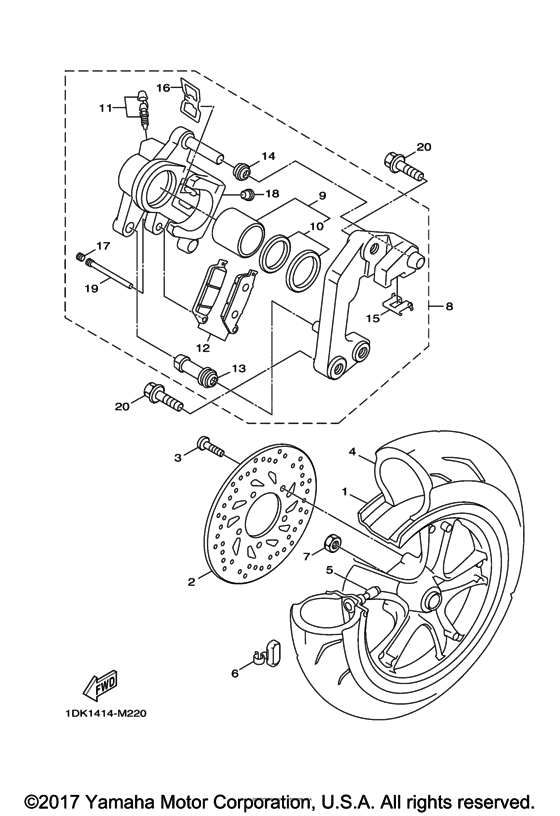

Rear wheel Diagram Yamaha XC155 SMAX
- Year
- 2017
- Model code
- 2SW5
- Sales region
- USA
- Базовая модель
- XC155HB
- Engine Capacity
- 155
- Model
- SMAX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1DK-F5338-00-35 Cast Wheel, RearSL |
1DK-F5338-00-35 |
from US $264.65 |
||
|
2
|
2
1DK-F582W-00-00 Disc, Rear Brake 2 |
1DK-F582W-00-00 |
from US $78.46 |
||
|
3
|
3
901-11088-34-00 Bolt, Hex. Socket Button |
901-11088-34-00 |
from US $1.70 |
||
|
4
|
4
941-13138-00-00 Tire |
941-13138-00-00 |
US $237.13 |
||
|
5
|
5
939-00008-34-00 Valve, Rim |
939-00008-34-00 |
from US $13.39 |
||
|
6
|
6
5MT-25398-00-00 Balancer, Wheel (10G)UN |
5MT-25398-00-00 |
from US $8.46 |
||
|
6
|
6
5MT-25398-20-00 Balancer, Wheel (30G)UN |
5MT-25398-20-00 |
from US $8.46 |
||
|
6
|
6
5MT-25398-10-00 Balancer, Wheel (20G)UN |
5MT-25398-10-00 |
from US $8.46 |
||
|
7
|
7
901-85168-00-00 Nut, Self-Locking |
901-85168-00-00 |
from US $9.56 |
||
|
8
|
8
1DK-F580W-20-00 Caliper Assy, Rear 2 |
1DK-F580W-20-00 |
from US $158.17 |
||
|
9
|
9
1DK-W0057-10-00 Piston Assy, Caliper |
1DK-W0057-10-00 |
from US $11.72 |
||
|
10
|
10
5S9-W0047-00-00 Caliper Seal Kit |
5S9-W0047-00-00 |
from US $9.76 |
||
|
11
|
11
1MS-W0048-00-00 Bleed Screw Kit |
1MS-W0048-00-00 |
from US $2.93 |
||
|
12
|
12
1DK-W0046-00-00 Brake Pad Kit 2 |
1DK-W0046-00-00 |
from US $42.46 |
||
|
13
|
13
5ML-F5927-00-00 Boot, Caliper |
5ML-F5927-00-00 |
from US $2.61 |
||
|
14
|
14
5ML-F5937-00-00 Boot 2 |
5ML-F5937-00-00 |
from US $2.02 |
||
|
15
|
15
1DK-F5919-00-00 Support, Pad |
1DK-F5919-00-00 |
from US $2.74 |
||
|
16
|
16
1DK-F5919-10-00 Support, Pad |
1DK-F5919-10-00 |
from US $2.74 |
||
|
17
|
17
1MS-F5139-00-00 Plug, Blind |
1MS-F5139-00-00 |
from US $2.55 |
||
|
18
|
18
5AG-F5845-00-00 Cap, Indicator |
5AG-F5845-00-00 |
from US $1.44 |
||
|
19
|
19
1DK-F5924-00-00 Pin, Pad |
1DK-F5924-00-00 |
from US $3.98 |
||
|
20
|
20
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
