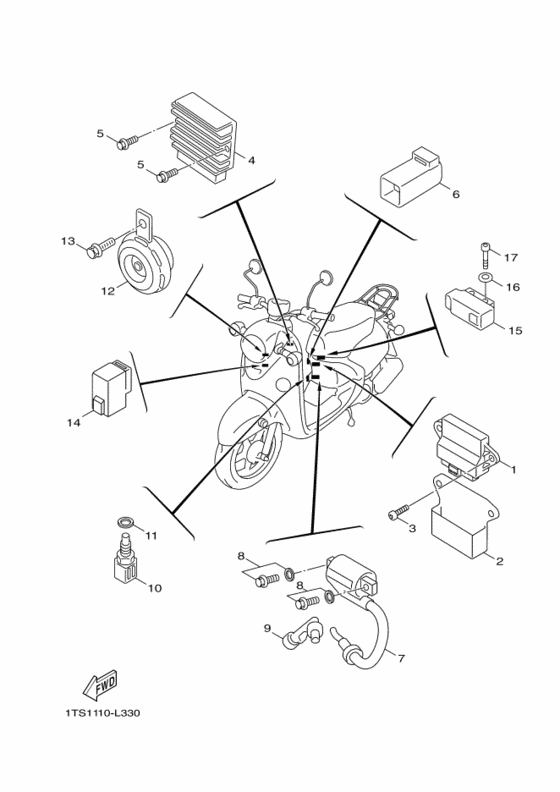

Electrical 1 Diagram Yamaha XC50 Vino
- Year
- 2013
- Colour
- Light Yellowish Gray Solid 4 (LYNS4; 1163)
- Model code
- 1TS2
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- Vino
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TS-H591A-00-00 Engine Control Unit Assy |
1TS-H591A-00-00 |
US $286.70 |
||
|
2
|
2
1TS-H1614-00-00 Protector |
1TS-H1614-00-00 |
from US $1.10 |
||
|
3
|
3
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
3
|
3
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
4
|
4
3B3-H1960-00-00 Rectifier & Regulator Assy |
3B3-H1960-00-00 |
from US $198.95 |
||
|
5
|
5
95023-06025-00 Bolt, Flange (Small Head) |
95023-06025-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.66 |
||
|
6
|
6
5WC-H1940-00-00 Starter Relay Assy |
5WC-H1940-00-00 |
from US $18.79 |
||
| replacements | |||||
|
6
|
6
5WC-H1940-01-00 STARTER RELAY ASSY |
5WC-H1940-01-00 |
from US $18.79 |
||
|
6
|
6
5WC-H1940-02-00 Starter Relay Assy |
5WC-H1940-02-00 |
from US $18.34 |
||
|
7
|
7
1P5-H2310-00-00 Ignition Coil Assy |
1P5-H2310-00-00 |
US $77.48 |
||
|
8
|
8
97507-06525-00 Bolt, With Washer |
97507-06525-00 |
from US $1.40 |
||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
9
|
9
1CD-H2370-00-00 Plug Cap Assy |
1CD-H2370-00-00 |
from US $16.33 |
||
| replacement | |||||
|
9
|
9
1CD-H2370-01-00 Plug Cap Assy |
1CD-H2370-01-00 |
from US $15.08 |
||
|
10
|
10
5YP-85790-00-00 Thermosensor Assy |
5YP-85790-00-00 |
from US $30.18 |
||
|
11
|
11
90201-12172-00 Washer, Plate |
90201-12172-00 |
from US $1.42 |
||
|
12
|
12
5ST-H3371-40-00 Horn |
5ST-H3371-40-00 |
from US $17.60 |
||
|
13
|
13
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
14
|
14
4HC-81950-00-00 Relay Assy4HC-00 |
4HC-81950-00-00 |
from US $31.59 |
||
|
15
|
15
5VU-82576-01-00 Sensor, Lean Angle |
5VU-82576-01-00 |
from US $82.07 |
||
| replacement | |||||
|
15
|
15
5VU-82576-03-00 SENSOR LEAN ANGLE |
5VU-82576-03-00 |
from US $80.69 |
||
|
16
|
16
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
16
|
16
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
16
|
16
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
17
|
17
91317-04025-00 Bolt |
91317-04025-00 |
from US $1.42 |
||
