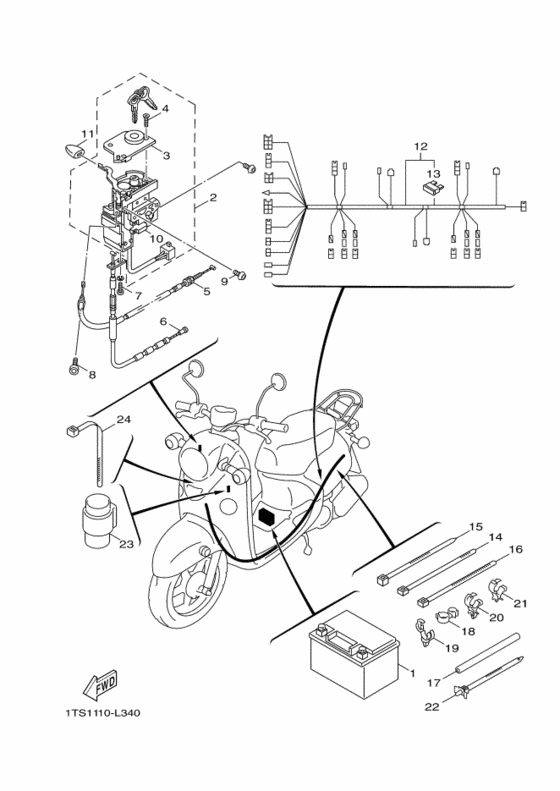

Electrical 2 Diagram Yamaha XC50 Vino
- Year
- 2013
- Colour
- Light Yellowish Gray Solid 4 (LYNS4; 1163)
- Model code
- 1TS2
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- Vino
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5PJ-H2100-00-00
Gtx5Lbs & Gt5Lbs -Ba
|
5PJ-H2100-00-00 |
— | ||
| replacements | |||||
|
1
|
1
GTX-5LBS0-00-00
element
|
GTX-5LBS0-00-00 |
— | ||
|
1
|
1
YTX-5LBS0-00-00 Bat Ytx5L-Bs (Ptx5L-Bs) Yu |
YTX-5LBS0-00-00 |
US $99.32 |
||
|
2
|
2
5ST-WH202-40-00 Key Set |
5ST-WH202-40-00 |
US $89.60 |
||
|
3
|
3
5ST-F831B-00-00 Case, Unit 1 |
5ST-F831B-00-00 |
from US $4.39 |
||
|
4
|
4
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
5
|
5
5ST-F637E-00-00 Cable, Control 1 |
5ST-F637E-00-00 |
from US $16.15 |
||
|
6
|
6
5ST-F478E-00-00 Cable, Seat Lock |
5ST-F478E-00-00 |
from US $18.14 |
||
|
7
|
7
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
7
|
7
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
8
|
8
90110-05800-00 Bolt, Hexagon Socket Head |
90110-05800-00 |
from US $0.45 |
||
|
9
|
9
90149-06813-00 Screw |
90149-06813-00 |
from US $0.11 |
||
|
10
|
10
90149-06814-00 Screw |
90149-06814-00 |
from US $0.11 |
||
|
11
|
11
5SU-F836X-00-00 Knob, 1 |
5SU-F836X-00-00 |
from US $2.04 |
||
|
12
|
12
1TS-H2590-00-00 Wire Harness Assy |
1TS-H2590-00-00 |
US $261.94 |
||
| replacement | |||||
|
12
|
12
1TS-H2590-01-00 Wire Harness Assy |
1TS-H2590-01-00 |
US $258.01 |
||
|
13
|
13
5ML-H2151-10-00 Fuse (15A)15A |
5ML-H2151-10-00 |
from US $1.19 |
||
|
14
|
14
90464-12812-00 Clamp |
90464-12812-00 |
from US $1.19 |
||
|
15
|
15
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
16
|
16
90464-60800-00 Clamp |
90464-60800-00 |
from US $1.30 |
||
|
17
|
17
1TS-F117G-00-00 Protector |
1TS-F117G-00-00 |
from US $0.56 |
||
|
18
|
18
904-64178-03-00 Clamp |
904-64178-03-00 |
from US $1.35 |
||
|
19
|
19
90464-20803-00 Clamp |
90464-20803-00 |
from US $1.24 |
||
|
20
|
20
90464-16803-00 Clamp |
90464-16803-00 |
from US $1.30 |
||
|
21
|
21
90464-30801-00 Clamp |
90464-30801-00 |
from US $2.92 |
||
|
22
|
22
904-64208-13-00 Clamp |
904-64208-13-00 |
from US $1.08 |
||
|
23
|
23
5XN-83350-00-00 Flasher Relay Assy |
5XN-83350-00-00 |
from US $32.16 |
||
|
24
|
24
904-64258-04-00 Clamp |
904-64258-04-00 |
from US $2.14 |
||
