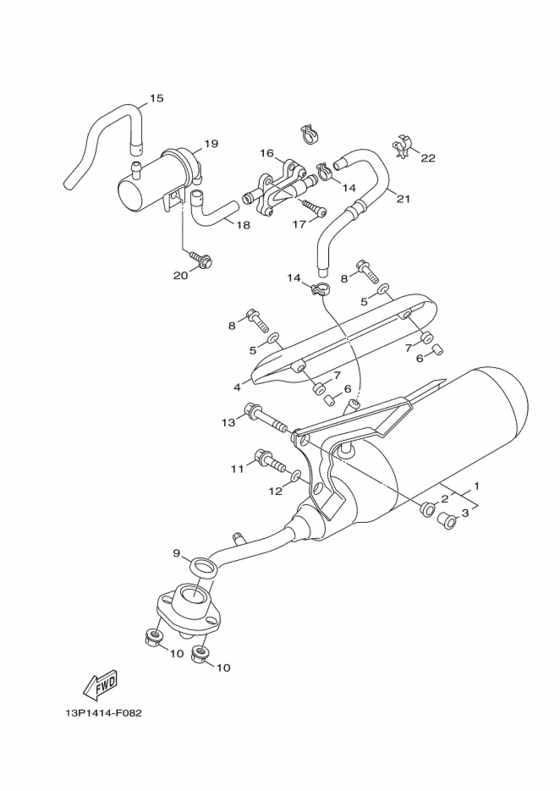

Exhaust Diagram Yamaha XC50 Vino
- Year
- 2013
- Colour
- Light Yellowish Gray Solid 4 (LYNS4; 1163)
- Model code
- 1TS2
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- Vino
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TS-E4610-00-98 Exhaust Pipe Assy 1LGB |
1TS-E4610-00-98 |
US $505.84 |
||
| replacement | |||||
|
1
|
1
1TS-WE461-00-98 PROTECTOR, HANDLEBLGB |
1TS-WE461-00-98 |
US $511.85 |
||
|
2
|
2
4VP-E4445-00-00 Grommet |
4VP-E4445-00-00 |
from US $2.99 |
||
|
3
|
3
4VP-E4779-00-00 Collar |
4VP-E4779-00-00 |
from US $2.58 |
||
|
4
|
4
3P3-E4708-00-00 Protector Assy |
3P3-E4708-00-00 |
from US $43.99 |
||
|
5
|
5
90201-06055-00 Washer, Plate |
90201-06055-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
90201-06049-00 Washer, Plate |
90201-06049-00 |
from US $1.70 |
||
|
6
|
6
90387-06817-00 Collar |
90387-06817-00 |
from US $1.28 |
||
| replacement | |||||
|
6
|
6
90387-06023-00 Collar 8121444900 |
90387-06023-00 |
from US $1.28 |
||
|
7
|
7
90480-12804-00 Grommet |
90480-12804-00 |
from US $2.38 |
||
|
8
|
8
98980-06016-00 Screw, Bind (705) |
98980-06016-00 |
from US $1.52 |
||
|
9
|
9
1P4-E4613-00-00 Gasket, Exhaust Pipe |
1P4-E4613-00-00 |
from US $6.80 |
||
|
10
|
10
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
10
|
10
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
11
|
11
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
12
|
12
902-01088-52-00 Washer, Plate |
902-01088-52-00 |
from US $1.13 |
||
|
13
|
13
90105-08002-00 Bolt, Flange |
90105-08002-00 |
from US $1.84 |
||
|
14
|
14
90468-08812-00 Clip |
90468-08812-00 |
from US $1.70 |
||
|
15
|
15
13P-E4885-00-00 Hose, Bend 5 |
13P-E4885-00-00 |
from US $8.23 |
||
|
16
|
16
3B3-E4803-00-00 Air Induction System Assy |
3B3-E4803-00-00 |
from US $26.95 |
||
|
17
|
17
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
|
18
|
18
13P-E4884-00-00 Hose, Bend 4 |
13P-E4884-00-00 |
from US $3.76 |
||
|
19
|
19
13P-E4806-00-00 Air Filter |
13P-E4806-00-00 |
from US $8.64 |
||
|
20
|
20
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.66 |
||
|
21
|
21
13P-E4883-00-00 Hose, Bend 3 |
13P-E4883-00-00 |
from US $10.35 |
||
|
22
|
22
90464-20801-00 Clamp |
90464-20801-00 |
from US $0.72 |
||
