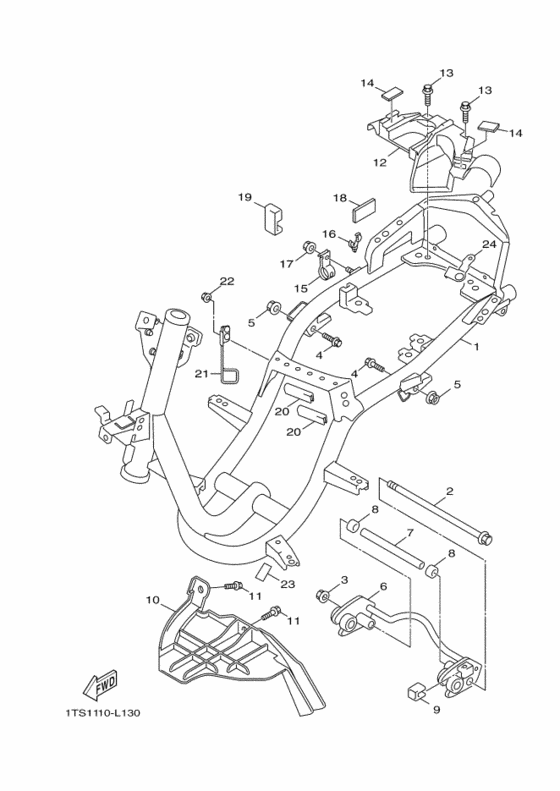

Frame Diagram Yamaha XC50 Vino
- Year
- 2013
- Colour
- Light Yellowish Gray Solid 4 (LYNS4; 1163)
- Model code
- 1TS2
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- Vino
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TS-F1110-00-33 Frame CompYB |
1TS-F1110-00-33 |
US $250.09 |
||
|
2
|
2
5ST-F1481-00-00 Bolt, Engine Mounting 1 |
5ST-F1481-00-00 |
from US $7.34 |
||
|
3
|
3
9560L-10200-00 Bolt, Stud |
9560L-10200-00 |
from US $1.03 |
||
| replacement | |||||
|
3
|
3
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
4
|
4
95827-10045-00 Bolt, Flange |
95827-10045-00 |
from US $2.55 |
||
| replacement | |||||
|
4
|
4
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.77 |
||
|
5
|
5
90185-10801-00 Nut, Self-Locking |
90185-10801-00 |
from US $5.38 |
||
|
6
|
6
5ST-F1410-10-00 Engine Bracket Comp |
5ST-F1410-10-00 |
from US $40.34 |
||
|
7
|
7
5ST-F1459-00-00 Spacer |
5ST-F1459-00-00 |
from US $2.86 |
||
|
8
|
8
5ST-F7235-00-00 Cover, Dust |
5ST-F7235-00-00 |
from US $1.31 |
||
|
9
|
9
5ST-F139X-00-00 Damper |
5ST-F139X-00-00 |
from US $2.52 |
||
|
10
|
10
5ST-F117G-00-00 Protector |
5ST-F117G-00-00 |
from US $9.43 |
||
|
11
|
11
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.07 |
||
| replacement | |||||
|
11
|
11
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
12
|
12
13P-F1652-00-00 Protector |
13P-F1652-00-00 |
from US $5.63 |
||
|
13
|
13
90119-06079-00 Bolt, With Washer |
90119-06079-00 |
from US $1.56 |
||
|
14
|
14
13P-F8371-00-00 Damper |
13P-F8371-00-00 |
from US $2.52 |
||
|
15
|
15
13P-F1374-10-00 Holder, Fuel Pipe |
13P-F1374-10-00 |
from US $4.21 |
||
|
16
|
16
904-64308-04-00 Clamp |
904-64308-04-00 |
from US $1.56 |
||
|
17
|
17
90176-06806-00 Nut, Crown |
90176-06806-00 |
from US $0.18 |
||
|
18
|
18
5SW-F622F-00-00 Damper, Locating 1 |
5SW-F622F-00-00 |
from US $0.49 |
||
|
19
|
19
37B-F117Y-00-00 Cover 1010 |
37B-F117Y-00-00 |
from US $0.63 |
||
|
20
|
20
5ML-F1541-00-00 Damper 1 |
5ML-F1541-00-00 |
from US $1.21 |
||
|
21
|
21
3P3-F1164-00-00 Holder, Cable |
3P3-F1164-00-00 |
from US $8.15 |
||
|
22
|
22
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
23
|
23
1TS-F1652-00-00 Protector |
1TS-F1652-00-00 |
from US $2.50 |
||
|
24
|
24
13P-F419F-00-00 Bracket, Canistor |
13P-F419F-00-00 |
from US $2.52 |
||
