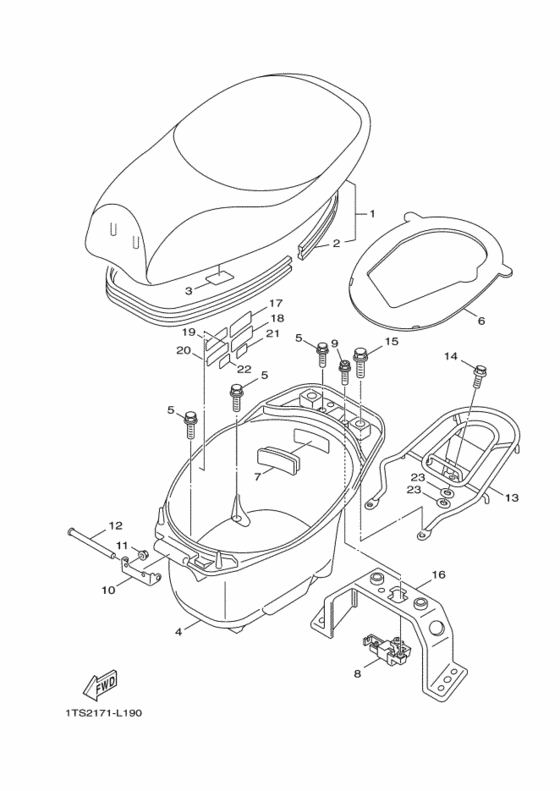

Seat Diagram Yamaha XC50 Vino
- Year
- 2013
- Colour
- Light Yellowish Gray Solid 4 (LYNS4; 1163)
- Model code
- 1TS2
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- Vino
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5ST-F4730-81-00 Double Seat Assy |
5ST-F4730-81-00 |
US $83.54 |
||
|
2
|
2
5SU-F475M-00-00 Seal |
5SU-F475M-00-00 |
from US $4.91 |
||
|
3
|
3
3KW-F139X-00-00 Damper |
3KW-F139X-00-00 |
from US $1.06 |
||
| replacement | |||||
|
3
|
3
22F-2139X-00-00 Damper |
22F-2139X-00-00 |
from US $2.91 |
||
|
4
|
4
13P-F473R-00-00 Box 1 |
13P-F473R-00-00 |
from US $28.82 |
||
| replacement | |||||
|
4
|
4
13P-F473R-10-00 Box 1 |
13P-F473R-10-00 |
from US $28.82 |
||
|
5
|
5
90109-06043-00 Bolt |
90109-06043-00 |
from US $1.63 |
||
|
6
|
6
13P-F4747-00-00 Damper, Seat |
13P-F4747-00-00 |
from US $2.25 |
||
| replacement | |||||
|
6
|
6
13P-F4747-10-00 Damper, Seat |
13P-F4747-10-00 |
from US $3.96 |
||
|
7
|
7
5SU-F482H-00-00 Cap |
5SU-F482H-00-00 |
from US $2.52 |
||
|
8
|
8
5SU-F4780-00-00 Seat Lock Assy |
5SU-F4780-00-00 |
from US $18.20 |
||
|
9
|
9
90159-06016-00 Screw, With Washer |
90159-06016-00 |
from US $1.66 |
||
|
10
|
10
5ST-F4726-00-00 Hinge, Seat |
5ST-F4726-00-00 |
from US $3.71 |
||
|
11
|
11
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
12
|
12
5SU-F4623-10-00 Pin 1 |
5SU-F4623-10-00 |
from US $0.58 |
||
|
13
|
13
3D1-F4842-00-00 Carrier, Rear |
3D1-F4842-00-00 |
from US $112.75 |
||
|
14
|
14
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
15
|
15
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
16
|
16
5ST-F474H-50-00 Bracket, Assist Grip 1 |
5ST-F474H-50-00 |
from US $21.13 |
||
|
17
|
17
3D1-F1668-00-00 Label, Tire |
3D1-F1668-00-00 |
from US $1.37 |
||
|
18
|
18
3D1-F1668-10-00
Label, Tire
|
3D1-F1668-10-00 |
— | ||
|
19
|
19
4JK-F8446-01-00 Label, Caution |
4JK-F8446-01-00 |
from US $1.31 |
||
|
20
|
20
4JK-F8446-11-00
Label, Caution
|
4JK-F8446-11-00 |
— | ||
|
21
|
21
3D1-F4875-10-00
Label 1
|
3D1-F4875-10-00 |
— | ||
|
22
|
22
3D1-F4876-11-00 Label, 2 |
3D1-F4876-11-00 |
US $1.37 |
||
|
23
|
23
3D1-F1773-00-00 Grommet |
3D1-F1773-00-00 |
from US $1.03 |
||
