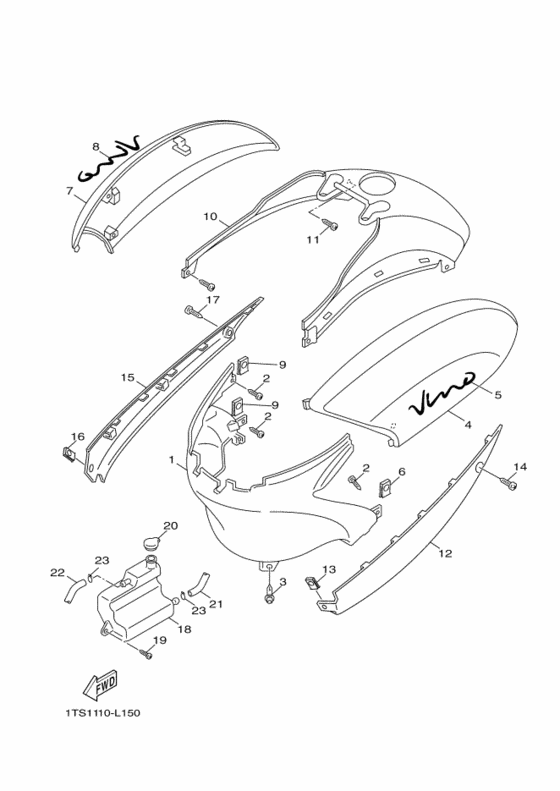

Side cover Diagram Yamaha XC50 Vino
- Year
- 2013
- Colour
- Light Yellowish Gray Solid 4 (LYNS4; 1163)
- Model code
- 1TS2
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- Vino
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13P-F1711-20-00 Cover, Side 1 |
13P-F1711-20-00 |
from US $10.30 |
||
|
2
|
2
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
2
|
2
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
3
|
3
90269-07802-00 Rivet |
90269-07802-00 |
from US $1.40 |
||
|
4
|
4
13P-F1721-00-P3 Cover, Side 2 |
13P-F1721-00-P3 |
US $40.50 |
||
|
5
|
5
5ST-F173B-10-00 Emblem 3D3D |
5ST-F173B-10-00 |
from US $16.65 |
||
|
6
|
6
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
6
|
6
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
7
|
7
13P-F1731-00-P3 Cover, Side 3 |
13P-F1731-00-P3 |
US $38.56 |
||
|
8
|
8
5ST-F174B-10-00 Emblem 3D3D |
5ST-F174B-10-00 |
from US $16.65 |
||
|
9
|
9
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
9
|
9
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
10
|
10
5ST-F1741-41-00 Cover, Side 4 |
5ST-F1741-41-00 |
from US $13.39 |
||
|
11
|
11
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
11
|
11
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
12
|
12
5ST-F7482-00-PP Mold, Footrest |
5ST-F7482-00-PP |
from US $29.03 |
||
|
13
|
13
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
13
|
13
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
14
|
14
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
14
|
14
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
15
|
15
5ST-F7492-00-PP Mold, Footrest 2 |
5ST-F7492-00-PP |
from US $29.03 |
||
|
16
|
16
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
16
|
16
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
17
|
17
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
17
|
17
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
18
|
18
5ST-F1871-00-00 Tank, Recovery |
5ST-F1871-00-00 |
from US $9.72 |
||
|
19
|
19
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
19
|
19
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
20
|
20
5CA-F1815-00-00 Cap |
5CA-F1815-00-00 |
from US $2.74 |
||
|
21
|
21
90445-09821-00 Hose |
90445-09821-00 |
US $11.05 |
||
|
22
|
22
5ST-F1877-00-00 Pipe, Overflow |
5ST-F1877-00-00 |
from US $2.59 |
||
|
23
|
23
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
23
|
23
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
