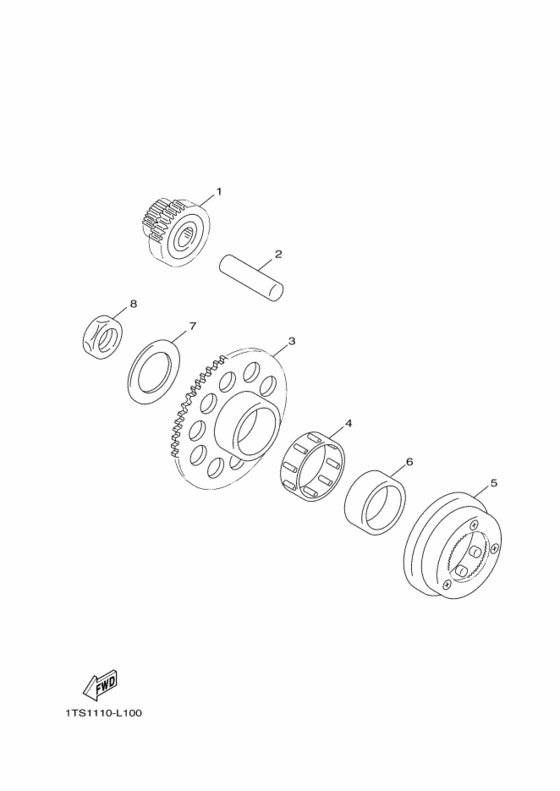

Starter Diagram Yamaha XC50 Vino
- Year
- 2013
- Colour
- Light Yellowish Gray Solid 4 (LYNS4; 1163)
- Model code
- 1TS2
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- Vino
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5ST-E5512-21-00 Gear, Idler 1 |
5ST-E5512-21-00 |
from US $10.42 |
||
|
2
|
2
5CA-E5521-00-00 Shaft 1 |
5CA-E5521-00-00 |
from US $2.36 |
||
|
3
|
3
5ST-E5524-22-00 Wheel, Starter |
5ST-E5524-22-00 |
from US $31.90 |
||
|
4
|
4
93310-23047-00 Bearing |
93310-23047-00 |
from US $12.21 |
||
|
5
|
5
5ST-E5570-10-00 Starter Clutch Assy |
5ST-E5570-10-00 |
from US $60.28 |
||
|
6
|
6
5ST-E571H-00-00 Collar, Starter |
5ST-E571H-00-00 |
from US $9.58 |
||
|
7
|
7
5ST-E5613-00-00 Washer |
5ST-E5613-00-00 |
from US $1.56 |
||
|
8
|
8
90170-22800-00 Nut |
90170-22800-00 |
from US $4.39 |
