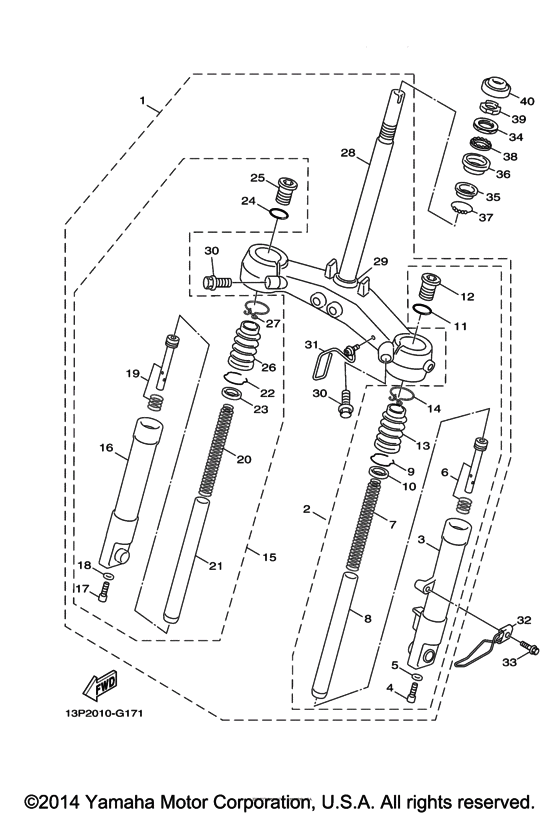

Front fork Diagram Yamaha XC50 Vino Classic
- Year
- 2015
- Sales region
- USA
- Model
- Vino Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3D1-F3100-11-00 Front Fork Assy |
3D1-F3100-11-00 |
US $306.99 |
||
| replacement | |||||
|
1
|
1
3D1-F3100-12-00 Front Fork Assy |
3D1-F3100-12-00 |
US $446.45 |
||
|
2
|
2
3D1-F3102-10-00 Front Fork Assy (L.h) |
3D1-F3102-10-00 |
US $225.95 |
||
|
3
|
3
13P-F3126-10-00 Tube, Outer (Left) |
13P-F3126-10-00 |
from US $63.59 |
||
|
4
|
4
3GF-F3181-00-00 Bolt, Hexagon Socket Head |
3GF-F3181-00-00 |
from US $1.67 |
||
|
5
|
5
3GF-F3158-00-00 Gasket |
3GF-F3158-00-00 |
US $1.70 |
||
|
6
|
6
3B3-F3170-00-00 Cylinder Comp, Front Fork |
3B3-F3170-00-00 |
from US $9.83 |
||
|
7
|
7
13P-F3141-00-00 Spring, Front Fork |
13P-F3141-00-00 |
US $4.39 |
||
|
8
|
8
3B3-F3110-00-00 Inner Tube Comp. 1 |
3B3-F3110-00-00 |
from US $35.82 |
||
|
9
|
9
3NW-F3156-00-00 Ring, Snap |
3NW-F3156-00-00 |
from US $0.45 |
||
|
10
|
10
5SU-F3145-00-00 Oil Seal |
5SU-F3145-00-00 |
from US $3.53 |
||
|
11
|
11
3GF-F3147-00-00 O-Ring |
3GF-F3147-00-00 |
from US $0.45 |
||
| replacement | |||||
|
11
|
11
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.63 |
||
|
12
|
12
5FJ-F3356-00-00 Bolt 2 |
5FJ-F3356-00-00 |
from US $1.19 |
||
|
13
|
13
13P-F3191-00-00 Boot |
13P-F3191-00-00 |
from US $7.65 |
||
|
14
|
14
13P-F3192-00-00 Band |
13P-F3192-00-00 |
from US $2.52 |
||
|
15
|
15
3D1-F3103-10-00 Front Fork Assy (R.h) |
3D1-F3103-10-00 |
US $207.49 |
||
|
16
|
16
13P-F3136-10-00 Tube, Outer (Right) |
13P-F3136-10-00 |
from US $61.78 |
||
|
17
|
17
3GF-F3181-00-00 Bolt, Hexagon Socket Head |
3GF-F3181-00-00 |
from US $1.67 |
||
|
18
|
18
3GF-F3158-00-00 Gasket |
3GF-F3158-00-00 |
US $1.70 |
||
|
19
|
19
3B3-F3170-00-00 Cylinder Comp, Front Fork |
3B3-F3170-00-00 |
from US $9.83 |
||
|
20
|
20
13P-F3141-00-00 Spring, Front Fork |
13P-F3141-00-00 |
US $4.39 |
||
|
21
|
21
3B3-F3110-00-00 Inner Tube Comp. 1 |
3B3-F3110-00-00 |
from US $35.82 |
||
|
22
|
22
3NW-F3156-00-00 Ring, Snap |
3NW-F3156-00-00 |
from US $0.45 |
||
|
23
|
23
5SU-F3145-00-00 Oil Seal |
5SU-F3145-00-00 |
from US $3.53 |
||
|
24
|
24
3GF-F3147-00-00 O-Ring |
3GF-F3147-00-00 |
from US $0.45 |
||
| replacement | |||||
|
24
|
24
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.63 |
||
|
25
|
25
5FJ-F3356-00-00 Bolt 2 |
5FJ-F3356-00-00 |
from US $1.19 |
||
|
26
|
26
13P-F3191-00-00 Boot |
13P-F3191-00-00 |
from US $7.65 |
||
|
27
|
27
13P-F3192-00-00 Band |
13P-F3192-00-00 |
from US $2.52 |
||
|
28
|
28
3D1-F3340-10-00 Under Bracket Comp |
3D1-F3340-10-00 |
US $186.73 |
||
|
29
|
29
22F-23414-01-00 Race, Ball 4 |
22F-23414-01-00 |
from US $8.22 |
||
| replacement | |||||
|
29
|
29
BP2-23414-00-00 Race, Ball |
BP2-23414-00-00 |
from US $7.45 |
||
|
30
|
30
3GF-F3346-00-00 Bolt 1 |
3GF-F3346-00-00 |
from US $1.28 |
||
|
31
|
31
13P-F3389-00-00 Guide, Cable |
13P-F3389-00-00 |
from US $3.73 |
||
|
32
|
32
13P-F3317-00-00 Holder, Cable |
13P-F3317-00-00 |
from US $9.45 |
||
|
33
|
33
9580L-06010-00 Bolt, Flange |
9580L-06010-00 |
from US $0.27 |
||
| replacement | |||||
|
33
|
33
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
34
|
34
3KJ-23411-01-00 Race, Ball 1 |
3KJ-23411-01-00 |
from US $11.93 |
||
|
35
|
35
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
35
|
35
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
36
|
36
2E9-23412-00-00 Race, Ball 2 |
2E9-23412-00-00 |
from US $22.67 |
||
| replacement | |||||
|
36
|
36
2SA-23412-00-00 |
2SA-23412-00-00 |
from US $22.67 |
||
|
37
|
37
22F-2341E-00-00 Retainer, Ball Bearing |
22F-2341E-00-00 |
from US $14.14 |
||
| replacement | |||||
|
37
|
37
BP2-2341E-00-00 Retainer, Ball Bearing |
BP2-2341E-00-00 |
from US $14.14 |
||
|
38
|
38
93505-32042-00 Ball |
93505-32042-00 |
from US $6.94 |
||
|
39
|
39
2E9-23454-00-00 Nut, Fitting 2 |
2E9-23454-00-00 |
from US $5.67 |
||
|
40
|
40
5SU-F3415-00-00 Cover, Ball Race 1 |
5SU-F3415-00-00 |
from US $1.40 |
||
