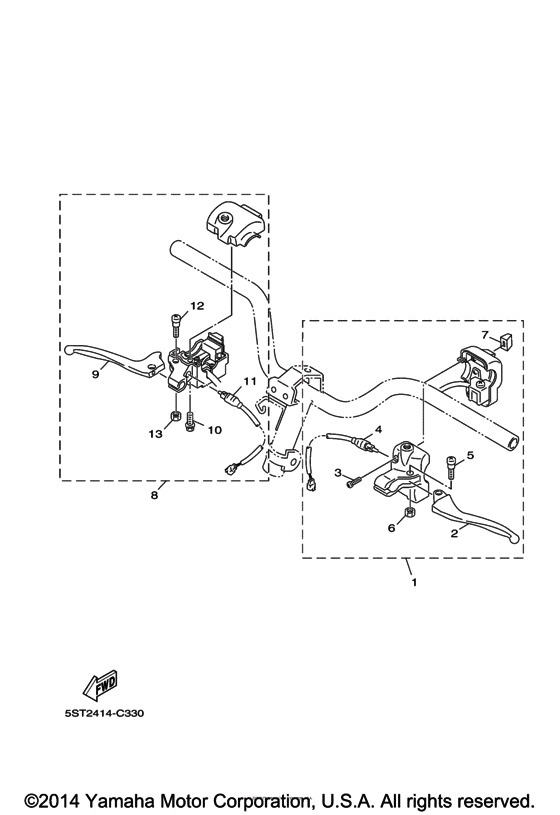

Handle switch & lever Diagram Yamaha XC50 Vino Classic
- Year
- 2015
- Sales region
- USA
- Model
- Vino Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37B-H2910-31-00
Lever Holder Assy (Left)
|
37B-H2910-31-00 |
— | ||
|
2
|
2
13P-H3912-00-00 Lever 1 |
13P-H3912-00-00 |
from US $10.15 |
||
|
3
|
3
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.52 |
||
|
4
|
4
37B-H3980-20-00 Front Stop Switch Assy |
37B-H3980-20-00 |
US $9.13 |
||
| replacement | |||||
|
4
|
4
37B-H3980-21-00 Front Stop Switch |
37B-H3980-21-00 |
US $10.39 |
||
|
5
|
5
3XG-H3915-00-00 Screw, Lever Fitting |
3XG-H3915-00-00 |
from US $2.08 |
||
|
6
|
6
95607-05100-00 Nut, U |
95607-05100-00 |
from US $2.22 |
||
| replacement | |||||
|
6
|
6
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
7
|
7
5SU-H357H-00-00 Knob |
5SU-H357H-00-00 |
from US $4.10 |
||
|
8
|
8
3D1-H2920-12-00 Lever Holder Assy |
3D1-H2920-12-00 |
US $56.20 |
||
| replacements | |||||
|
8
|
8
3D1-H2920-13-00 Lever Holder Assy (Right) |
3D1-H2920-13-00 |
US $174.08 |
||
|
8
|
8
3D1-H2920-14-00 Lever Holder Assy (Right) |
3D1-H2920-14-00 |
US $58.82 |
||
|
8
|
8
3D1-H2920-15-00 |
3D1-H2920-15-00 |
US $118.57 |
||
|
8
|
8
3D1-H2920-15-00 |
3D1-H2920-15-00 |
US $118.57 |
||
|
9
|
9
13P-H3922-10-00 Lever 2 |
13P-H3922-10-00 |
from US $10.15 |
||
|
10
|
10
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.52 |
||
|
11
|
11
37B-H3980-20-00 Front Stop Switch Assy |
37B-H3980-20-00 |
US $9.13 |
||
| replacement | |||||
|
11
|
11
37B-H3980-21-00 Front Stop Switch |
37B-H3980-21-00 |
US $10.39 |
||
|
12
|
12
3XG-H3915-00-00 Screw, Lever Fitting |
3XG-H3915-00-00 |
from US $2.08 |
||
|
13
|
13
95607-05100-00 Nut, U |
95607-05100-00 |
from US $2.22 |
||
| replacement | |||||
|
13
|
13
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
