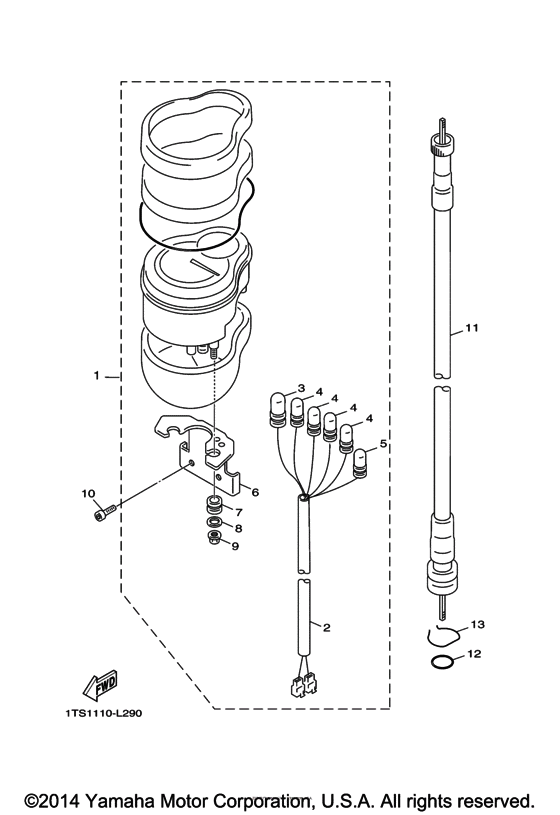

Meter Diagram Yamaha XC50 Vino Classic
- Year
- 2015
- Sales region
- USA
- Model
- Vino Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TS-H3510-00-00 Speedometer Assy |
1TS-H3510-00-00 |
US $152.86 |
||
|
2
|
2
1TS-H3509-00-00 Socket Cord Assy |
1TS-H3509-00-00 |
US $29.65 |
||
|
3
|
3
3GF-H3517-00-00
Bulb
|
3GF-H3517-00-00 |
— | ||
| replacement | |||||
|
3
|
3
1Y7-83517-00-00 Bulb (12V-1.7W T10) |
1Y7-83517-00-00 |
US $3.26 |
||
|
4
|
4
5JS-H3517-00-00 Bulb (12V-1.7W T6.5) |
5JS-H3517-00-00 |
from US $2.61 |
||
|
5
|
5
4CW-H3517-00-00
Bulb (14V-3W T6.5)
|
4CW-H3517-00-00 |
— | ||
| replacement | |||||
|
5
|
5
4GU-H3517-10-00 Bulb (14V-3W) |
4GU-H3517-10-00 |
US $2.13 |
||
|
6
|
6
5ST-H3519-00-00 Bracket, Meter |
5ST-H3519-00-00 |
from US $7 |
||
|
7
|
7
5ST-H3513-00-00 Damper |
5ST-H3513-00-00 |
from US $1.28 |
||
|
8
|
8
5ST-H3663-00-00 Washer, Special |
5ST-H3663-00-00 |
from US $0.76 |
||
|
9
|
9
5ST-H354P-00-00 Nut |
5ST-H354P-00-00 |
from US $0.43 |
||
|
10
|
10
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
|
11
|
11
5ST-H3550-03-00 Speedometer Cable Assy |
5ST-H3550-03-00 |
from US $12.64 |
||
|
12
|
12
932-10148-05-00
O-Ring
|
932-10148-05-00 |
— | ||
| replacement | |||||
|
12
|
12
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
|
13
|
13
4X6-F5137-00-00 Ring, Stop |
4X6-F5137-00-00 |
from US $0.43 |
||
