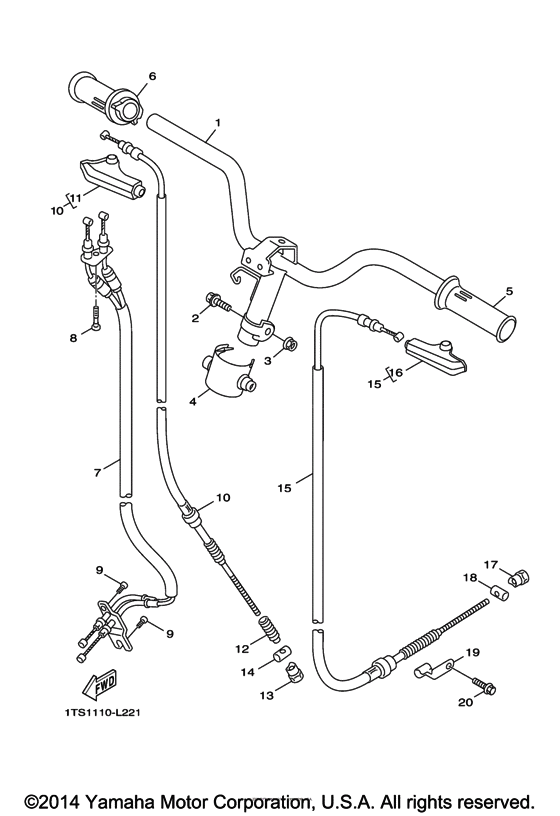

Steering handle & cable Diagram Yamaha XC50 Vino Classic
- Year
- 2015
- Sales region
- USA
- Model
- Vino Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5ST-F6110-00-00 Handle Comp |
5ST-F6110-00-00 |
from US $45.68 |
||
|
2
|
2
90105-10036-00 Bolt, Flange |
90105-10036-00 |
from US $4.25 |
||
|
3
|
3
90185-10801-00 Nut, Self-Locking |
90185-10801-00 |
from US $5.38 |
||
|
4
|
4
1TS-F6124-01-00 Protector, Handlebar |
1TS-F6124-01-00 |
from US $3.65 |
||
|
5
|
5
5ST-F6241-10-00 Grip |
5ST-F6241-10-00 |
from US $3.98 |
||
|
6
|
6
5ST-F6240-30-00 Grip Assy |
5ST-F6240-30-00 |
from US $5.58 |
||
|
7
|
7
1TS-F6301-00-00 Throttle Cable Assy |
1TS-F6301-00-00 |
US $43.90 |
||
|
8
|
8
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
8
|
8
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
9
|
9
92017-05010-00 Bolt, Button Head |
92017-05010-00 |
from US $1.52 |
||
|
10
|
10
13P-F6341-30-00 Wire, Brake 1 |
13P-F6341-30-00 |
from US $26.82 |
||
|
11
|
11
3YJ-2637A-00-00 Cover, Handle Lever 2 |
3YJ-2637A-00-00 |
from US $7.54 |
||
|
12
|
12
10B-F6342-00-00 Boot |
10B-F6342-00-00 |
from US $4.53 |
||
|
13
|
13
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
14
|
14
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
15
|
15
13P-F6351-10-00 Cable, Brake |
13P-F6351-10-00 |
from US $24.75 |
||
|
16
|
16
3YJ-26372-00-00 Cover, Handle Lever 1 |
3YJ-26372-00-00 |
from US $8.93 |
||
|
17
|
17
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
18
|
18
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
19
|
19
5ST-F639F-00-00 Holder 2 |
5ST-F639F-00-00 |
from US $4 |
||
|
20
|
20
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
20
|
20
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
