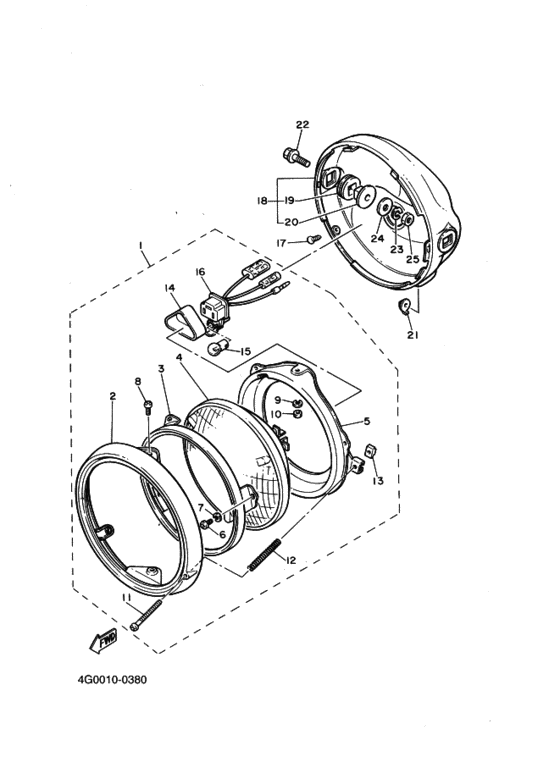

Headlight Diagram Yamaha XJ400
- Year
- 1981
- Colour
- Maxim Red (MXR; 00T5)
- Model code
- 5M8
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- C
- Model
- XJ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1J7-84310-91-00
Headlight Unit Assy
|
1J7-84310-91-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
341-84315-40-00 Rim, Headlight．リム，ヘツドライト; |
341-84315-40-00 |
from US $56.78 |
||
|
3
|
3
2F9-84395-00-00 Ring, Retaining．リング，リテ−ニング; |
2F9-84395-00-00 |
from US $46.28 |
||
|
4
|
4
341-84320-00-00
Lens Assy (12V 50/40W)
．レンズアセンブリ ; １２Ｖ−５０／４０Ｗ |
341-84320-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
．レンズアセンブリ ; １２Ｖ−５０／４０Ｗ |
999-99999-99-00 |
— | ||
|
5
|
5
2F9-84394-00-00 Ring, Mounting．リング，マウンテイング; |
2F9-84394-00-00 |
from US $27.58 |
||
|
6
|
6
985-01040-08-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01040-08-00 |
— | ||
| replacement | |||||
|
6
|
6
98580-04008-00 Screw, Pan Head (713)．スクリユ，パンヘツド; |
98580-04008-00 |
from US $1.39 |
||
|
7
|
7
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
8
|
8
98501-05010-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
8
|
8
97885-05010-00 Screw, Pan Head．スクリユ，パンヘツド; |
97885-05010-00 |
from US $1.01 |
||
|
9
|
9
929-01051-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
953-01056-00-00
Nut
．ナツト; |
953-01056-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95380-05600-00 Nut．ナツト; |
95380-05600-00 |
from US $1.42 |
||
|
11
|
11
2F9-84331-00-00 Screw, Lens Fitting．スクリユ，リムアジヤステイング; |
2F9-84331-00-00 |
from US $4.25 |
||
| replacement | |||||
|
11
|
11
98580-04055-00 Screw, Lens Fitting．スクリユ，リムアジヤステイング; |
98580-04055-00 |
from US $4.25 |
||
|
12
|
12
341-84332-60-00 Spring．スプリング，スクリユ; |
341-84332-60-00 |
from US $3.12 |
||
|
13
|
13
198-84334-60-00 Nut, Adjusting．ナツト，アジヤステイング; |
198-84334-60-00 |
from US $3.47 |
||
|
14
|
14
341-84397-61-00
Cover, Socket
|
341-84397-61-00 |
— | ||
|
15
|
15
123-83516-21-00 Bulb (12V3.4W)．バルブ; １２Ｖ−３．４Ｗ |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
15
|
15
123-83516-21-XX Bulb (12V-3.4W)．バルブ; １２Ｖ−３．４Ｗ |
123-83516-21-XX |
US $63.70 |
||
|
16
|
16
371-84312-00-00
Cord Assy
．ソケツト; |
371-84312-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
．ソケツト; |
999-99999-99-00 |
— | ||
|
17
|
17
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
18
|
18
4G0-84330-00-93
Body Assembly
クロムメツキ |
4G0-84330-00-93 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
クロムメツキ |
999-99999-99-00 |
— | ||
|
19
|
19
584-84345-60-00 Damper, Headlight．ダンパ，ヘツドライト; |
584-84345-60-00 |
from US $10.71 |
||
|
20
|
20
584-84338-60-00 Collar, Body Ftng．カラ−，ボデ−フイツテイング; |
584-84338-60-00 |
from US $7.79 |
||
|
21
|
21
4K0-84327-00-00
Washer, Special
|
4K0-84327-00-00 |
— | ||
|
22
|
22
90105-08174-00 Bolt, Flange |
90105-08174-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
95027-08030-00 Bolt, Flange |
95027-08030-00 |
from US $1.66 |
||
|
23
|
23
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
24
|
24
90209-08098-00 Washer 341833480000 |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
24
|
24
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
25
|
25
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
25
|
25
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
25
|
25
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
