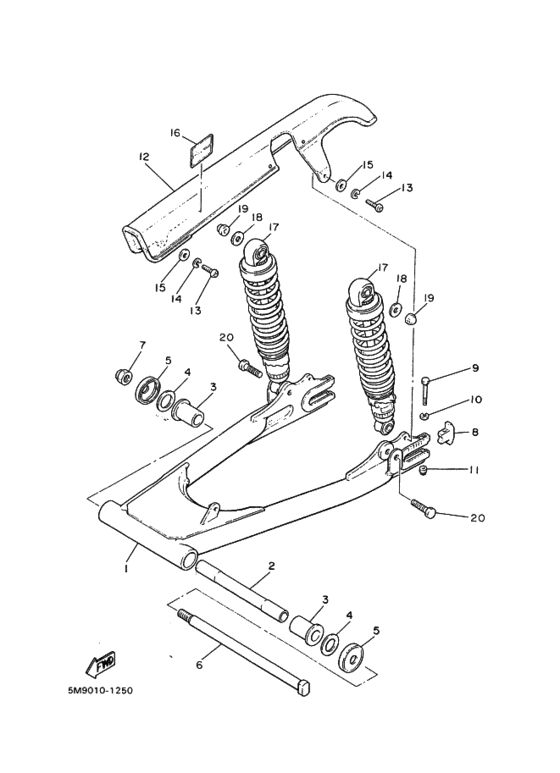

ﾘﾔｱ-ﾑ.ﾘﾔｻｽﾍﾟﾝｼﾖﾝ Diagram Yamaha XJ400
- Year
- 1981
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 5M9
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XJ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4G0-22110-00-33
Rear Arm Comp
ヤマハブラツク |
4G0-22110-00-33 |
— | ||
| replacement | |||||
|
1
|
1
4U8-22110-00-33
Rear Arm
ヤマハブラツク |
4U8-22110-00-33 |
— | ||
|
2
|
2
4L0-22184-00-00 Bush |
4L0-22184-00-00 |
US $171.49 |
||
| replacement | |||||
|
2
|
2
341-22184-00-00 Bush |
341-22184-00-00 |
US $171.49 |
||
|
3
|
3
90386-22102-00 Bush, Spec''l Nylon |
90386-22102-00 |
from US $14.17 |
||
|
4
|
4
156-22127-00-00 Shim (0.3T)シム ; ０．３Ｔ; ＵＮ |
156-22127-00-00 |
US $3.40 |
||
|
5
|
5
322-22128-01-00 Cover, Thrust 1 |
322-22128-01-00 |
from US $23.66 |
||
|
6
|
6
4G0-22141-00-00
Shaft, Pivot
|
4G0-22141-00-00 |
— | ||
|
7
|
7
90185-14070-00 Nut, Self-Locking (1J7) |
90185-14070-00 |
from US $9.49 |
||
|
8
|
8
4G0-22177-00-00
Bar, Compression
|
4G0-22177-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
97326-06055-00 Bolt |
97326-06055-00 |
from US $2.41 |
||
| replacement | |||||
|
9
|
9
97027-06055-00 Bolt, Hexagon |
97027-06055-00 |
from US $2.74 |
||
|
10
|
10
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
11
|
11
95706-06300-00 Nut, Nylonナツト，ナイロン; |
95706-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
95707-06300-00 Nut, Nylonナツト，ナイロン; |
95707-06300-00 |
from US $1.52 |
||
|
12
|
12
4G0-22311-00-00
Case, Chain
|
4G0-22311-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
92506-06016-00 Screw |
92506-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
14
|
14
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
15
|
15
90201-062A8-00 Washer, Plate |
90201-062A8-00 |
from US $1.84 |
||
|
16
|
16
4G0-21668-00-00
Label, Tire
|
4G0-21668-00-00 |
— | ||
|
17
|
17
5M9-22210-00-00
ﾘﾔｸﾂｼﾖﾝｱｾﾝﾌﾞﾘ
|
5M9-22210-00-00 |
— | ||
|
18
|
18
90201-10142-00 Washer, Plate |
90201-10142-00 |
from US $3.12 |
||
|
19
|
19
90176-10009-00 Nut, Cap (371) |
90176-10009-00 |
from US $1.66 |
||
|
20
|
20
90106-10030-00 Bolt |
90106-10030-00 |
US $8.53 |
||
| replacement | |||||
|
20
|
20
901-06100-52-00
Bolt(3Bm)
|
901-06100-52-00 |
— | ||
