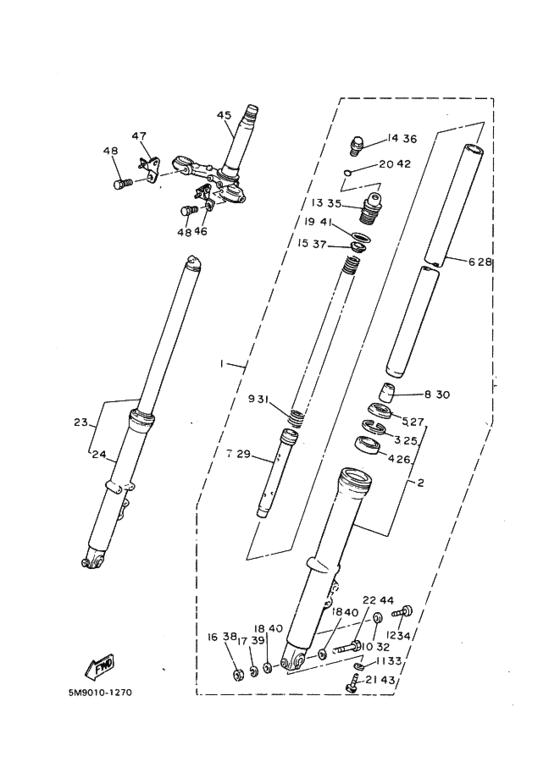

ﾌﾛﾝﾄﾌｵ-ｸ Diagram Yamaha XJ400
- Year
- 1981
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 5M9
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XJ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5M9-23102-00-00
ﾌﾛﾝﾄﾌｵ-ｸｱｾﾝﾌﾞﾘ(ﾚﾌﾄ)
フロントフオ−クアセンブリ; レフト |
5M9-23102-00-00 |
— | ||
|
2
|
2
4G0-23126-00-38
Tube, Outer (L.h)
．チユ−ブ，アウタ １; クリヤ（バフアリ） |
4G0-23126-00-38 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
．チユ−ブ，アウタ １; クリヤ（バフアリ） |
999-99999-99-00 |
— | ||
|
3
|
3
4A1-23156-00-00 Ring, Snap．．クリツプ，オイルシ−ル; |
4A1-23156-00-00 |
from US $4.22 |
||
|
4
|
4
4G0-23145-00-00 Oil Seal．．オイルシ−ル; |
4G0-23145-00-00 |
from US $27.52 |
||
|
5
|
5
4G0-23144-00-00 Seal, Dust．．シ−ル，ダスト; |
4G0-23144-00-00 |
from US $21.39 |
||
| replacement | |||||
|
5
|
5
4G0-23144-01-00 Seal, Dust．．シ−ル，ダスト; |
4G0-23144-01-00 |
from US $21.39 |
||
|
6
|
6
5M9-23110-00-00
.ｲﾝﾅﾁﾕ-ﾌﾞｺﾝﾌﾟﾘ-ﾄ 1
．インナチユ−ブコンプリ−ト １; |
5M9-23110-00-00 |
— | ||
|
7
|
7
5F8-23170-00-00
Cylinder, Frtfrk
．シリンダコンプリ−ト，フロントフオ−ク; |
5F8-23170-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
．シリンダコンプリ−ト，フロントフオ−ク; |
999-99999-99-00 |
— | ||
|
8
|
8
1W1-23173-L0-00 Taper Spindle．スピンドル，テ−パ; |
1W1-23173-L0-00 |
from US $24.65 |
||
|
9
|
9
5M9-23141-00-00
.ｽﾌﾟﾘﾝｸﾞ,ﾌﾛﾝﾄﾌｵ-ｸ
．スプリング，フロントフオ−ク; |
5M9-23141-00-00 |
— | ||
|
10
|
10
122-23129-00-00 Gasket, Drain Plug．ガスケツト，ドレ−ンプラグ; |
122-23129-00-00 |
from US $3.26 |
||
|
11
|
11
509-23158-L0-00 Gasket．ガスケツト; |
509-23158-L0-00 |
from US $4.03 |
||
|
12
|
12
122-23119-01-00 Plug, Drain．プラグ，ドレ−ン; |
122-23119-01-00 |
US $1.56 |
||
| replacements | |||||
|
12
|
12
98517-04006-00 Screw, Pan Head．プラグ，ドレ−ン; |
98517-04006-00 |
from US $1.28 |
||
|
12
|
12
985-11040-06-00
Screw, Pan Head (98502-04006)
．プラグ，ドレ−ン; |
985-11040-06-00 |
— | ||
|
13
|
13
5M9-23111-00-00
.ﾎﾞﾙﾄｷﾔﾂﾌﾟ
．ボルトキヤツプ; |
5M9-23111-00-00 |
— | ||
|
14
|
14
3H5-23190-00-00
Air Valve
．エアバルブコンプリ−ト; |
3H5-23190-00-00 |
— | ||
|
15
|
15
583-23142-00-00
Seat, Spring Upper
．シ−ト，スプリングアツパ; |
583-23142-00-00 |
— | ||
|
16
|
16
95311-08600-00 Nut．ナツト; |
95311-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
16
|
16
997-80086-00-00 Nut, Hex．ナツト; |
997-80086-00-00 |
from US $1.81 |
||
|
16
|
16
953-33086-00-00 Nut．ナツト; |
953-33086-00-00 |
from US $1.39 |
||
|
17
|
17
929-01081-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring．ワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
18
|
18
90201-08544-00 Washer, Plate．ワツシヤ，プレ−ト; |
90201-08544-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
92990-08600-00 Washer, Plate．ワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.66 |
||
|
19
|
19
240-23114-00-00 Gasket．ガスケツト; |
240-23114-00-00 |
from US $5.24 |
||
|
20
|
20
509-23163-L0-00
O-Ring
．Ｏ−リング; |
509-23163-L0-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
．Ｏ−リング; |
999-99999-99-00 |
— | ||
|
21
|
21
278-23181-50-00
Bolt, Hexagon Socket Head
．ボルト，ヘキサゴンソケツトヘツド; |
278-23181-50-00 |
— | ||
| replacement | |||||
|
21
|
21
3D8-23181-00-00 Bolt, Hexagon Socket Head．ボルト，ヘキサゴンソケツトヘツド; |
3D8-23181-00-00 |
from US $5.41 |
||
|
22
|
22
4G0-23356-00-00 Bolt 2．ボルト ２; |
4G0-23356-00-00 |
from US $2.41 |
||
| replacement | |||||
|
22
|
22
97017-08060-00 Bolt．ボルト ２; |
97017-08060-00 |
from US $2.41 |
||
|
23
|
23
5M9-23103-00-00
ﾌﾛﾝﾄﾌｵ-ｸｱｾﾝﾌﾞﾘ (ﾗｲﾄ)
フロントフオ−クアセンブリ ; ライト |
5M9-23103-00-00 |
— | ||
|
24
|
24
4G0-23136-00-38
Tube, Outer 2
．チユ−ブ，アウタ ２; クリヤ（バフアリ） |
4G0-23136-00-38 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
．チユ−ブ，アウタ ２; クリヤ（バフアリ） |
999-99999-99-00 |
— | ||
|
25
|
25
4A1-23156-00-00 Ring, Snap．．クリツプ，オイルシ−ル; |
4A1-23156-00-00 |
from US $4.22 |
||
|
26
|
26
3G2-23145-00-00 Oil Seal．．オイルシ−ル; |
3G2-23145-00-00 |
from US $27.85 |
||
| replacement | |||||
|
26
|
26
4G0-23145-00-00 Oil Seal．．オイルシ−ル; |
4G0-23145-00-00 |
from US $27.52 |
||
|
27
|
27
4G0-23144-00-00 Seal, Dust．．シ−ル，ダスト; |
4G0-23144-00-00 |
from US $21.39 |
||
| replacement | |||||
|
27
|
27
4G0-23144-01-00 Seal, Dust．．シ−ル，ダスト; |
4G0-23144-01-00 |
from US $21.39 |
||
|
28
|
28
5M9-23110-00-00
.ｲﾝﾅﾁﾕ-ﾌﾞｺﾝﾌﾟﾘ-ﾄ 1
．インナチユ−ブコンプリ−ト １; |
5M9-23110-00-00 |
— | ||
|
29
|
29
5F8-23170-00-00
Cylinder, Frtfrk
．シリンダコンプリ−ト，フロントフオ−ク; |
5F8-23170-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
．シリンダコンプリ−ト，フロントフオ−ク; |
999-99999-99-00 |
— | ||
|
30
|
30
1W1-23173-L0-00 Taper Spindle．スピンドル，テ−パ; |
1W1-23173-L0-00 |
from US $24.65 |
||
|
31
|
31
5M9-23141-00-00
.ｽﾌﾟﾘﾝｸﾞ,ﾌﾛﾝﾄﾌｵ-ｸ
．スプリング，フロントフオ−ク; |
5M9-23141-00-00 |
— | ||
|
32
|
32
122-23129-00-00 Gasket, Drain Plug．ガスケツト，ドレ−ンプラグ; |
122-23129-00-00 |
from US $3.26 |
||
|
33
|
33
509-23158-L0-00 Gasket．ガスケツト; |
509-23158-L0-00 |
from US $4.03 |
||
|
34
|
34
122-23119-01-00 Plug, Drain．プラグ，ドレ−ン; |
122-23119-01-00 |
US $1.56 |
||
| replacements | |||||
|
34
|
34
98517-04006-00 Screw, Pan Head．プラグ，ドレ−ン; |
98517-04006-00 |
from US $1.28 |
||
|
34
|
34
985-11040-06-00
Screw, Pan Head (98502-04006)
．プラグ，ドレ−ン; |
985-11040-06-00 |
— | ||
|
35
|
35
5M9-23111-00-00
.ﾎﾞﾙﾄｷﾔﾂﾌﾟ
．ボルトキヤツプ; |
5M9-23111-00-00 |
— | ||
|
36
|
36
3H5-23190-00-00
Air Valve
．エアバルブコンプリ−ト; |
3H5-23190-00-00 |
— | ||
|
37
|
37
583-23142-00-00
Seat, Spring Upper
．シ−ト，スプリングアツパ; |
583-23142-00-00 |
— | ||
|
38
|
38
95311-08600-00 Nut．ナツト; |
95311-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
38
|
38
997-80086-00-00 Nut, Hex．ナツト; |
997-80086-00-00 |
from US $1.81 |
||
|
38
|
38
953-33086-00-00 Nut．ナツト; |
953-33086-00-00 |
from US $1.39 |
||
|
39
|
39
929-01081-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
39
|
39
92990-08100-00 Ybs67-8 Washer, Spring．ワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
40
|
40
90201-08544-00 Washer, Plate．ワツシヤ，プレ−ト; |
90201-08544-00 |
US $1.56 |
||
| replacement | |||||
|
40
|
40
92990-08600-00 Washer, Plate．ワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.66 |
||
|
41
|
41
240-23114-00-00 Gasket．ガスケツト; |
240-23114-00-00 |
from US $5.24 |
||
|
42
|
42
509-23163-L0-00
O-Ring
．Ｏ−リング; |
509-23163-L0-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
．Ｏ−リング; |
999-99999-99-00 |
— | ||
|
43
|
43
278-23181-50-00
Bolt, Hexagon Socket Head
．ボルト，ヘキサゴンソケツトヘツド; |
278-23181-50-00 |
— | ||
| replacement | |||||
|
43
|
43
3D8-23181-00-00 Bolt, Hexagon Socket Head．ボルト，ヘキサゴンソケツトヘツド; |
3D8-23181-00-00 |
from US $5.41 |
||
|
44
|
44
4G0-23356-00-00 Bolt 2．ボルト ２; |
4G0-23356-00-00 |
from US $2.41 |
||
| replacement | |||||
|
44
|
44
97017-08060-00 Bolt．ボルト ２; |
97017-08060-00 |
from US $2.41 |
||
|
45
|
45
4G0-23340-00-33
Under Bracket Comp
ヤマハブラツク |
4G0-23340-00-33 |
— | ||
| replacement | |||||
|
45
|
45
5F8-23340-00-33
Under Bracket
ヤマハブラツク |
5F8-23340-00-33 |
— | ||
|
46
|
46
4G0-23377-00-00
Bracket, Horn
|
4G0-23377-00-00 |
— | ||
| replacement | |||||
|
46
|
46
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
47
|
47
4G0-23378-00-00
Bracket, Horn
|
4G0-23378-00-00 |
— | ||
| replacement | |||||
|
47
|
47
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
48
|
48
4G0-23346-00-00
Bolt 1
|
4G0-23346-00-00 |
— | ||
| replacement | |||||
|
48
|
48
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
