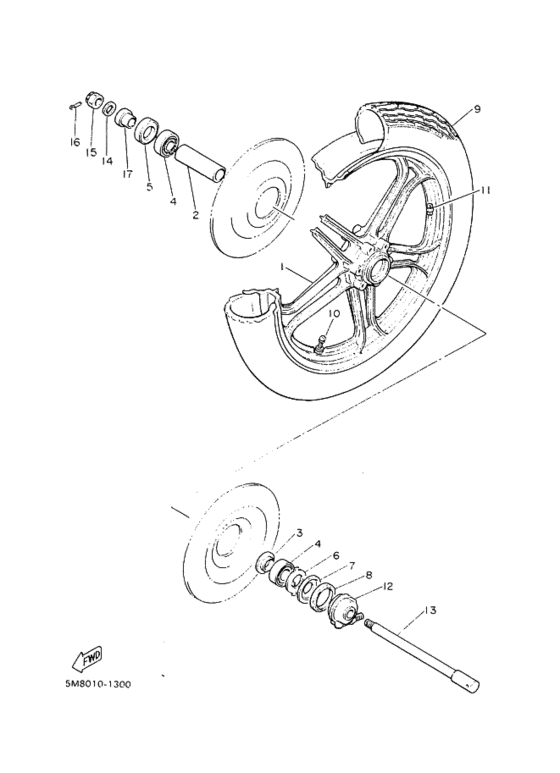

ﾌﾛﾝﾄﾎｲ-ﾙ Diagram Yamaha XJ400
- Year
- 1981
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 5M9
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XJ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4G0-25168-00-00
Cast Wheel, Front
|
4G0-25168-00-00 |
— | ||
|
2
|
2
90560-15116-00
Spacer 322251170000
|
90560-15116-00 |
— | ||
|
3
|
3
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
4
|
4
93306-30203-00 Brg,r-B 6302Z 42Mm 27G Ntベアリング ; Ｂ６３０２Ｚ |
93306-30203-00 |
from US $20.54 |
||
| replacement | |||||
|
4
|
4
93306-30212-00 Bearingベアリング ; Ｂ６３０２Ｚ |
93306-30212-00 |
from US $16.84 |
||
|
5
|
5
931-02220-14-00 Oil Sealオイルシ−ル; |
931-02220-14-00 |
from US $8.08 |
||
|
6
|
6
341-25149-00-00 Clutch, Meter |
341-25149-00-00 |
from US $4.43 |
||
|
7
|
7
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $3.33 |
||
|
8
|
8
93105-45017-00 Oil Sealオイルシ−ル; |
93105-45017-00 |
from US $10.83 |
||
|
9
|
9
94130-19622-00
Tire (3.00-19)
タイヤ ; ３．００−１９） （３．００−１９; ＵＲ ＹＯＫＯＨＡＭＡ |
94130-19622-00 |
— | ||
|
9
|
9
94130-19637-00
Tire (3.00-19)
タイヤ ; ３．００−１９） （３．００−１９; ＵＲ ＤＵＮＬＯＰ |
94130-19637-00 |
— | ||
|
10
|
10
93900-00002-00 Valve, RimＵＲ ＹＯＫＯＨＡＭＡ |
93900-00002-00 |
from US $12.75 |
||
| replacement | |||||
|
10
|
10
93900-00031-00 Valve, RimＵＲ ＹＯＫＯＨＡＭＡ |
93900-00031-00 |
from US $12.75 |
||
|
10
|
10
93900-00003-00 Valve, RimＵＲ ＤＵＮＬＯＰ |
93900-00003-00 |
from US $12.75 |
||
| replacement | |||||
|
10
|
10
93900-00031-00 Valve, RimＵＲ ＤＵＮＬＯＰ |
93900-00031-00 |
from US $12.75 |
||
|
11
|
11
1A1-25398-01-00 Balancer, Wheel (10G)バランサ，ホイ−ル ; ２０Ｇ; ＵＮ |
1A1-25398-01-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
5MT-25398-00-00 Balancer, Wheel (10G)バランサ，ホイ−ル ; ２０Ｇ; ＵＮ |
5MT-25398-00-00 |
from US $8.46 |
||
|
11
|
11
1A1-25399-00-00 Balancer, Wheel (10G)バランサ，ホイ−ル ; １０Ｇ; ＵＮ |
1A1-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
5MT-25398-00-00 Balancer, Wheel (10G)バランサ，ホイ−ル ; １０Ｇ; ＵＮ |
5MT-25398-00-00 |
from US $8.46 |
||
|
11
|
11
2M0-25399-00-00 Balancer, Wheel (30G)バランサ，ホイ−ル ; ３０Ｇ; ＵＮ |
2M0-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
5MT-25398-00-00 Balancer, Wheel (10G)バランサ，ホイ−ル ; ３０Ｇ; ＵＮ |
5MT-25398-00-00 |
from US $8.46 |
||
|
12
|
12
4K0-25190-00-00 Gear Unit Asy |
4K0-25190-00-00 |
US $93.47 |
||
| replacement | |||||
|
12
|
12
31A-25190-10-00
DISC,BRAKE
|
31A-25190-10-00 |
— | ||
|
13
|
13
4H7-25181-00-00
Axle, Wheel
|
4H7-25181-00-00 |
— | ||
| replacement | |||||
|
13
|
13
4H7-25181-01-00
Axle, Wheel
|
4H7-25181-01-00 |
— | ||
|
14
|
14
92901-14200-00 Washer, Plainワツシヤ，プレ−ン; |
92901-14200-00 |
US $1.42 |
||
| replacement | |||||
|
14
|
14
92990-14200-00 Washer, Plainワツシヤ，プレ−ン; |
92990-14200-00 |
from US $1.66 |
||
|
15
|
15
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
15
|
15
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
16
|
16
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
16
|
16
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
17
|
17
90387-15550-00 Collar |
90387-15550-00 |
from US $12.18 |
||
