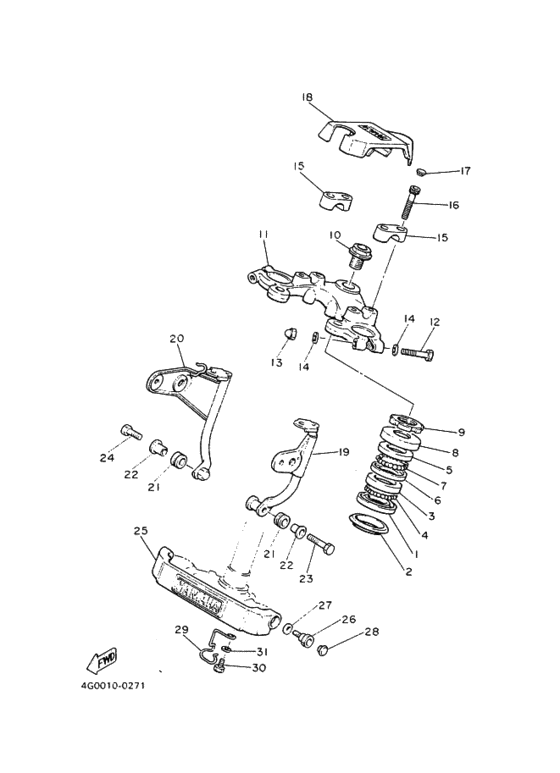

Steering Diagram Yamaha XJ400
- Year
- 1981
- Colour
- Crystal Silver (CSL; 0020)
- Model code
- 5M9
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- XJ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
1
|
1
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
2
|
2
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
3
|
3
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
4
|
4
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
5
|
5
183-23411-00-00
Race, Ball 1
|
183-23411-00-00 |
— | ||
| replacement | |||||
|
5
|
5
4FP-F3411-20-00 Race, Ball 1 |
4FP-F3411-20-00 |
from US $6.94 |
||
|
6
|
6
183-23412-00-00
Race, Ball 2
|
183-23412-00-00 |
— | ||
| replacements | |||||
|
6
|
6
4FP-F3412-10-00 Race, Ball 2 |
4FP-F3412-10-00 |
from US $6.19 |
||
|
6
|
6
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
6
|
6
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
7
|
7
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
8
|
8
136-23415-00-00 Cover, Ball Race 1 |
136-23415-00-00 |
from US $3.26 |
||
|
9
|
9
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
9
|
9
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
9
|
9
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
10
|
10
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
11
|
11
4G0-23435-00-98 Crown, Handleツヤケシブラツク |
4G0-23435-00-98 |
US $173.29 |
||
|
12
|
12
97313-08055-00 Bolt (661) |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
12
|
12
97013-08055-00 Bolt |
97013-08055-00 |
from US $3.55 |
||
|
13
|
13
95303-08800-00 Nut (Crown) (93501-08800-00)ナツト，クラウン; |
95303-08800-00 |
from US $3.12 |
||
|
14
|
14
929-01086-00-00
Washer
ワツシヤ，プレ−ト; |
929-01086-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.66 |
||
|
15
|
15
4H7-23441-00-98 Holder, Handle Upperツヤケシブラツク |
4H7-23441-00-98 |
from US $28.13 |
||
| replacement | |||||
|
15
|
15
4H7-23441-01-98 Holder, Handle Upperツヤケシブラツク |
4H7-23441-01-98 |
from US $29.89 |
||
|
16
|
16
913-16080-30-00
Bolt
|
913-16080-30-00 |
— | ||
| replacement | |||||
|
16
|
16
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
17
|
17
341-23469-00-00 Cap, Bolt |
341-23469-00-00 |
from US $2.91 |
||
|
18
|
18
4G0-26213-00-00
Cover, Upper
|
4G0-26213-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
4G0-23121-00-00
Cover, Upper 1
|
4G0-23121-00-00 |
— | ||
|
20
|
20
4G0-23131-00-00
Cover, Upper 2
|
4G0-23131-00-00 |
— | ||
|
21
|
21
90480-14101-00 Grommet |
90480-14101-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
22
|
22
90387-065A6-00 Collar |
90387-065A6-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
23
|
23
97326-06050-00 Bolt, Hexagon |
97326-06050-00 |
US $2.55 |
||
| replacement | |||||
|
23
|
23
970-26060-50-00 Bolt (4G0) |
970-26060-50-00 |
US $2.05 |
||
|
24
|
24
97326-06025-00 Bolt |
97326-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
24
|
24
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
25
|
25
4G0-23122-00-00
Cover, Outer 1
|
4G0-23122-00-00 |
— | ||
|
26
|
26
90109-06583-00
Bolt
|
90109-06583-00 |
— | ||
|
27
|
27
92901-10200-00 Washerワツシヤ，プレ−ン; |
92901-10200-00 |
from US $0.90 |
||
| replacement | |||||
|
27
|
27
92990-10200-00 Washer, Plainワツシヤ，プレ−ン; |
92990-10200-00 |
from US $1.18 |
||
|
28
|
28
90338-24115-00 Plug, Spec''l Shape |
90338-24115-00 |
US $5.54 |
||
|
29
|
29
4G0-23466-00-00
Clamp
|
4G0-23466-00-00 |
— | ||
|
30
|
30
97306-06016-00 Bolt |
97306-06016-00 |
from US $1.21 |
||
| replacement | |||||
|
30
|
30
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
31
|
31
929-06066-00-00
Washer
ワツシヤ，プレ−ト; |
929-06066-00-00 |
— | ||
| replacement | |||||
|
31
|
31
92907-06600-00 Washer, Plateワツシヤ，プレ−ト; |
92907-06600-00 |
from US $1.18 |
||
