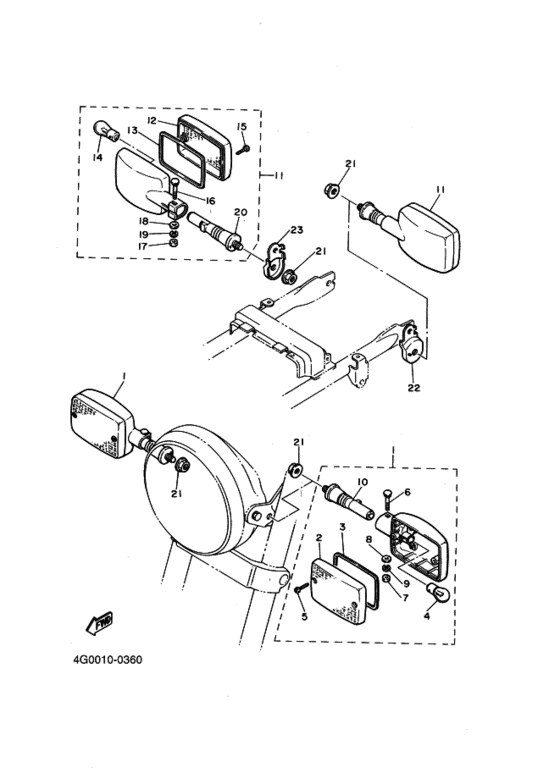

Flasher light Diagram Yamaha XJ400
- Year
- 1981
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 5M9
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- XJ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4G0-83310-20-00
Frt Flshr Lite Assembly
|
4G0-83310-20-00 |
— | ||
|
2
|
2
4G0-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
4G0-83312-00-00 |
from US $12.19 |
||
|
3
|
3
4G0-83313-00-00
Gasket, Flasher Lens
．ガスケツト，フラツシヤレンズ; |
4G0-83313-00-00 |
— | ||
|
4
|
4
256-83311-70-00 Bulb (12V-27W)．バルブ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
4
|
4
256-83311-70-XX
Bulb (12V-27W)
．バルブ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
5
|
5
97701-40518-00 Screw,tapping．スクリユ，タツピング; |
97701-40518-00 |
US $2.27 |
||
| replacements | |||||
|
5
|
5
97707-40618-00 Screw,pan Tap.2．スクリユ，タツピング; |
97707-40618-00 |
from US $1.28 |
||
|
5
|
5
97701-40618-00 Screw, Tapping．スクリユ，タツピング; |
97701-40618-00 |
US $2.27 |
||
|
6
|
6
4G0-83317-00-00 Bolt, Flasher 1．ボルト，フレツシヤ １; |
4G0-83317-00-00 |
from US $9.40 |
||
|
7
|
7
95303-05600-00 Nut．ナツト; |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
95380-05600-00 Nut．ナツト; |
95380-05600-00 |
from US $1.42 |
||
|
8
|
8
929-03056-00-00
Washer, Plate
．ワツシヤ，プレ−ト; |
929-03056-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-05600-00 Washer, Plate．ワツシヤ，プレ−ト; |
92990-05600-00 |
from US $1.07 |
||
|
9
|
9
92903-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92903-05100-00 |
US $1.21 |
||
| replacement | |||||
|
9
|
9
92990-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
4G0-83318-00-00
Stay, Flasher 1
．ステ−，フラツシヤ １; |
4G0-83318-00-00 |
— | ||
|
11
|
11
4G0-83330-20-00
Frt Flshr Lite Assembly
|
4G0-83330-20-00 |
— | ||
| replacement | |||||
|
11
|
11
4G0-83310-20-00
Frt Flshr Lite Assembly
|
4G0-83310-20-00 |
— | ||
|
12
|
12
4G0-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
4G0-83312-00-00 |
from US $12.19 |
||
|
13
|
13
4G0-83313-00-00
Gasket, Flasher Lens
．ガスケツト，フラツシヤレンズ; |
4G0-83313-00-00 |
— | ||
|
14
|
14
256-83311-70-00 Bulb (12V-27W)．バルブ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
14
|
14
256-83311-70-XX
Bulb (12V-27W)
．バルブ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
15
|
15
97701-40518-00 Screw,tapping．スクリユ，タツピング; |
97701-40518-00 |
US $2.27 |
||
| replacements | |||||
|
15
|
15
97707-40618-00 Screw,pan Tap.2．スクリユ，タツピング; |
97707-40618-00 |
from US $1.28 |
||
|
15
|
15
97701-40618-00 Screw, Tapping．スクリユ，タツピング; |
97701-40618-00 |
US $2.27 |
||
|
16
|
16
4G0-83317-00-00 Bolt, Flasher 1．ボルト，フレツシヤ １; |
4G0-83317-00-00 |
from US $9.40 |
||
|
17
|
17
95303-05600-00 Nut．ナツト; |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
95380-05600-00 Nut．ナツト; |
95380-05600-00 |
from US $1.42 |
||
|
18
|
18
929-03056-00-00
Washer, Plate
．ワツシヤ，プレ−ト; |
929-03056-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-05600-00 Washer, Plate．ワツシヤ，プレ−ト; |
92990-05600-00 |
from US $1.07 |
||
|
19
|
19
92903-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92903-05100-00 |
US $1.21 |
||
| replacement | |||||
|
19
|
19
92990-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
20
|
20
4G0-83318-00-00
Stay, Flasher 1
．ステ−，フラツシヤ １; |
4G0-83318-00-00 |
— | ||
|
21
|
21
95701-12100-00 Nut, With Washer |
95701-12100-00 |
from US $1.98 |
||
| replacements | |||||
|
21
|
21
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
21
|
21
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
22
|
22
4G0-83368-00-00
Stay, Flasher
|
4G0-83368-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
4G0-83369-00-00
Stay, Flasher
|
4G0-83369-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
