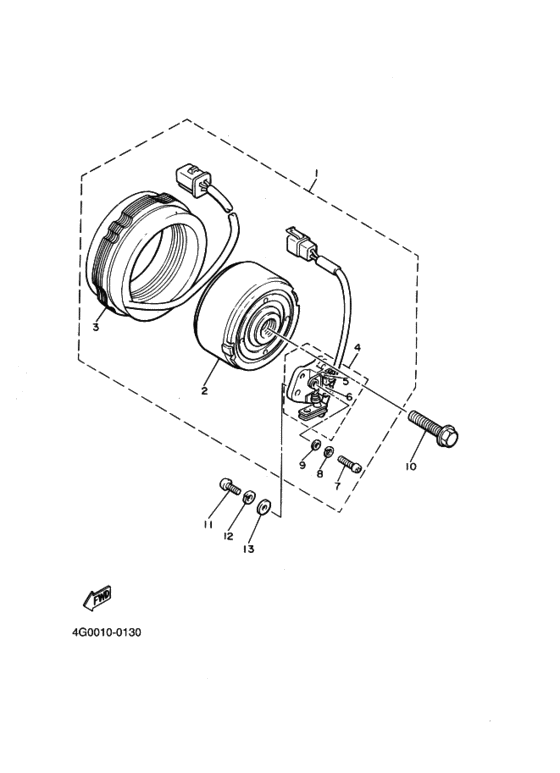

A.c.ｾﾞﾈﾚ-ﾀ Diagram Yamaha XJ400
- Year
- 1981
- Colour
- New Yamaha Black (NYB; 006G)
- Model code
- 5M9
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- XJ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4G0-81600-10-00
Ac Generator Assembly
|
4G0-81600-10-00 |
— | ||
|
2
|
2
4G0-81650-10-00
Rotor Assy
．ロ−タアセンブリ; |
4G0-81650-10-00 |
— | ||
| replacements | |||||
|
2
|
2
999-99999-99-00
Not Available
．ロ−タアセンブリ; |
999-99999-99-00 |
— | ||
|
2
|
2
1UJ-81650-10-00
Rotor assy
．ロ−タアセンブリ; |
1UJ-81650-10-00 |
— | ||
|
2
|
2
2WY-81650-10-00
Rotor Assembly
．ロ−タアセンブリ; |
2WY-81650-10-00 |
— | ||
|
3
|
3
4G0-81610-10-00
Stator Assy
．ステ−タアセンブリ; |
4G0-81610-10-00 |
— | ||
| replacement | |||||
|
3
|
3
2WY-81610-10-00
Stator Assembly
．ステ−タアセンブリ; |
2WY-81610-10-00 |
— | ||
|
4
|
4
4G0-81619-10-00
Brush Holder Assembly
．ブラシホルダアセンブリ; |
4G0-81619-10-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
．ブラシホルダアセンブリ; |
999-99999-99-00 |
— | ||
|
5
|
5
4G0-81611-10-00 Brush 1．．ブラシ １; |
4G0-81611-10-00 |
from US $72.43 |
||
| replacement | |||||
|
5
|
5
46X-81611-10-00
Brush 1
．．ブラシ １; |
46X-81611-10-00 |
— | ||
|
6
|
6
4G0-81612-10-00 Brush 2．．ブラシ ２; |
4G0-81612-10-00 |
from US $21.91 |
||
|
7
|
7
98502-04012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98502-04012-00 |
from US $1.07 |
||
| replacements | |||||
|
7
|
7
98517-04012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-04012-00 |
from US $1.07 |
||
|
7
|
7
985-11040-12-00 Screw, Panhead (4U5)．スクリユ，パンヘツド; |
985-11040-12-00 |
from US $1.07 |
||
|
8
|
8
929-02041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-02041-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
9
|
9
929-01046-00-00
Washer
．ワツシヤ，プレ−ト; |
929-01046-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-90046-00-00 Washer, Plate．ワツシヤ，プレ−ト; |
929-90046-00-00 |
from US $1.07 |
||
|
10
|
10
90105-10152-00 Bolt, Flange |
90105-10152-00 |
from US $9.63 |
||
|
11
|
11
925-02060-16-00
Screw, Pan Head (J10)
|
925-02060-16-00 |
— | ||
| replacement | |||||
|
11
|
11
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
12
|
12
92902-06100-00 Washer, Springワツシヤ，スプリング; |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
92902-06600-00 Washer, Plate |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
