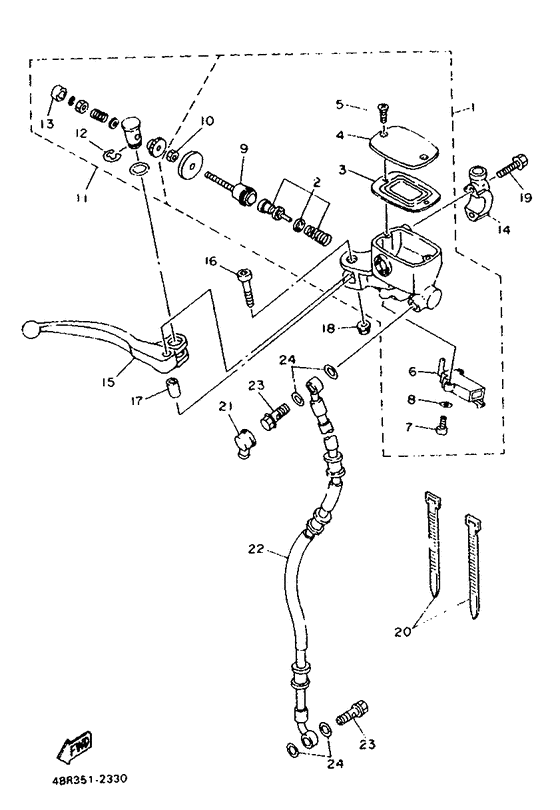

Front master cylinder Diagram Yamaha XJ600 Diversion (S-TYPE)
- Year
- 1992
- Colour
- Vivid Red Cocktail 1 (VRC1; 0121)
- Model code
- 4DS1
- Sales region
- Germany (999)
- Engine Capacity
- 600
- Model
- XJ600S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3YX-W2587-00-00 Master Cylinder Sub Assy |
3YX-W2587-00-00 |
from US $258.16 |
||
| replacement | |||||
|
01
|
01
4BR-W2587-02-00 Master Cylinder Sub Assy |
4BR-W2587-02-00 |
from US $258.16 |
||
|
02
|
02
3YX-W0041-50-00 Cylinder Kit, Master |
3YX-W0041-50-00 |
from US $75.01 |
||
|
03
|
03
3YX-25854-00-00 Diaphragm, Reservoir |
3YX-25854-00-00 |
from US $17.20 |
||
|
04
|
04
3YX-25852-00-00 Cap, Reservoir |
3YX-25852-00-00 |
from US $23.36 |
||
| replacement | |||||
|
04
|
04
4TX-25852-01-00 Cap, Reservoir |
4TX-25852-01-00 |
from US $31.97 |
||
|
05
|
05
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
05
|
05
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
06
|
06
3YX-83980-00-00 Front Stop Switch Assembly |
3YX-83980-00-00 |
from US $22.67 |
||
| replacement | |||||
|
06
|
06
4BH-83980-00-00 Front Stop Switch Assembly |
4BH-83980-00-00 |
from US $24.97 |
||
|
07
|
07
98506-04012-00 Screw, Pan Head |
98506-04012-00 |
from US $1.07 |
||
| replacement | |||||
|
07
|
07
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
08
|
08
92906-04600-00 Washer |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
08
|
08
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
09
|
09
3YX-25880-00-00 Push Rod Comp |
3YX-25880-00-00 |
from US $35.28 |
||
|
10
|
10
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
11
|
11
3YX-W0091-01-00 Screw Kit, Mastercylinder |
3YX-W0091-01-00 |
from US $84.42 |
||
| replacement | |||||
|
11
|
11
3YX-W0091-02-00 Screw Kit, Master Cylinder |
3YX-W0091-02-00 |
from US $84.42 |
||
|
12
|
12
3YX-25866-00-00 Circlip |
3YX-25866-00-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.66 |
||
|
13
|
13
3YX-2583H-00-00 Boot |
3YX-2583H-00-00 |
from US $7.65 |
||
|
14
|
14
3YX-25867-00-00 Bracket, Master Cylinder |
3YX-25867-00-00 |
from US $19.84 |
||
|
15
|
15
3YX-83922-00-00 Lever 2 |
3YX-83922-00-00 |
US $23.85 |
||
| replacement | |||||
|
15
|
15
3YX-83922-09-00 Lever |
3YX-83922-09-00 |
from US $22.53 |
||
|
16
|
16
3YX-2589F-00-00 Bolt, Lever |
3YX-2589F-00-00 |
from US $6.52 |
||
|
17
|
17
3YX-25838-00-00 Sleeve, Caliper |
3YX-25838-00-00 |
from US $12.18 |
||
|
18
|
18
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
19
|
19
950-26060-30-00
Bolt, Flange
|
950-26060-30-00 |
— | ||
| replacements | |||||
|
19
|
19
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.52 |
||
|
19
|
19
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
20
|
20
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
21
|
21
4L0-25862-00-00 Boot, Master Cylinder |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
21
|
21
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
22
|
22
4BP-25872-00-00
Hose,brake 1
|
4BP-25872-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99027-37-00
Hose Brake (4Bp)
|
999-99027-37-00 |
— | ||
|
23
|
23
904-01100-96-00
Bolt, Union
|
904-01100-96-00 |
— | ||
| replacement | |||||
|
23
|
23
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
24
|
24
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
24
|
24
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
