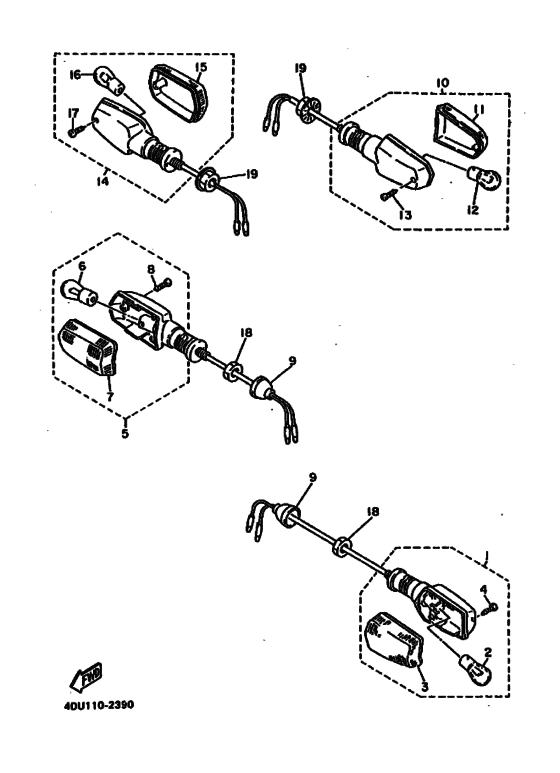

Flasher light (FOR CANADA) Diagram Yamaha XJ600 SECA II
- Year
- 1992
- Colour
- Vivid Red Cocktail 1 (VRC1; 0121)
- Model code
- 4DU3
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- XJ600S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1LJ-83310-20-00 Front Flasher Light Assembly 1 |
1LJ-83310-20-00 |
US $98.24 |
||
|
2
|
2
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
3
|
3
51L-83332-01-00 Lens, Flasher |
51L-83332-01-00 |
from US $10.51 |
||
|
4
|
4
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
5
|
5
1LJ-83320-20-00
Front Flasher Light Assembly 2
|
1LJ-83320-20-00 |
— | ||
|
6
|
6
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
6
|
6
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
6
|
6
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
7
|
7
51L-83342-01-00 Lens, Flasher 2 |
51L-83342-01-00 |
from US $11.36 |
||
|
8
|
8
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
9
|
9
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
9
|
9
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
|
10
|
10
1UF-83330-00-00 Rear Flasher Light Assy 1 |
1UF-83330-00-00 |
from US $82.21 |
||
|
11
|
11
51L-83342-01-00 Lens, Flasher 2 |
51L-83342-01-00 |
from US $11.36 |
||
|
12
|
12
256-83311-70-00 Bulb (12V-27W)12V-27W |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
12
|
12
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
13
|
13
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
14
|
14
1UF-83340-00-00 Rear Flasher Light Assy 2 |
1UF-83340-00-00 |
from US $82.21 |
||
|
15
|
15
51L-83332-01-00 Lens, Flasher |
51L-83332-01-00 |
from US $10.51 |
||
|
16
|
16
256-83311-70-00 Bulb (12V-27W)12V-27W |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
16
|
16
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
17
|
17
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
18
|
18
95303-12600-00 Nut |
95303-12600-00 |
from US $2.13 |
||
| replacement | |||||
|
18
|
18
95304-12600-00 Nut |
95304-12600-00 |
from US $2.13 |
||
|
19
|
19
95701-12500-00 P66 Nut, Flange (1Uv) |
95701-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
19
|
19
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
19
|
19
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
