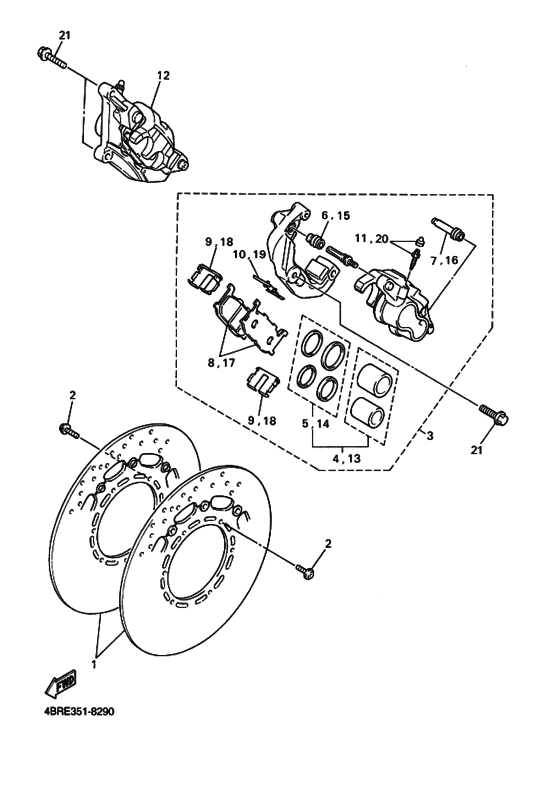

Front brake caliper Diagram Yamaha XJ600 Diversion (Naked)
- Year
- 2000
- Colour
- Dark Cyan Metallic 8 (DCM8; 0679)
- Model code
- 4KEB
- Sales region
- Europe (060)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- XJ600N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3LR-2581T-00-00 Disc Brake Assy |
3LR-2581T-00-00 |
from US $305.55 |
||
| replacement | |||||
|
1
|
1
3LR-2581T-01-00 Disc Brake Assy |
3LR-2581T-01-00 |
from US $383.11 |
||
|
2
|
2
90109-083G4-00 Bolt |
90109-083G4-00 |
US $1.81 |
||
| replacement | |||||
|
2
|
2
901-11080-57-00 Bolt |
901-11080-57-00 |
from US $1.81 |
||
|
3
|
3
4EB-2580T-00-00 Caliper Assy (Left) |
4EB-2580T-00-00 |
US $564.96 |
||
|
4
|
4
4FU-W0057-50-00 Piston Assy, Caliper |
4FU-W0057-50-00 |
from US $105.79 |
||
| replacement | |||||
|
4
|
4
4HC-W0057-50-00 Piston Assy, Caliper |
4HC-W0057-50-00 |
from US $110.11 |
||
|
5
|
5
4FU-W0047-50-00 Caliper Seal Kit |
4FU-W0047-50-00 |
from US $33.29 |
||
| replacement | |||||
|
5
|
5
4HC-25803-50-00 Caliper Seal Kit |
4HC-25803-50-00 |
from US $33.29 |
||
|
6
|
6
5R2-25937-00-00 Boot 2 |
5R2-25937-00-00 |
from US $21.50 |
||
|
7
|
7
3YX-25937-00-00 Boot 2 |
3YX-25937-00-00 |
from US $20.25 |
||
|
8
|
8
4EB-W0045-00-00
Brake Pad Kit
|
4EB-W0045-00-00 |
— | ||
| replacement | |||||
|
8
|
8
5VU-25805-00-00 Brake Pad Kit |
5VU-25805-00-00 |
from US $54.72 |
||
|
9
|
9
4BP-25919-00-00 Support, Pad |
4BP-25919-00-00 |
from US $17.48 |
||
|
10
|
10
3YX-25929-00-00 Spring, Anti Rattle |
3YX-25929-00-00 |
from US $22.20 |
||
|
11
|
11
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
11
|
11
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $9.29 |
||
|
12
|
12
4EB-2580U-00-00 Caliper Assy (Right) |
4EB-2580U-00-00 |
US $488.49 |
||
| replacement | |||||
|
12
|
12
4HM-2580U-00-00 Caliper Assy (Right) |
4HM-2580U-00-00 |
US $488.49 |
||
|
13
|
13
4FU-W0057-50-00 Piston Assy, Caliper |
4FU-W0057-50-00 |
from US $105.79 |
||
| replacement | |||||
|
13
|
13
4HC-W0057-50-00 Piston Assy, Caliper |
4HC-W0057-50-00 |
from US $110.11 |
||
|
14
|
14
4FU-W0047-50-00 Caliper Seal Kit |
4FU-W0047-50-00 |
from US $33.29 |
||
| replacement | |||||
|
14
|
14
4HC-25803-50-00 Caliper Seal Kit |
4HC-25803-50-00 |
from US $33.29 |
||
|
15
|
15
5R2-25937-00-00 Boot 2 |
5R2-25937-00-00 |
from US $21.50 |
||
|
16
|
16
3YX-25937-00-00 Boot 2 |
3YX-25937-00-00 |
from US $20.25 |
||
|
17
|
17
4EB-W0045-00-00
Brake Pad Kit
|
4EB-W0045-00-00 |
— | ||
| replacement | |||||
|
17
|
17
5VU-25805-00-00 Brake Pad Kit |
5VU-25805-00-00 |
from US $54.72 |
||
|
18
|
18
4BP-25919-00-00 Support, Pad |
4BP-25919-00-00 |
from US $17.48 |
||
|
19
|
19
3YX-25929-00-00 Spring, Anti Rattle |
3YX-25929-00-00 |
from US $22.20 |
||
|
20
|
20
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
20
|
20
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $9.29 |
||
|
21
|
21
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
