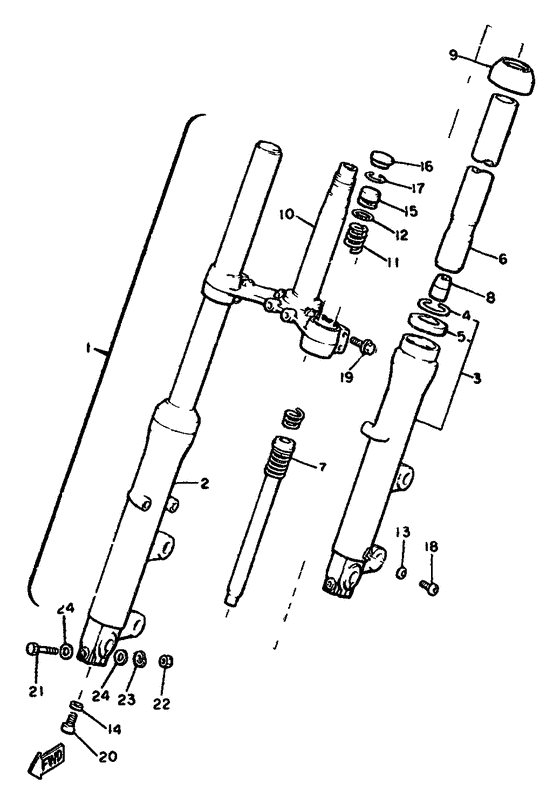

Front fork Diagram Yamaha XJ650
- Year
- 1980
- Model code
- 4K0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 650
- Model
- XJ650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4K0-23101-20-00
Front Fork Assembly
|
4K0-23101-20-00 |
— | ||
|
2
|
2
4K0-23136-00-00
Tube, Outer 2
|
4K0-23136-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
4K0-23126-00-00
Tube, Outer 1
|
4K0-23126-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
5
|
5
3J2-23145-00-00 Oil Seal |
3J2-23145-00-00 |
from US $15.44 |
||
| replacement | |||||
|
5
|
5
4ES-23145-00-00 Oil Seal |
4ES-23145-00-00 |
from US $15.44 |
||
|
6
|
6
4K0-23110-00-00
Inner Tube Comp.1
|
4K0-23110-00-00 |
— | ||
| replacement | |||||
|
6
|
6
4K0-23110-01-00
Inner Tube 1
|
4K0-23110-01-00 |
— | ||
|
7
|
7
4K0-23170-00-00
Cylinder, Frtfrk
|
4K0-23170-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
9
|
9
3J2-23144-00-00 Seal, Dust |
3J2-23144-00-00 |
from US $30.46 |
||
|
10
|
10
4K0-23340-20-00
Under Bracket Comp
|
4K0-23340-20-00 |
— | ||
| replacement | |||||
|
10
|
10
4K0-23340-00-00
Under Bracket
|
4K0-23340-00-00 |
— | ||
|
11
|
11
4K0-23141-00-00
Spring, Front Fork
|
4K0-23141-00-00 |
— | ||
|
12
|
12
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
13
|
13
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
14
|
14
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
15
|
15
3Y1-23111-00-00
Bolt, Cap
|
3Y1-23111-00-00 |
— | ||
|
16
|
16
3Y1-23168-00-00
Cap, Front Fork
|
3Y1-23168-00-00 |
— | ||
|
17
|
17
3J2-23183-00-00 Circlip |
3J2-23183-00-00 |
from US $6.44 |
||
|
18
|
18
122-23119-01-00 Plug, Drain |
122-23119-01-00 |
US $1.56 |
||
| replacements | |||||
|
18
|
18
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
18
|
18
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
19
|
19
90119-08012-00 Bolt, With Washer |
90119-08012-00 |
from US $7.37 |
||
| replacement | |||||
|
19
|
19
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $7.37 |
||
|
20
|
20
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
20
|
20
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
21
|
21
4G0-23356-00-00 Bolt 2 |
4G0-23356-00-00 |
from US $2.41 |
||
| replacement | |||||
|
21
|
21
97017-08060-00 Bolt |
97017-08060-00 |
from US $2.41 |
||
|
22
|
22
95311-08600-00 Nut |
95311-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
22
|
22
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
22
|
22
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
23
|
23
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
24
|
24
90201-08544-00 Washer, Plate |
90201-08544-00 |
US $1.56 |
||
| replacement | |||||
|
24
|
24
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
