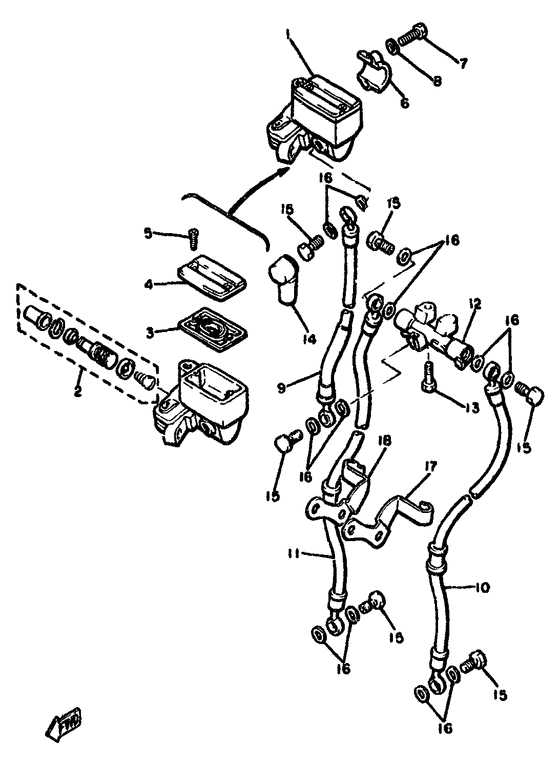

Front master cylinder Diagram Yamaha XJ650
- Year
- 1980
- Model code
- 4K0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 650
- Model
- XJ650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4K0-25850-00-00 Master Cylinder Assy |
4K0-25850-00-00 |
from US $441.94 |
||
| replacement | |||||
|
1
|
1
4G0-25850-01-00 Master Cylinder Assembly |
4G0-25850-01-00 |
from US $441.94 |
||
|
2
|
2
4K0-W0041-00-00 Cylinder Kit,master |
4K0-W0041-00-00 |
from US $51.26 |
||
| replacement | |||||
|
2
|
2
4K0-W0041-50-00 Cylinder Kit, Master |
4K0-W0041-50-00 |
from US $51.26 |
||
|
3
|
3
4K0-25854-00-00
Diaphragm, Reservoir
|
4K0-25854-00-00 |
— | ||
| replacement | |||||
|
3
|
3
4HM-25854-00-00 Diaphragm, Reservoir |
4HM-25854-00-00 |
from US $17.48 |
||
|
4
|
4
4K0-25852-00-00 Cap, Reservoir |
4K0-25852-00-00 |
from US $25.79 |
||
| replacement | |||||
|
4
|
4
3GM-25852-02-00 Cap, Reservoir |
3GM-25852-02-00 |
from US $15.84 |
||
|
5
|
5
98706-04010-00 Screw, Flat Head |
98706-04010-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
98707-04010-00 Screw, Flat Head |
98707-04010-00 |
from US $1.70 |
||
|
6
|
6
4L0-25867-00-00 Holder |
4L0-25867-00-00 |
from US $18.42 |
||
|
7
|
7
97326-06025-00 Bolt |
97326-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
9
|
9
4K0-25872-00-00
Hose, Brake 1
|
4K0-25872-00-00 |
— | ||
|
10
|
10
4K0-25873-00-00
Hose, Brake 2
|
4K0-25873-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
4K0-25874-00-00
Hose, Brake
|
4K0-25874-00-00 |
— | ||
|
12
|
12
4K0-25885-00-00
Joint
|
4K0-25885-00-00 |
— | ||
|
13
|
13
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
13
|
13
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
14
|
14
4K0-25862-01-00 Boot, Master Cylinder |
4K0-25862-01-00 |
US $10.34 |
||
| replacement | |||||
|
14
|
14
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
15
|
15
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
15
|
15
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
16
|
16
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
16
|
16
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
17
|
17
4E2-25875-00-00 Holder, Brke Hose 1 |
4E2-25875-00-00 |
US $32.62 |
||
|
18
|
18
4E2-25876-00-00
Holder, Brke Hose 2
|
4E2-25876-00-00 |
— | ||
