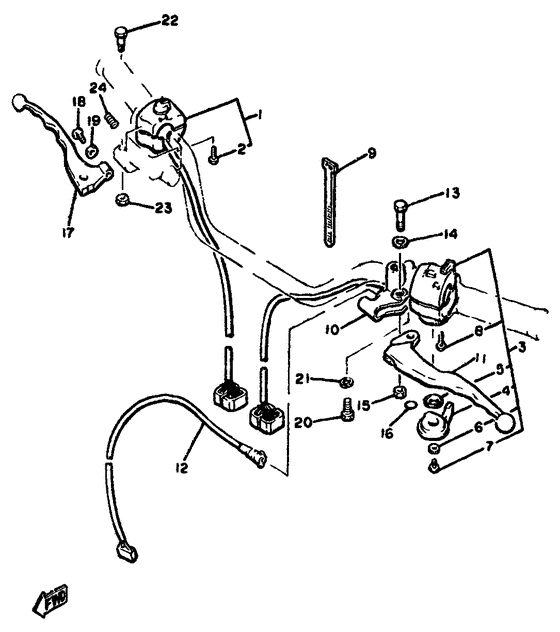

Handle switch & lever Diagram Yamaha XJ650
- Year
- 1980
- Model code
- 4K0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 650
- Model
- XJ650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1U3-83963-40-00
Switch, Handle 3
|
1U3-83963-40-00 |
— | ||
| replacement | |||||
|
1
|
1
2K1-83963-40-98
Switch, Handle
|
2K1-83963-40-98 |
— | ||
|
2
|
2
985-01050-40-00
Screw, Pan Head
|
985-01050-40-00 |
— | ||
| replacements | |||||
|
2
|
2
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
2
|
2
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
3
|
3
4K0-83972-00-00
Switch, Handle 4
|
4K0-83972-00-00 |
— | ||
| replacement | |||||
|
3
|
3
4V8-83972-00-00
Switch, Handle 4
|
4V8-83972-00-00 |
— | ||
|
4
|
4
4H7-83941-00-00
Lever, Starter
|
4H7-83941-00-00 |
— | ||
|
5
|
5
90209-10131-00 Washer |
90209-10131-00 |
from US $1.84 |
||
|
6
|
6
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
7
|
7
97323-06008-00 Bolt |
97323-06008-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
90101-06576-00 Bolt |
90101-06576-00 |
from US $1.70 |
||
|
8
|
8
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
8
|
8
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
8
|
8
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
9
|
9
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
9
|
9
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
10
|
10
4K0-82911-00-00 Holder, Lever 1 |
4K0-82911-00-00 |
from US $31.03 |
||
| replacement | |||||
|
10
|
10
3Y6-82911-00-00 Holder, Lever 1 |
3Y6-82911-00-00 |
from US $31.03 |
||
|
11
|
11
2H7-83912-00-00 Lever 1 |
2H7-83912-00-00 |
US $19.69 |
||
| replacement | |||||
|
11
|
11
2H0-83912-31-00 Lever 1 |
2H0-83912-31-00 |
from US $19.69 |
||
|
12
|
12
3Y6-82917-00-00 Front Stop Switch Assy |
3Y6-82917-00-00 |
US $23.80 |
||
| replacement | |||||
|
12
|
12
5H0-83980-09-00 Front Stop Switch Assy |
5H0-83980-09-00 |
from US $28.02 |
||
|
13
|
13
2H7-83945-00-00
Bolt
|
2H7-83945-00-00 |
— | ||
| replacements | |||||
|
13
|
13
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
13
|
13
90109-06798-00 Bolt |
90109-06798-00 |
from US $2.36 |
||
|
14
|
14
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
15
|
15
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
16
|
16
93210-11368-00 O-Ring (2H7) |
93210-11368-00 |
from US $3.54 |
||
|
17
|
17
2J2-83922-00-00 Lever 2 |
2J2-83922-00-00 |
from US $23.09 |
||
| replacement | |||||
|
17
|
17
4L0-83922-00-00 Lever Rh |
4L0-83922-00-00 |
from US $23.09 |
||
|
18
|
18
90149-06131-00 Screw |
90149-06131-00 |
from US $2.08 |
||
|
19
|
19
90170-06010-00 Nut |
90170-06010-00 |
from US $2.35 |
||
|
20
|
20
97306-06022-00 Bolt |
97306-06022-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
97007-06022-00 Bolt |
97007-06022-00 |
from US $1.56 |
||
|
21
|
21
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
22
|
22
90109-06465-00 Bolt |
90109-06465-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
23
|
23
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
23
|
23
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
24
|
24
90501-10510-00 Spring, Compression |
90501-10510-00 |
from US $2.83 |
||
